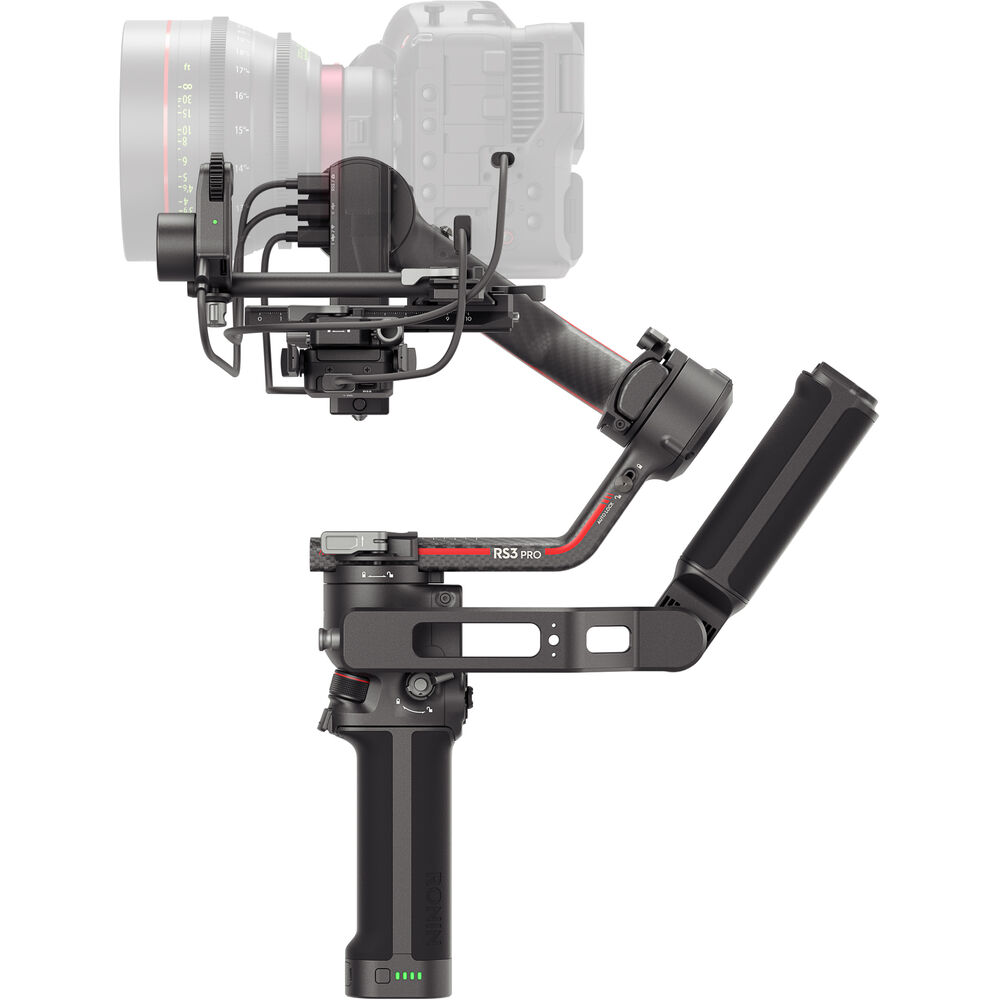

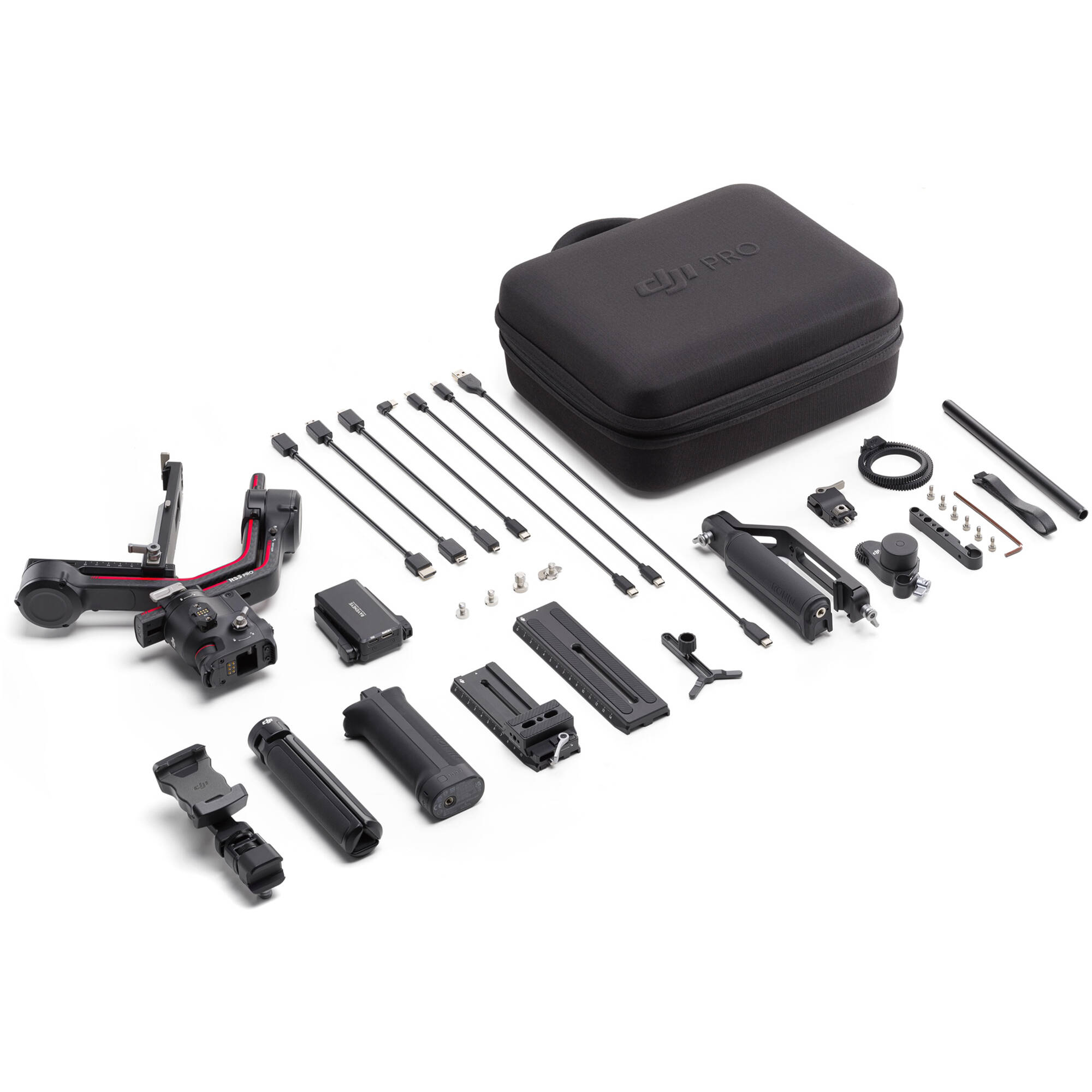

DJI RS 3 Pro Gimbal Combo Stabilizer
Нема на залиха
65.980,00 ден.
24 рати x 2.907,00 ден.
- 599270617
- 24 месеци
- Фото, видео, дронови и опрема
• Peripheral
-Accessory Port:
RSA/NATO Ports
1/4"-20 Mounting Hole
Cold Shoe
Video Transmission/LiDAR Range Finder Port (USB-C)
RSS Camera Control Port (USB-C)
Focus Motor Port (USB-C)
-Battery:
Model: BG30-1950 mAh-15.4V
Type: LiPo 4S
Capacity: 1950 mAh
Energy: 30 Wh
Max. Runtime: 12 hours
Charging Time: Approx. 1.5 hours
Suggested Charging Temperature: 5° to 40° C (41° to 104° F)
Connections: Bluetooth 5.0, Charging Port (USB-C)
Ronin App Requirements: iOS 11.0 or above, Android 7.0 or above
• Working Performance
Tested Payload: 4.5 kg (10 lbs)
Maximum Controlled Rotation Speed: Pan: 360°/s, Tilt: 360°/s, Roll: 360°/s
Mechanical Range: Pan axis: 360° continuous rotation, Roll axis: -95° to +240°, Tilt axis: -112° to +214°
• Mechanical & Electrical Characteristics
Operating Temperature: -20° to 45° C (-4° to 113° F)
Weight: Gimbal: Approx. 1,143 g (2.51 lbs), Grip: Approx. 265 g (0.58 lbs)
Extended Grip/Tripod (Metal): Approx. 226 g (0.49 lbs)
Upper and Lower Quick-Release Plates: Approx. 107 g (0.23 lbs)
-Gimbal Dimensions
Folded: 268×276×68 mm (L×W×H, excluding camera, grip, and the Extended Grip/Tripod)
Unfolded: 415×218×195 mm (L×W×H, height includes grip and excludes the Extended Grip/Tripod)
• DJI Ronin Image Transmitter
Connections: Power/Communication Port (USB-C), HDMI Port (Mini HDMI), RSS Camera Control Port (USB-C)
Expansion Port: Cold Shoe
Weight: 126 g (0.27 lbs)
Dimensions Length: 82×63×24 mm (L×W×H)
• Battery
Capacity: 2970 mAh
Compatible Charger: 5 V/2 A
Charging Time: Approx. 2.5 hours
Operating Time: Approx. 3.5 hours
Transmission Range: 200 m (SRRC/FCC), 100 m (CE)
Latency: 60 ms
Operating Current/Voltage: 900 mA/3.7 V
Operating Temperature: 0° to 45° C (32° to 113° F)
• DJI LiDAR Range Finder (RS)
-Accessory Port:
Cold Shoe
1/4"-20 Mounting Hole
USB-C Port
USB-C Power/CVBS/CAN Data Port
-Image Sensor:
Resolution: 448×298 on the RS touchscreen
FOV: 57.4° (horizontal), 44.6° (vertical), 70.1° (diagonal)
Frame Rate: 30fps
Focal Length: 30mm Equivalent
-ToF Sensor:
Resolution: 240×180
Sensing Range: 0.5 to 14 m [3]
FOV: 57.4° (horizontal), 44.6° (vertical), 70.1° (diagonal)
Frequency: 25 Hz
Focal Length: 30mm equivalent
Distance Error: 1%
-Machine Learning:
Frequency: 30 Hz
Tracking Subjects: Can recognize up to five subjects at the same time, and choose one to follow
Smart Object Identification: Human face, head, and body
-Electrical Properties:
Power Consumption: 6.8 W
Input: 7 to 16 V
Operating Temperature: -20° to 45° C (-4° to 113° F)
-Mechanical Properties:
Dimensions: 66×57×24 mm (L×W×H)
Weight: Approx. 130 g (0.28 lbs)
Mounting Plate Height: 30 mm
-Lenses that Do Not Need Calibration
DZOFILM Vespid Cyber 35 mm
DZOFILM Vespid Cyber 50 mm
DZOFILM Vespid Cyber 75 mm
-Accessory Port:
RSA/NATO Ports
1/4"-20 Mounting Hole
Cold Shoe
Video Transmission/LiDAR Range Finder Port (USB-C)
RSS Camera Control Port (USB-C)
Focus Motor Port (USB-C)
-Battery:
Model: BG30-1950 mAh-15.4V
Type: LiPo 4S
Capacity: 1950 mAh
Energy: 30 Wh
Max. Runtime: 12 hours
Charging Time: Approx. 1.5 hours
Suggested Charging Temperature: 5° to 40° C (41° to 104° F)
Connections: Bluetooth 5.0, Charging Port (USB-C)
Ronin App Requirements: iOS 11.0 or above, Android 7.0 or above
• Working Performance
Tested Payload: 4.5 kg (10 lbs)
Maximum Controlled Rotation Speed: Pan: 360°/s, Tilt: 360°/s, Roll: 360°/s
Mechanical Range: Pan axis: 360° continuous rotation, Roll axis: -95° to +240°, Tilt axis: -112° to +214°
• Mechanical & Electrical Characteristics
Operating Temperature: -20° to 45° C (-4° to 113° F)
Weight: Gimbal: Approx. 1,143 g (2.51 lbs), Grip: Approx. 265 g (0.58 lbs)
Extended Grip/Tripod (Metal): Approx. 226 g (0.49 lbs)
Upper and Lower Quick-Release Plates: Approx. 107 g (0.23 lbs)
-Gimbal Dimensions
Folded: 268×276×68 mm (L×W×H, excluding camera, grip, and the Extended Grip/Tripod)
Unfolded: 415×218×195 mm (L×W×H, height includes grip and excludes the Extended Grip/Tripod)
• DJI Ronin Image Transmitter
Connections: Power/Communication Port (USB-C), HDMI Port (Mini HDMI), RSS Camera Control Port (USB-C)
Expansion Port: Cold Shoe
Weight: 126 g (0.27 lbs)
Dimensions Length: 82×63×24 mm (L×W×H)
• Battery
Capacity: 2970 mAh
Compatible Charger: 5 V/2 A
Charging Time: Approx. 2.5 hours
Operating Time: Approx. 3.5 hours
Transmission Range: 200 m (SRRC/FCC), 100 m (CE)
Latency: 60 ms
Operating Current/Voltage: 900 mA/3.7 V
Operating Temperature: 0° to 45° C (32° to 113° F)
• DJI LiDAR Range Finder (RS)
-Accessory Port:
Cold Shoe
1/4"-20 Mounting Hole
USB-C Port
USB-C Power/CVBS/CAN Data Port
-Image Sensor:
Resolution: 448×298 on the RS touchscreen
FOV: 57.4° (horizontal), 44.6° (vertical), 70.1° (diagonal)
Frame Rate: 30fps
Focal Length: 30mm Equivalent
-ToF Sensor:
Resolution: 240×180
Sensing Range: 0.5 to 14 m [3]
FOV: 57.4° (horizontal), 44.6° (vertical), 70.1° (diagonal)
Frequency: 25 Hz
Focal Length: 30mm equivalent
Distance Error: 1%
-Machine Learning:
Frequency: 30 Hz
Tracking Subjects: Can recognize up to five subjects at the same time, and choose one to follow
Smart Object Identification: Human face, head, and body
-Electrical Properties:
Power Consumption: 6.8 W
Input: 7 to 16 V
Operating Temperature: -20° to 45° C (-4° to 113° F)
-Mechanical Properties:
Dimensions: 66×57×24 mm (L×W×H)
Weight: Approx. 130 g (0.28 lbs)
Mounting Plate Height: 30 mm
-Lenses that Do Not Need Calibration
DZOFILM Vespid Cyber 35 mm
DZOFILM Vespid Cyber 50 mm
DZOFILM Vespid Cyber 75 mm
