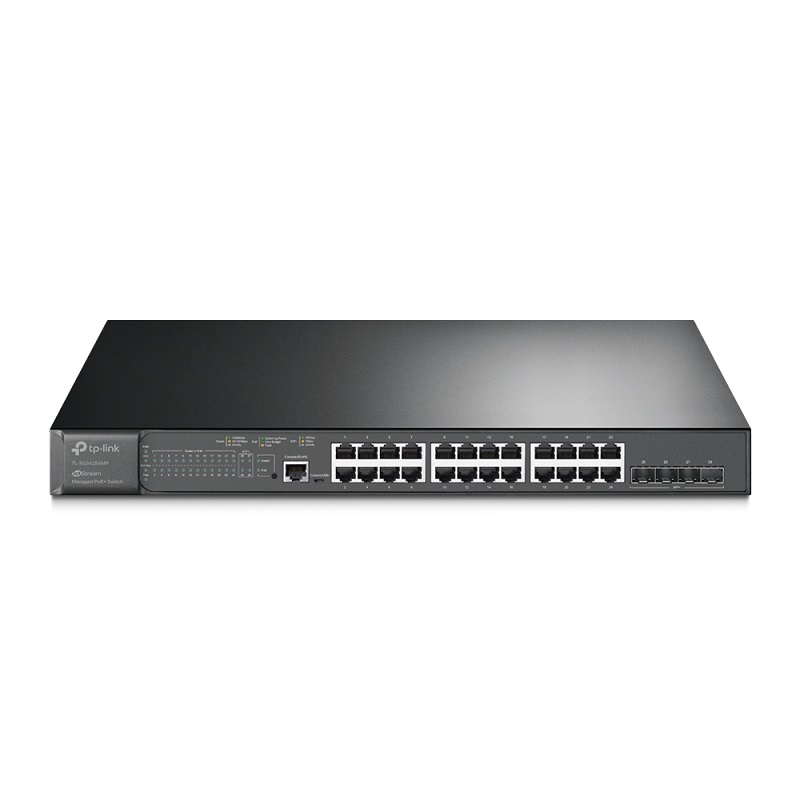

TP-Link Switch 24port Gigabit + 4x10GE SFP Layer 2 Managed TL-SG3428XMP
Нема на залиха
32.480,00 ден.
24 рати x 1.431,00 ден.
- 599880983
- 24 месеци
- Мрежа, алати, кабли и адаптери
• 10G Lightning-Fast Uplink: 4× 10 Gbps SFP+ slots enable high-bandwidth connectivity and non-blocking switching capacity.
• 384 W PoE Budget: 24× 802.3at/af-compliant PoE+ ports with a total power supply of 384 W*.
• Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.
• Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
• Static Routing: Helps route internal traffic for more efficient use of network resources.
• Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
• Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
• Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities.
Specifications
HARDWARE FEATURES
Interface:
• 24× 10/100/1000 Mbps RJ45 Ports
• 4× 10G SFP+ Slots
• 1× RJ45 Console Port
• 1× Micro-USB Console Port
Fan Quantity: 2
Power Supply: 100-240 V AC~50/60 Hz
PoE Ports (RJ45):
• Standard: 802.3at/af compliant
• PoE+ Ports: 24 Ports, up to 30 W per port
• Power Budget: 384 W
Dimensions ( W x D x H ): 17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm)
Mounting: Rack Mountable
Max. Power Consumption:
• V1: 465.8 W (110V/60Hz) ( with 384 W PD device connected); 34.4 W (110V/60Hz) ( no PD device connected)
• V2: 455.5 W (110V/60Hz) ( with 384 W PD connected)
Max Heat Dissipation:
• V1: 1589.31 BTU/h (110 V/60 Hz) (with 384 W PD device connected); 117.38 BTU/h (110 V/60 Hz) (no PD device connected)
• V2: 1554.39 BTU/hr (110 V/60 Hz) (with 384 W PD connected)
PERFORMANCE
Switching Capacity: 128 Gbps
Packet Forwarding Rate: 95.23 Mpps
MAC Address Table: 16 K
Packet Buffer Memory: 12 Mbit
Jumbo Frame: 9 KB
SOFTWARE FEATURES
Quality of Service:
• 8 priority queues
• 802.1p CoS/DSCP priority
• Queue scheduling
• SP (Strict Priority)
• WRR (Weighted Round Robin)
• SP+WRR
• Bandwidth Control
• Port/Flow based Rating Limiting
• Smoother Performance
• Action for Flows
• Mirror (to supported interface)
• Redirect (to supported interface)
• Rate Limit
• QoS Remark
L3 Features:
• 128 IPv4/IPv6 Interfaces
• Static Routing
• 48 static routes
• Static ARP
• 128 Static Entries
• Proxy ARP
• Gratuitous ARP
• DHCP Server
• DHCP Relay
• DHCP Interface Relay
• DHCP VLAN Relay
• DHCP L2 Relay
Advanced Features:
• Automatic Device Discovery
• Batch Configuration
• Batch Firmware Upgrading
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
Security:
• IP-MAC-Port Binding
• 512 Entries
• DHCP Snooping
• ARP Inspection
• IPv4 Source Guard: 100 Entries
• IPv6-MAC-Port Binding
• 512 Entries
• DHCPv6 Snooping
• ND Detection
• IPv6 Source Guard: 100 Entries
• DoS Defend
• Static/Dynamic Port Security
• Up to 64 MAC addresses per port
• Broadcast/Multicast/Unicast Storm Control
• kbps/ratio control mode
• 802.1X
• Port base authentication
• Mac base authentication
• VLAN Assignment
Management Features
Omada App: Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Management Features:
• Web-based GUI
• Command Line Interface (CLI) through the console port, telnet
• SNMP v1/v2c/v3
• Trap/Inform
• RMON (1,2,3,9 groups)
• SDM Template
• DHCP/BOOTP Client
• 802.1ab LLDP/LLDP-MED
• DHCP AutoInstall
• Dual Image, Dual Configuration
• CPU Monitoring
• Cable Diagnostics
• EEE
• Password Recovery
• SNTP
• System Log
OTHERS
Package Content: • TL-SG3428XMP Switch
• Power Cord
• Quick Installation Guide
• Rackmount Kit
• Rubber Feet
System Requirements: Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
