• Super-Fast 1.8 Gbps Wi-Fi – Enjoy smooth 4K streaming and downloading with super-fast Wi-Fi speeds of 1.8 Gbps.
• Connect More Devices – Communicates with more devices using OFDMA while simultaneously reducing lag.
• Broader Coverage – Improved algorithm, beamforming, and high-performance antennas enhance the Wi-Fi coverage performance.
• Next-Gen Platform – The Next-Gen High-Efficiency Chipset provides fast and stable Wi-Fi while saving power consumption.
• Parental Controls – Enjoy the most versatile yet free parental controls features among all routers, including URL blocking, profile management, pausing, and more.
• Works with Most ISPs – Compatible with most ISPs with extra L2TP/PPTP support. IPTV support works with your existing TV over the Internet contract.
• EasyMesh-Compatible - Flexibly creates a Mesh network by connecting to an EasyMesh-compatible router for seamless whole-home coverage
• Easy Setup – Set up your router in minutes with the powerful TP-Link Tether App.
• Backward Compatible – Supports all previous 802.11 standards Wi-Fi devices.
Specifications
WIRELESS
Standards and Protocols:
Wi-Fi 6:
• IEEE 802.11ax/ac/n/a 5 GHz
• IEEE 802.11ax/n/b/g 2.4 GHz
WiFi Speeds:
AX1800:
• 5 GHz: 1201 Mbps (802.11ax)
• 2.4 GHz: 574 Mbps (802.11ax)
WiFi Range:
2-3 Bedroom Houses:
• 4× Fixed High-Performance Antennas
• Multiple antennas form a signal-boosting array to cover more directions and large areas
Beamforming: Concentrates wireless signal strength towards clients to expand WiFi range
WiFi Capacity:
High:
• Dual-Band
• Allocate devices to different bands for optimal performance
Airtime Fairness: Improves network efficiency by limiting excessive occupation
4 Streams: Connect your devices to more bandwidth
Working Modes: Router Mode; Access Point Mode
SECURITY
Network Security: SPI Firewall; Access Control; IP & MAC Binding; Application Layer Gateway
Guest Network:
• 1× 5 GHz Guest Network
• 1× 2.4 GHz Guest Network
VPN Server:
• OpenVPN Server
• PPTP VPN Server
• WireGuard VPN Server
VPN Client:
• OpenVPN Client
• PPTP VPN Client
• WireGuard VPN Client
WiFi Encryption: WPA; WPA2; WPA3; WPA/WPA2-Enterprise (802.1x)
HARDWARE
Ethernet Ports:
• 1× Gigabit WAN Port
• 4× Gigabit LAN Ports
Buttons: WPS/Wi-Fi Button; Power On/Off Button; Reset Button
Power: 12 V ⎓ 1 A
SOFTWARE
Protocols: IPv4; IPv6
EasyMesh
Parental Controls: URL Filtering; Time Controls
WAN Types: Dynamic IP; Static IP; PPPoE; PPTP; L2TP
Quality of Service: QoS by Device
Cloud Service: OTA Firmware Upgrade; TP-Link ID; DDNS
NAT Forwarding: Port Forwarding; Port Triggering; DMZ; UPnP
IPTV: IGMP Proxy; IGMP Snooping; Bridge; Tag VLAN
DHCP: Address Reservation; DHCP Client List; Server
DDNS: TP-Link; NO-IP; DynDNS
Management Features: Tether App; Webpage
OTHER
Network Services Enabled by Default:
Web Server:
Manage and configure device through web (HTTP/HTTPS)
• Port: 80/443 Protocol: TCP
DNS
DNS
• Port: 53 Protocol: TCP & UDP
DHCP Server
IP address assignment (DHCP)
• Port: 67 Protocol: UDP
App management
Manage and configure device through app
• Port: 20001 Protocol: TCP
• Port: 30001 Protocol: TCP
• Port: 20002 Protocol: UDP
System Requirements: Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Cable or DSL Modem (if needed)
Subscription with an internet service provider (for internet access)
PHYSICAL
Dimensions (W×D×H): 10.2 × 5.3 ×1.5 in (260.2 × 135.0 × 38.6 mm)
Package Content:

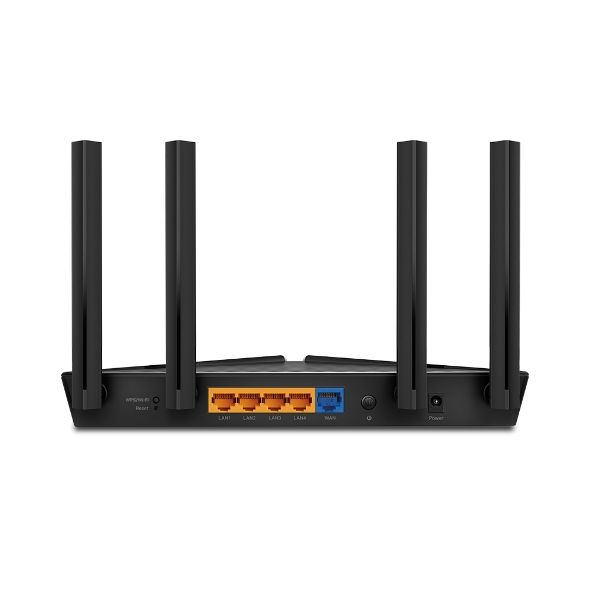

• Wi-Fi Router Archer AX23
• Power Adapter
• RJ45 Ethernet Cable
• Quick Installation Guide
