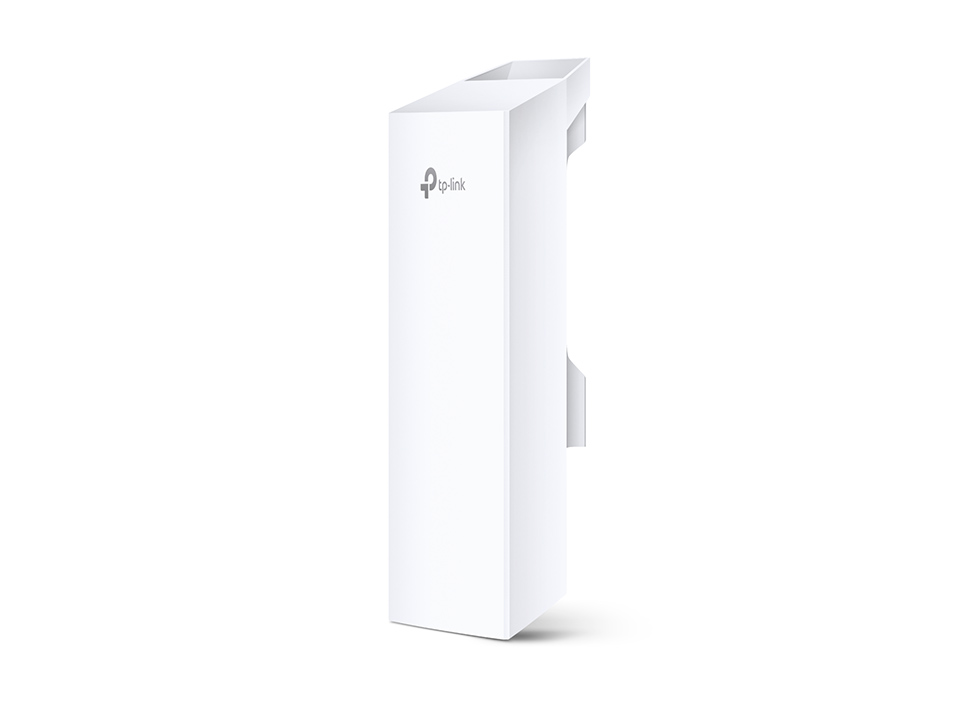

TP-Link Wireless N Range Extender 300Mbps CPE210 Outdoor CPE 5km Long Range 5GHz
Нема на залиха
2.980,00 ден.
24 рати x 132,00 ден.
- 599872944
- 24 месеци
- Мрежа, алати, кабли и адаптери
• Built-in 9dBi 2x2 dual-polarized directional MIMO antenna
• Adjustable transmission power from 0 to 25dBm/500mw
• System-level optimizations for more than 5km long-range wireless transmission
• TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications
• Centralized Management System – Pharos Control
• AP / Client / AP Router / AP Client Router (WISP) operation modes
• Passive PoE Adapter supports up to 60 meters (200 feet) Power over Ethernet deployment and allows the device to be reset remotely
Specifications
HARDWARE FEATURES
Processor: Qualcomm Atheros 560MHz CPU, MIPS 74Kc
Memory: 64MB DDR2 RAM, 8MB Flash
Interface:
• 1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in)
• 1 Grounding Terminal
• 1 Reset Button
Power Supply: Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins)
Voltage range: 16-27VDC
Max. Power Consumption: 5 Watts Max (Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable).
Dimensions ( W x D x H ): 224 x 79 x 60 mm
Antenna:
• Built-in 9dBi 2x2 Dual-polarized Directional Antenna
• Beam Width: 65° (H-Plane) / 40° (E-Plane)
• Note: For more details, please refer to datasheet
Protection:
• 15KV ESD Protection
• 6KV Lightning Protection
Enclosure:
• Outdoor ASA stabilized plastic material
• IPX5 waterproof Certification
WIRELESS FEATURES
Wireless Standards: IEEE 802.11b/g/n (with Pharos MAXtream disabled)
Proprietary Protocol: TDMA Mode (with Pharos MAXtream enabled)
Wireless Speeds:
• Up to 300Mbps (40MHz,Dynamic)
• Up to 144.4Mbps (20MHz,Dynamic)
• Up to 72.2Mbps (10MHz,Dynamic)
• Up to 36.1Mbps (5MHz,Dynamic)
Frequency:
• 2.4~2.483GHz
Transmission Power:
• 25dBm/316mw (Adjustable power by 1dBm)
SOFTWARE FEATURES
Wireless Configurations:
• Pharos MAXtream TDMA Technology
• 802.11b/g/n Modes
• Selectable Channel Width: 5/10/20/40MHz
• Automatic Channel Selection
• Transmission Power Control
• Dynamic Frequency Selection (DFS)
• WDS Enable/Disable
Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption
• SSID Broadcast Enable/Disable
• Multi-SSID with VLAN Tagging (AP mode only)
• Distance/ACK Timeout Setting
• Wireless MAC Address Filter
Wireless Advanced:
• Beacon Interval/RTS Threshold/Fragmentation
• Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia
Management Features:
• Discovery and Remote Management via Pharos Control application
• HTTP/HTTPS Web-based management
• System Log
• SNMP Agent(v2c)
• Ping Watch Dog
• Dynamic DDNS
• SSH Server
• System Tools: Wireless Signal
Quality Indicators:
• Signal Strength/Noise/Transmit CCQ/CPU/Memory
• Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP
• Spectrum Analyzer
• Speed Test
• Ping
• Traceroute
System-level Optimizations: Optimized IGMP Snooping/Proxy for multicast applications
• Hardware watch dog
POE ADAPTER FEATURES
Dimensions(W x D x H): 85.8×43.9×29.7 mm
Interfaces:
• 1 AC Jack with Earth Ground
• 1 10/100Mbps Shielded Ethernet Port (Power + Data)
• 1 10/100Mbps Shielded Ethernet Port (Data)
Button: Remote Reset Button
Power Status LEDs: Green
Input: 100-240VAC, 50/60Hz
Output:
• V2.0: 24VDC, 0.6A Max
• V3.0: 24VDC, 0.5A Max
• V3.20: 24VDC, 0.25A Max
• +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)
OTHERS
Package Content:
• Outdoor Wireless CPE
• 24V 0.6A Passive PoE Adapter
• Pole Mounting Straps
• AC Power Cord
• Installation Guide
System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
