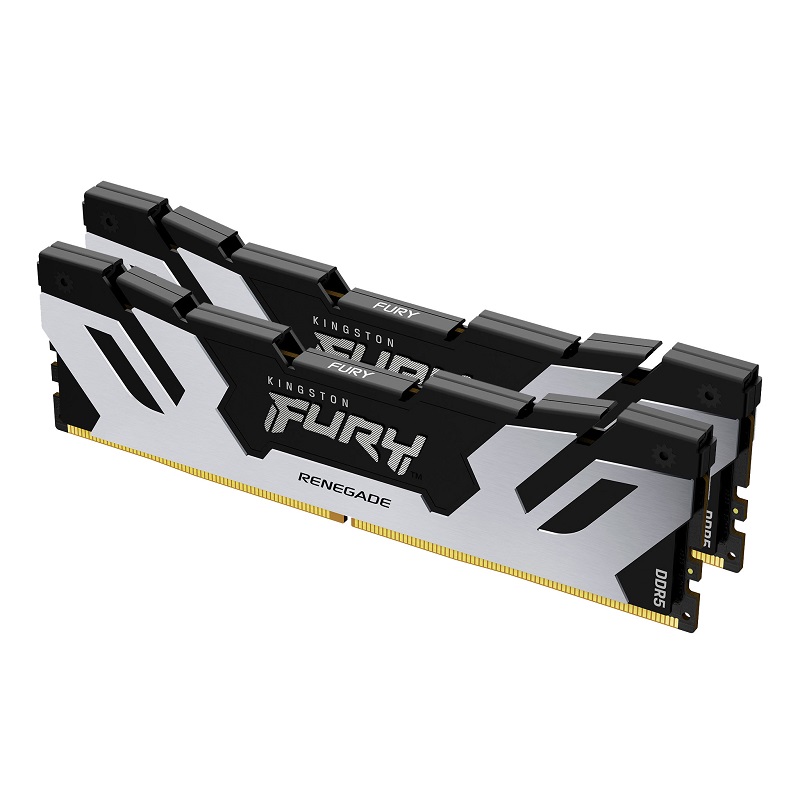

Kingston FURY KF572C38RSK2-48 is a kit of two 3G x 64-bit
(24GB) DDR5-7200 CL38 SDRAM (Synchronous DRAM) 1Rx8,
memory module, based on eight 3G x 8-bit FBGA components per
module. Each module kit supports Intel® Extreme Memory
Profiles (Intel® XMP) 3.0. Total kit capacity is 48GB. Each
module has been tested to run at DDR5-7200 at a low latency timing
of 38-44-44 at 1.45V. The SPDs are programmed to JEDEC
standard latency DDR5-4800 timing of 40-39-39 at 1.1V.
Each 288-pin DIMM uses gold contact fingers. The JEDEC
standard electrical and mechanical specifications are as
follows:
CL(IDD): 40 cycles
Row Cycle Time (tRCmin): 48ns(min.)
Refresh to Active/Refresh/Command Time (tRFCmin): 295ns(min.)
Row Active Time (tRASmin): 32ns(min.)
UL Rating: 94 V - 0
Operating Temperature: - 0°C to +85°C
Storage Temperature: - -55°C to +100°C
