8.480,00 ден.
24 рати x 374,00 ден.
- 747069428
- 24 месеци
- Мрежа, алати, кабли и адаптери

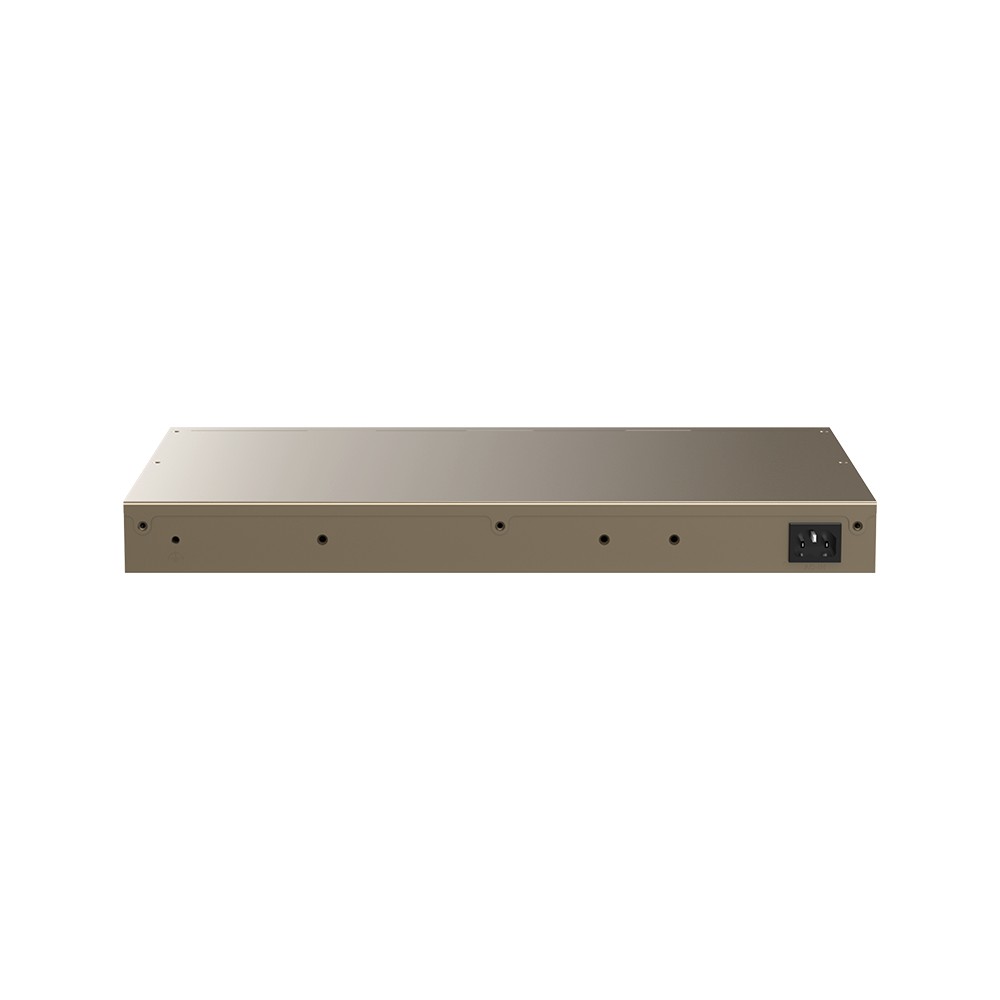

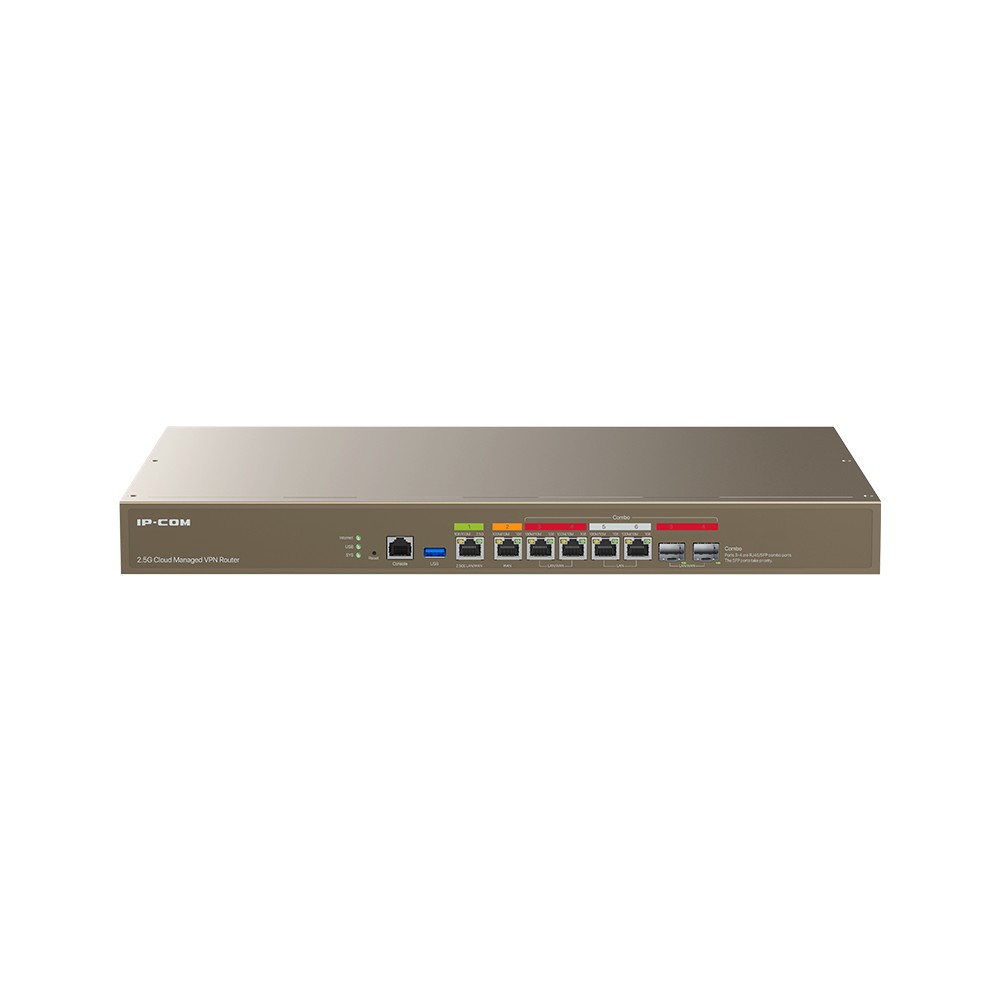

M50-F
2.5G Cloud Managed VPN Router
- Tri-core 1.25GHz CPU
- Support 300 end devices to work online at high speed
- Provide 1x2.5Gbps ethernet port，2xSFP ports and 5 Gigabit ethernet port
- Multi WAN support bandwidth stacking with 4 broadband lines
M50-F is IP-COM 2.5G Cloud Managed VPN Router M50-F is specially designed for small and medium-sized enterprises. Using a high-performance, network-dedicated 3-core processor, the forwarding speed can reach up to 2.5Gbps. M50-F comes with a series of advanced features (PPPoE, VPN, captive portal, flow control, multi-WAN, load balancing, controller mode, wireless optimization), and makes it easy to implement intelligent network access and management.
Mechanical
Dimensions: 440*285*44
Weight: 2670g
Enclosure materials: SGCC
Hardware
Processor: RSIC-V Triple Core1.25GHz
Memory information: 512MB
Networking interface: 1*2.5GE RJ45+5*GE RJ45 +2*SFP（combo）
USB: 1*USB2.0
Power method: AC 100-240V
Power supply: Built-in power
Max. power consumption: 16W
Button: Reset
Operating temperature: Operating Temperature: -10℃-45°C
Operating humidity: Operating Humidity: 10%-90% RH, non-condensing
Certifications: CE.FCC.RoHS
Performance
Max. Client Capacity: 400
Recommended Client Capacity: 300
Recommended broadband: 2500Mbps
Max. New Sessions: 13000
Max. Concurrent Sessions: 140000
NAT (Static IP): 2870Mbps/2863Mbps
NAT(DHCP): 2855Mbps/2847Mbps
NAT(PPPoE): 2740Mbps/2782Mbps
AP Management: Router mode: 256; AC mode: 512
VLAN: 16
Gateway Features
Operating Mode: Router& Pure AC
AP Management: Support
DHCP Server: User DHCP Server,AP DHCP Server,DHCP Reservation,Excluded IP Address
Wireless Policy: AP Group,Guest Wi-Fi,Wi-Fi Schedule,Wi-Fi Optimization,Scheduled Optimization
Fast roaming: 802.11k,v,r
IPTV: IPTV Policy
ACL: IP Filtering,MAC Filtering,Port Filtering,URL Filtering,Wireless MAC Filtering,User Filtering
Bandwidth Control: Group Limit,Single User Limit
VPN: IPSec, PPTP, L2TP
Virtual Server: DMZ,DDNS,DNS&IP Hijacking,UPNP,Interface Mirroring,Port Mapping,DNS Cache
PPPoE server: Support
captive portal: Support(web.e-mail.SMS.Random Code)
IPV6: Support
WAN Load Balancing: Intelligent Load Balancing, Customize
Routing: Static Routing, Policy Routing
Security: IP-MAC binding, Block Ping from WAN, DDoS Attack Defense, ARP Attack Defense, Binary Association
System Tools: ntp,Scheduled reboot, Diagnosis
system log: system log, Operating log, Running log
System Account: Administrator, Visitor, Login IP Address Limit
Upgrade: Local, Online
Maintenance: Restore, Backup, Remote WEB Management
Network Diagnosis: Network Diagnosis,Client Detection,WAN Diagnosis,Network Monitoring
Management: http/https, Profi Cloud, Profi APP
LEDs
SYS:
- Blinking: The router is working properly.
- Solid on: The router is starting up.
- Off: The router is not started.
Link:
Left indicator for 2.5GE port:
- Solid yellow: The port negotiates at 100/1000 Mbps.
- Blinking yellow: Data is being transmitted over the port.
- Off: No device is connected to the port.
Right indicator for 2.5GE port:
- Solid green: The port negotiates at 2.5 Gbps.
- Blinking green: Data is being transmitted over the port.
- Off: No device is connected to the port.
Left indicator for 1GE port:
- Solid yellow: The port negotiates at 10/100 Mbps.
- Blinking yellow: Data is being transmitted over the port.
- Off: No device is connected to the port.
Right indicator for 1GE port:
- Solid green: The port negotiates at 1 Gbps.
- Blinking green: Data is being transmitted over the port.
- Off: No device is connected to the port.
Indicator for SFP port:
- Solid on: The port is connected properly.
- Blinking: Data is being transmitted over the port.
- Off: No device is connected to the port.
Internet: Solid on: The router is connected to the internet.; Off: No internet connection is established.
