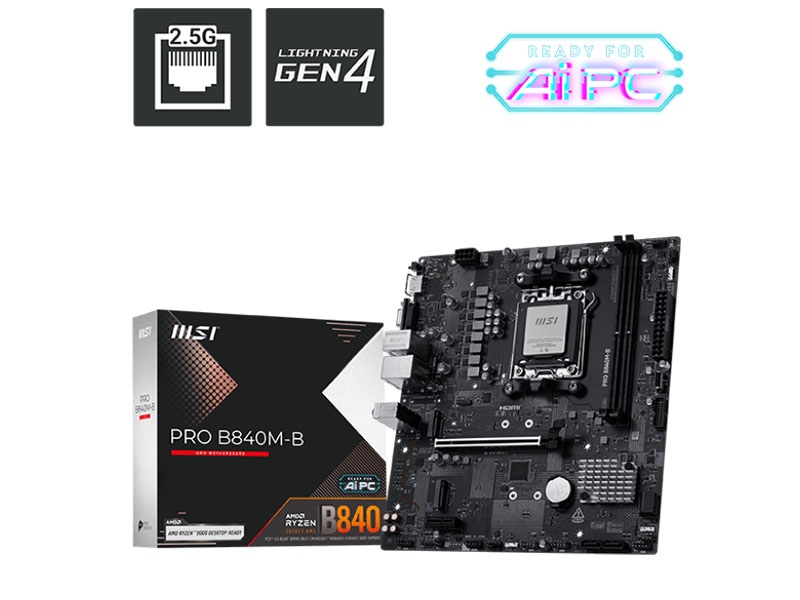

MB MSI PRO B840M-B AM5 DDR5 8000MHz OC/SATA3/2xM.2/USB 3.2/HDMI/VGA/2.5GBit LAN
Нема на залиха
5.580,00 ден.
24 рати x 246,00 ден.
- 747067747
- 36 месеци
- Компјутерски компоненти
Chipset : AMD B840
CPU : Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Socket: AM5
Memory : 2x DDR5 UDIMM, Maximum Memory Capacity 128GB
Memory Support DDR5 8000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Ryzen™ 9000 Series Processors max. overclocking frequency:
• 1DPC 1R Max speed up to 8000+ MT/s
• 1DPC 2R Max speed up to 7200+ MT/s
Onboard Graphics:
-1x HDMI™
Support HDMITM 2.1, maximum resolution of 4K 60Hz*
-1x VGA
Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot :
1x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E1 slot
• Supports PCIe 4.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processors)
Audio:
Realtek® ALC897
7.1-Channel High Definition Audio
Storage:
2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
M2_2 slot
• Supports up to PCIe 4.0 x4
• Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)
RAID:
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB :
2x USB 2.0 (Rear)
4x USB 2.0 (Front)
4x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
1x USB 5Gbps Type C (Front)
LAN : Realtek® 8125D 2.5G LAN
Internal IO :
1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 5Gbps Type C ports
LED FEATURE :
4x EZ Debug LED
1x EZ Memory Detection LED

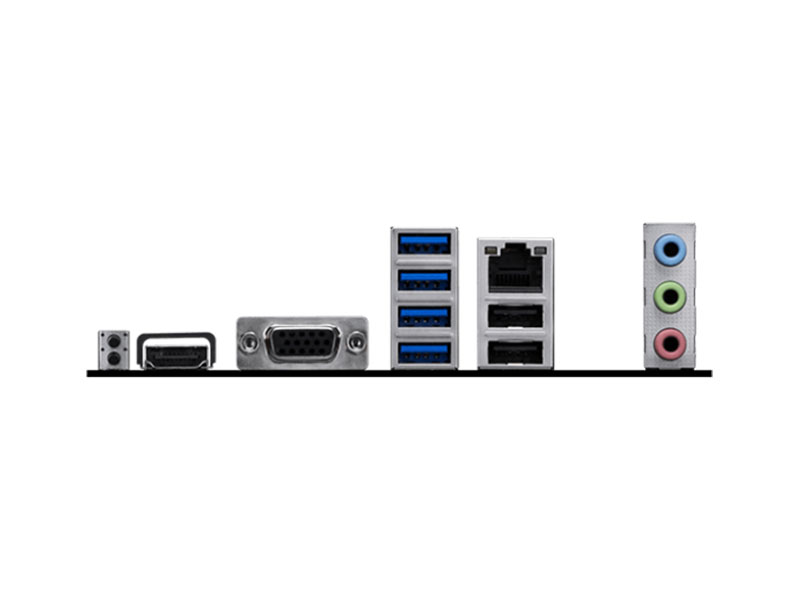

BACK PANEL PORTS :
Clear CMOS Button
HDMI™
VGA
USB 5Gbps Type-A
2.5G LAN
Audio connectors
Flash BIOS Button
USB 2.0
OPERATING SYSTEM : Support for Windows® 11 64-bit
PCB Info : mATX, 226mmx243.84mm
