• Upgrade Your Network with Wi-Fi 6 – MR62X comes equipped with the latest Wi-Fi 6 standard, delivering more simultaneous connections, extend WiFi range, and maintain reliably fast data transmissions.
• Faster 1.5 Gbps Speeds - Optimal WiFi 6 speeds reaching up to 1.5 Gbps (1201 Mbps on the 5 GHz band and 300 Mbps on the 2.4 GHz band)
• Improved Network Capacity – OFDMA and MU-MIMO allow simultaneous data transmission to and from several devices, improving overall network efficiency
• Broader, Stronger Coverage – 4× multi-directional high-gain antennas with Beamforming boost stable connections throughout your home for strong WiFi signals in every corner
• Gigabit Wired Connections – Make full use of your internet access and transfer data at dizzying speeds for peak performance
• Overall Security Protection – The latest WPA3 provides improved WiFi security
• Less WiFi Interference – Minimizes the interference from neighboring signals to improve transmission efficiency with BSS color
• Smart Connect– Intelligently chooses the best available band for each device
Wireless
Wireless Standards: Compatible with 802.11ax/ac/a/b/g/n Wi-Fi standards
WiFi Speeds: 1201 Mbps (5 GHz) + 300 Mbps (2.4 GHz)
Reception Sensitivity:
• 11g 6Mbps: -96dBm
• 11g 54Mbps: -78dBm
• 11n HT40 MCS7:-74dBm
• 11n HT20 MCS7:-77dBm
• 11a 6Mbps:-94dBm
• 11a 54Mbps:-76dBm
• 11ac VHT20 MCS8:-71dBm
• 11ac VHT40 MCS8:-68dBm
• 11ac VHT80 MCS8:-65dBm
Wireless Security: WPA / WPA2-Personal, WPA2 / WPA3-Personal
Wireless Functions: Enable/Disable Wireless Radio, WMM
Hardware
Dimensions: 5.2 × 3.7 × 1.2 in (132.14 × 94.81 × 30.5 mm)

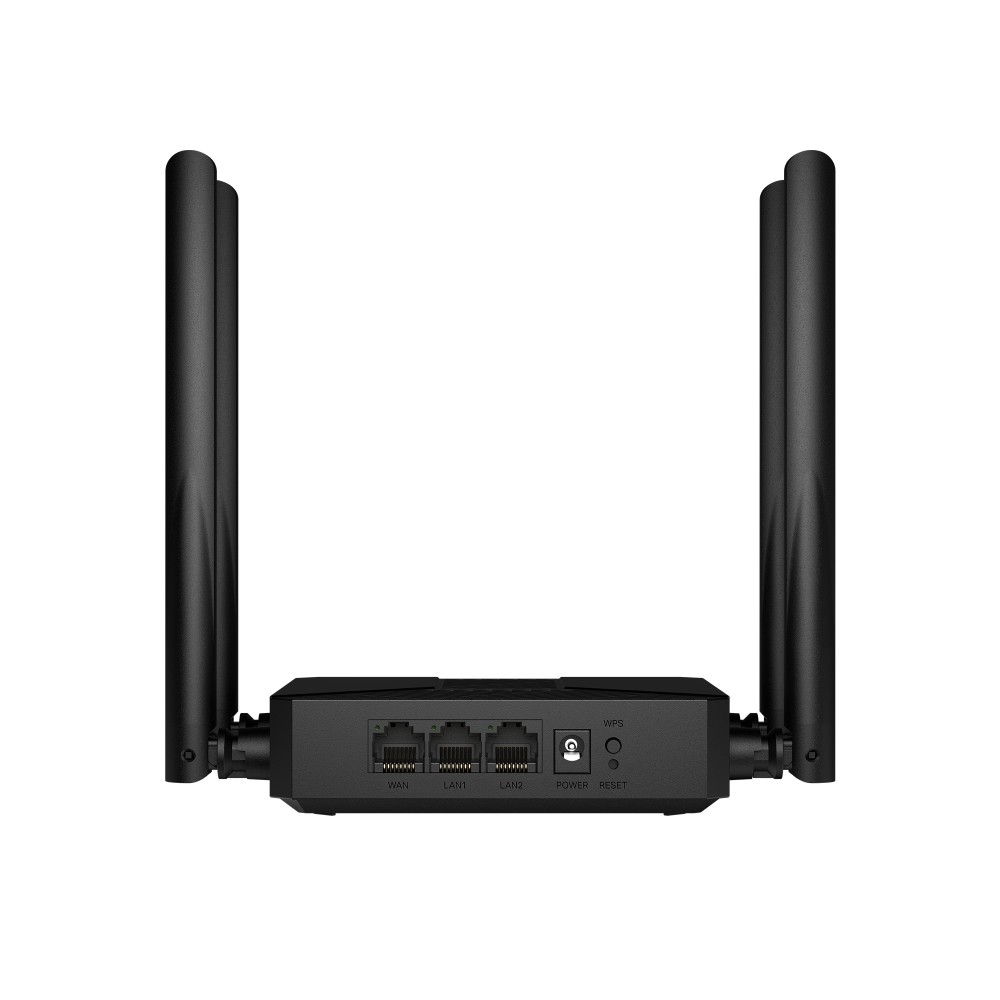

Interfaces: 1× Gigabit WAN Port + 2× Gigabit LAN Ports
Button: Reset Button、WPS Button
Antenna Type: 4× 5 dBi Fixed Omni-Directional Antennas
Software
WAN Type: Dynamic IP/Static IP/PPPoE/L2TP/PPTP
Management: Access Control, Local Management, Remote Management
NAT Forwarding: Port Forwarding, Port Triggering, UPnP, DMZ
Firewall Security: SPI Firewall, IP and MAC Address Binding
Guest Network: 2.4 GHz Guest Network, 5 GHz Guest Network
DHCP: Server, DHCP Client List
Others
Network Services Enabled by Default:
Web Server
Manage and configure device through web (HTTP/HTTPS)
• Port: 80/443; Protocol: TCP
DHCP Server
IP address assignment (DHCP)
• Port: 67; Protocol: UDP
DNS
• Port: 53; Protocol: TCP & UDP
App management
Manage and configure device through app
• Port: 20001; Protocol: TCP
• Port: 20002; Protocol: UDP
Package Contents:
• AX1500 Wi-Fi 6 Router MR62X
• Power Adapter
• Quick Installation Guide
• RJ45 Ethernet Cable
Environment:
• Operating Temperature: 0°C~40°C (32°F~104°F)
• Operating Humidity: 10%~90% Non-Condensing
• Storage Humidity: 5%~90% Non-Condensing
