KEY FEATURES
Advanced Dustproof Solution with Anti-dust Accumulation Components
SmartEco Power Saving Technology
0.61 Short Throw Ratio
Designed for Education & IWB
Blu-ray Full HD 3D support
PointWrite Interactive Solution Compatible
Native Resolution - 1024x768 pixels
Brightness* - 3,300 ANSI Lumens
Contrast Ratio - 20,000:1
Display Color - 1.07 Billion
Lens - F=2.6, f=6.9mm
Aspect Ratio - Native 4:3 (5 aspect ratio selectable)
Throw Ratio - 0.61
Zoom Ratio - 60"~120"
Projection Offset - 115%
Resolution Support - VGA(640 x 480) to WUXGA_RB(1920 x 1200) * RB= Reduced blanking
Horizontal Frequency - 15K -102KHz
Vertical Scan Rate - 23-120Hz
Dimensions (W x H x D) - 296*120*239 mm
HDTV Compatibility - 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Video Compatibility - NTSC, PAL, SECAM
Accessories (Standard) - Remote Control w/ Battery RCE013 x 1
Power Cord (by region)
Security - Kensington Lock, Security Bar
Projection System - DLP Single 0.55" XGA
DMD Chip - DC3 DMD Chip
Light Source - Lamp (200W)
Projection Size - Fixed
Keystone Adjustment - 1D; Vertical ± 30 degrees

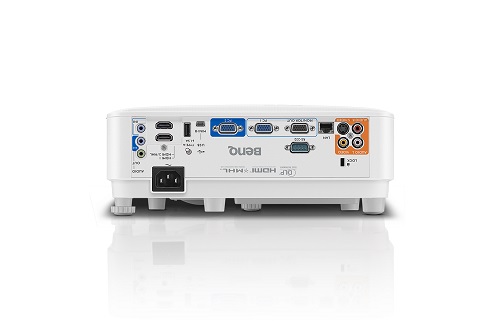

Interface:
HDMI x 2 (HDMI-2 share with MHL)
PC In (D-sub 15pin) x 2 (share with component video)
Monitor Out (D-sub 15pin) x 1
Composite Video In (RCA) x 1
S-Video In x 1
Audio In (mini jack) x 2
Audio L/R In (RCA) x 1
Audio Out (mini jack) x 1
LAN RJ45 x 1 (LAN control)
RS232 (DB-9pin) x 1
USB (type A) x1 (power only 5V/1.5A)
USB (type mini B) x 1
IR Receiver x2 (front, top)
Built-in Speaker - 10W x 1
Operating Temperature - 0° ~ 40°C
Audible Noise (Normal/Economic Mode) - 33/29 dBA
Light Source Life - 5000/10000/10000/15000 hours (Normal/Eco/SmartEco/Lampsave mode)
Power Supply - AC100V to 240V, 50Hz to 60Hz
Power Consumption - Typical 260W
Network Standby <2W, Standby <0.5W
Weight - 2.6 kg
Lamp Warranty 12 months or 2,000 cumulative hours whichever comes first
