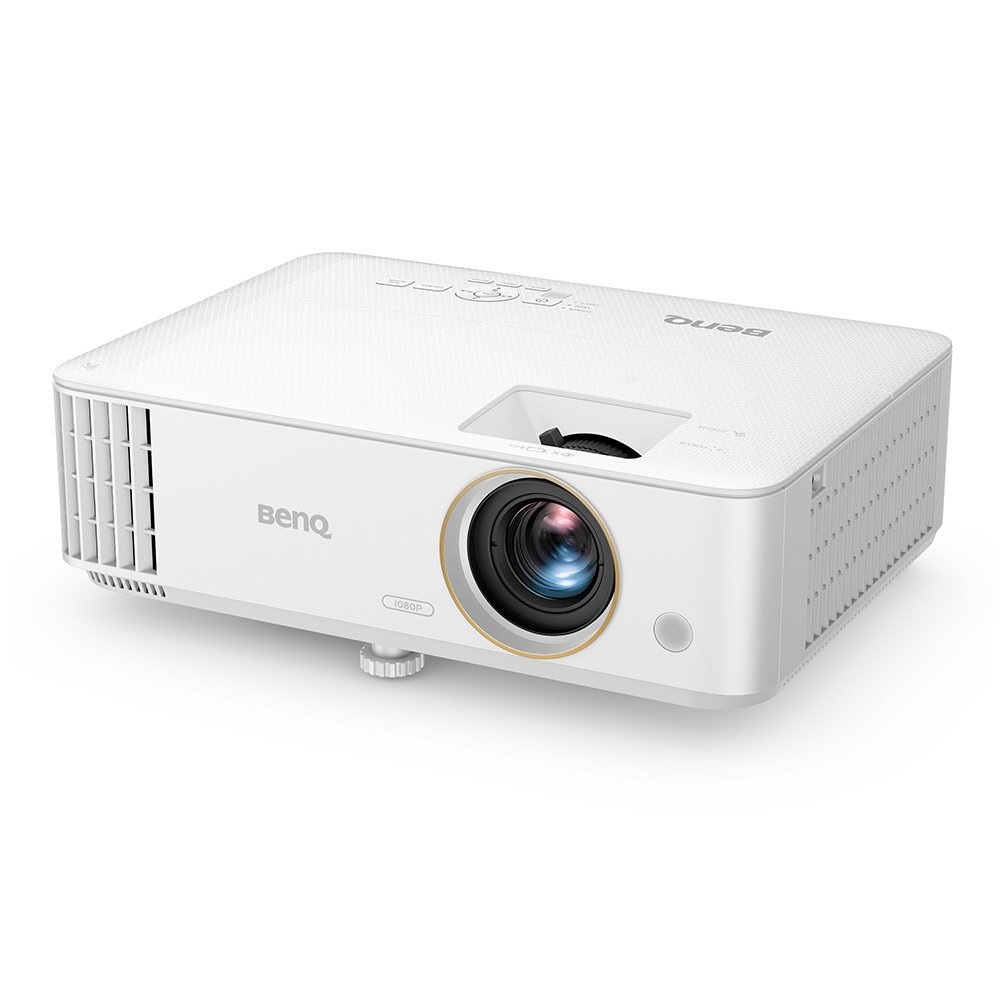

TH585P | Low Input Lag Console Gaming Projector with 3500lm
3500lm Full HD 1080p Image in Well-Lit Environments
Exclusive Game Mode for Detailed Visual Effects
Low Input Lag for Real-Time Gaming Excitement
Display
Brightness (ANSI lumens) - 3500
Native Resolution - 1080P (1920x1080)
Native Aspect Ratio - 16:9
Contrast Ratio (FOFO) - 10,000:1
Display Color - 30-bit (1.07 billion colors)
Light Source - Lamp
Light Source Life - a. Normal 4000 hrs, b. ECO 10000 hrs, c. SmartEco 8000 hrs, d. LampSave 15000 hrs
Projection System - DLP
Resolution - 1080p (1920x1080)
Resolution Support - VGA(640 x 480) to WUXGA(1920 x 1200)
Brightness (ANSI lumens) - 3500lm
Contrast Ratio (FOFO) - 10,000:1
Display Color - 30 Bits (1.07 billion colors)
Native Aspect Ratio - 16:9
Light Source - Lamp
Light Source Life - Normal 4,000 hours /Eco 10,000 hours / SmartEco 8,000 hours / LampSave 15,000 hours
Optical
Throw Ratio - 1.5~1.65
Zoom Ratio - 1.1x
Lens - F/#=2.0~2.05;f=15.843~17.445 mm
Projection Offset (Full-Height) - 100%
Keystone Adjustment - 1D, Vertical ± 40 degrees
Throw Ratio - 1.50 ~ 1.65 (100" @ 3.32 m)
Zoom Ratio - 1.1x
Keystone Adjustment - 1D Vertical ± 30 degrees
Projection Offset - 105%
Horizontal Frequency - 15K~102KHz
Vertical Scan Rate - 23~120Hz
Rec. 709 Coverage - 95%
Picture Modes - 3D, Bright, Cinema, Game, Living Room, Sports, User 1, User 2
Picture Mode - Bright / Living Room / Cinema / Sports / Game / (3D)* / User 1 / User 2
Color Wheel Segment - 6 segment (RGBWYC)
Color Wheel Speed - 2X(2D/3D, 50Hz/60Hz) , 3D max 144Hz
Rec.709 Coverage - 95%
Compatibility
Input Lag - 16.7 ms (1080p@60Hz)
Resolution Support - VGA(640 x 480) to WUXGA_RB(1920 x 1200) *RB=Reduced blanking
Horizontal Frequency - 15K~102KHz
Vertical Scan Rate - 23~120KHz
HDTV Compatibility - 720p 50/60Hz, 1080i 50/60Hz, 1080p 24/25/30/50/60Hz
I/O Interface
HDMI in - (x2), HDMI-1 (1.4a/HDCP1.4/MHL), HDMI-2 (1.4a/HDCP1.4/MHL)
USB Type A - (x1), USB Type A-1 (2.0/Power Supply1.5A)
RS232 in (DB-9pin) - (x1)
Audio
Speaker - (x1), 10W
Audio in (3.5mm Mini Jack) - (x1)
Audio out (3.5mm Mini Jack) - (x1)
Speaker - 10W x 1
Environment
Operating Temperature - 0~40℃
Power Supply - AC 100 to 240 V, 50/60 Hz
Typical Power Consumption (110V) - 297W/110V
Stand-by Power Consumption - <0.5W
Acoustic Noise (Typ./Eco.)(dB) - 35/29 dB
Power Supply:
VAC 100 ~ 240 (50/60Hz)
Typical Power Consumption - Max 340W, Normal 297W, Eco 206W
Standby Power Consumption - 0.5W Max. at 100 ~ 240VAC
Acoustic Noise (Typ./Eco.) - 35/29 dBA
Operating Temperature - 0~40℃ (Celcius)
Accessories
Remote Control w/ Battery - RCV013
Power Cord (by region) - (Standard), x1 (1.8M)
3D Glasses - (Optional), DGD5
Quick Start Guide - (x1) 21L
Dimension & Weight
Dimensions (WxHxD) (mm) - 312 x 110 x 225
Net Weight (kg) - 2.79
Dimensions (WxHXD) (inch) - 12.2 x 4.3 x 8.8
Net Weight (lb) - 6.15
Projection System
Projection System - DLP
Interface
PC (D-Sub) - X1
Monitor Out (D-Sub) - X1
HDMI - X1 (HDMI-1 / MHL) X1 (HDMI-2)
USB Type A - X1 (1.5A power)
Audio in (3.5mm Mini Jack) - X1
Audio out (3.5mm Mini Jack) - X1
RS232 (DB-9pin) - X1
IR Receiver - X2 (Front / Top)
Special Feature
Input Lag (Under Fast Mode) - 1 frame (16.67ms) 60Hz***
Dimension and Weight
Dimensions (W x H x D) (mm/inch) - 312 x 110 x 225 mm
Net Weight (Kg/ lbs) - 2.79 kg / 6.15 lbs
Lamp Warranty 12 months or 2,000 cumulative hours whichever comes first
