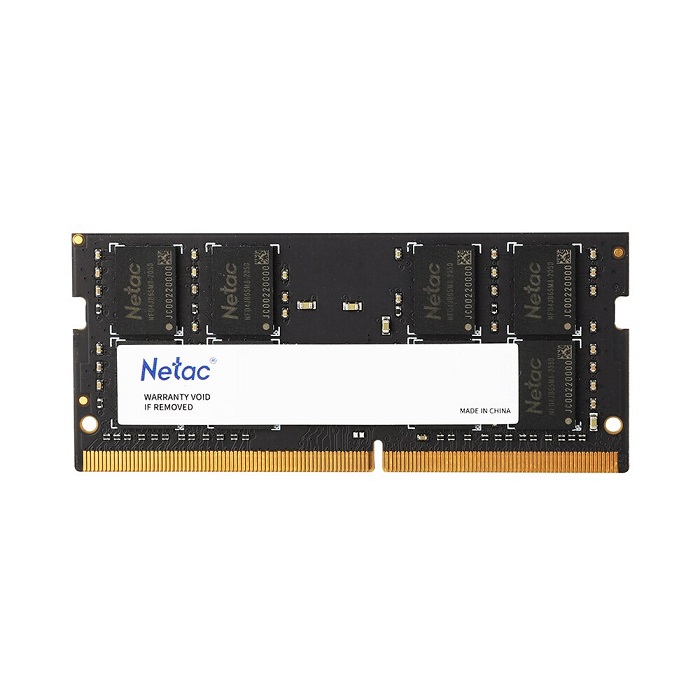

Netac Unbuffered Small Outline DDR4 SDRAM DIMMs (Unbuffered Small Outline Double Data Rate Synchronous DRAM
Dual In-Line Memory Modules) are low power, high-speed operation memory modules that use DDR4 SDRAM devices.
Each 260-pin DIMM uses gold contact fingers. The SDRAM Unbuffered SODIMM is intended for use as main memory when
installed in systems such as mobile personal computers.

Features
 Power Supply: VDD=1.2V (1.14V to 1.26V)
 VDDQ = 1.2V (1.14V to 1.26V)
 VPP - 2.5V (2.375V to 2.75V)
 VDDSPD=2.25V to 3.6V
 Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
 Low-power auto self refresh (LPASR)
 Data bus inversion (DBI) for data bus
 On-die VREFDQ generation and calibration
 On-board I2C serial presence-detect (SPD) EEPROM
 Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
 Selectable BC4 or BL8 on-the-fly (OTF)
 Databus write cyclic redundancy check (CRC)
 Temperature controlled refresh (TCR)
 Command/Address (CA) parity
 Per DRAM Addressability is supported
 8 bit pre-fetch
 Fly-by topology
 Command/Address latency (CAL)
 Terminated control command and address bus
 PCB: Height 1.18” (30.00mm)
 Gold edge contacts
 RoHS Compliant and Halogen-Free
