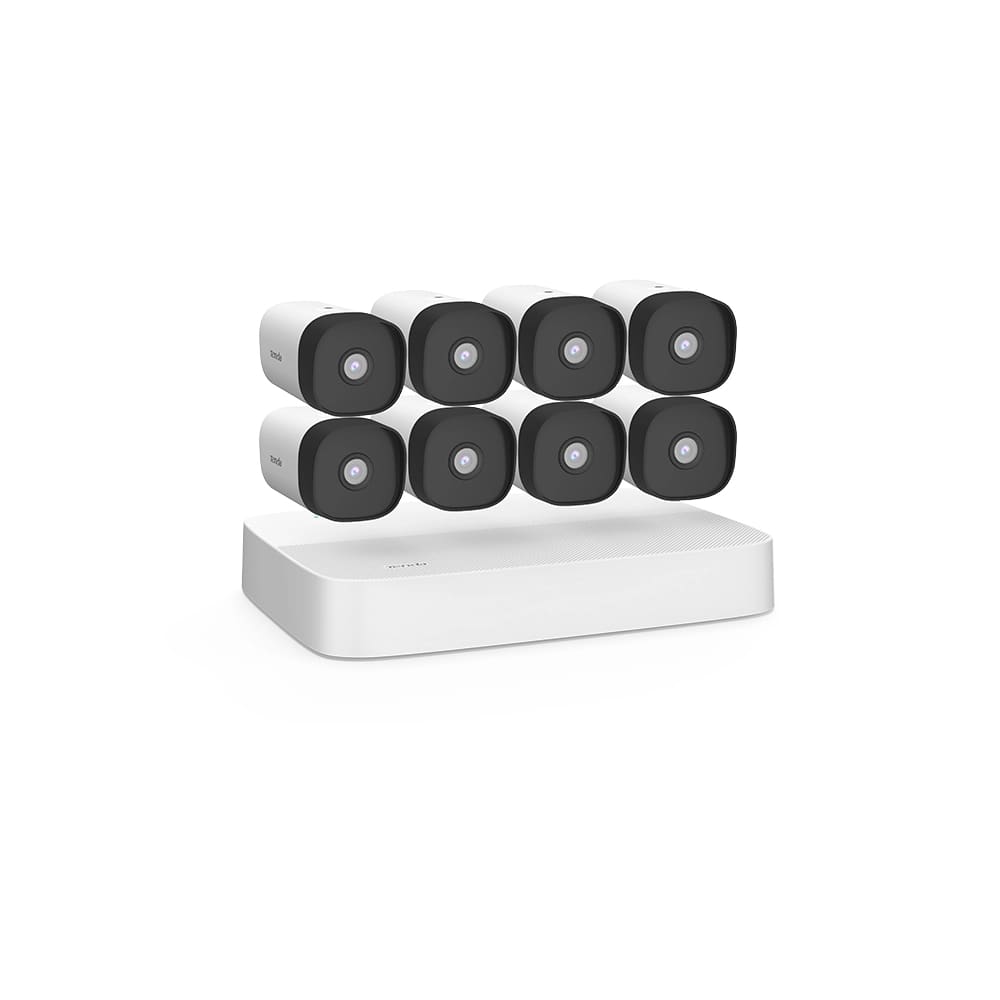

Tenda 8 Channel PoE HD Network Video Security Kit w/8 Cameras K8P-4TR
Нема на залиха
22.980,00 ден.
24 рати x 1.013,00 ден.
- 599879193
- 24 месеци
- Home, Business & Outdoor
8 Channel PoE HD Video Security Kit K8P-4TR includes 1 PoE NVR and 8 PoE bullet security cameras. It integrates such functions as plug and play, 4MP HD image quality, infrared night vision, AI human detection, H.265 high-performance video decoding, HDD bad sector isolation, channel cloud storage, IP67 waterproof and dustproof (camera) and App remote monitoring. It offers one-stop solutions for small video surveillance in such scenarios as single-family houses, shops, restaurants, offices, schools, factories and farms.
PoE HD Network Video Recorder
Video&Audio Input
IP Video Input:8-ch
IP Video Resolution: 4MP
Input Bandwidth: 60 Mbps
Audio Input: 1-ch, RCA (2.0 Vp-p, 10kΩ)
Video&Audio Output
HDMI Output: 1-ch, 4K (3840 × 2160 )/30Hz, 1920 × 1080/60 Hz, 1280 × 1024/60Hz, 1280 × 720/60 Hz
VGA Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, HDMI/VGA simultaneous output
Output Bandwidth: 60 Mbps
Audio Output: 1-ch, RCA (2.0 Vp-p, 10kΩ)
Video&Audio Decoding
Video Decoding Format: H.265, H.264
Audio Decoding Format: G.711A, G.711U
Recording Resolution: 4MP, 3MP, 1080P, 720P, D1
Decoding Capability: 4-ch@1080P (30 fps)
Stream Type: Video, Video & Audio
Recording Management
Record Mode: Normal, Alarm
Playback Mode: Instant, Channel, File, Tag
Sync Playback: Up to 8-ch
Backup Mode: USB device
Network Management
Ethernet Port: 1 x RJ45, 10Mbps/100Mbps auto-negotiation Ethernet port
Network Protocol: HTTP, HTTPS, WebSockets, TCP/IP, IPv4, RTSP, UDP, NTP, DHCP, DNS, DDNS
Mobile Client: Support iOS, Android
Web Browser: Plug-in free live view : Chrome, Edge, Opera, Safari
PoE
PoE Port: 8 x RJ45, 10Mbps/100Mbps auto-negotiation Ethernet ports
PoE Standard: IEEE 802.3af
PoE Power: ≤60W
HDD Storage
HDD Interface: 1 x SATA 3.0 interface
Capacity: Up to 10 TB capacity for each HDD
External Interfaces
USB Port: 2 x USB 2.0
Generals
Power: 51 VDC, 1.25 A
Dimension: 200 mm × 200 mm × 48 mm
Weight (Without HDD): 780 g (1.72lb)
Certificate: CCC, CE, FCC, RoHS,UKCA
PoE Security Camera
Camera
Image Sensor: 1/3” CMOS sensor
Max. Resolution: 2560 x 1440
Day and Night: Built-in IR-CUT Dual Filters
Digital Noise Reduction: 3D DNR
Night Vision Mode: Infrared Mode
Lens Specifications
Lens Type: 4 mm@F2.2
FOV: Horizontal FOV: 74.9°, Vertical FOV: 41.3°, Diagonal FOV: 88.2°
Video Specifications
Video Encoding Format: H.265, H.264
Main Stream: 25fps (2560 ×1440),30fps(2304 × 1296, 1920 × 1080)
Sub Stream: 25fps (640 × 360, 352 × 288, 320 × 240)
Audio Specifications
Audio Encoding Format: G.711A, G.711U
Audio Sampling Rate: 8 kHz
Network Managemant
Ethernet Port:1 x RJ45, 10Mbps/100Mbps auto-negotiation Ethernet port
General
Dimension: 85mm x 85mm x 166mm
Weight: 204g
Protection Level: IP67
Certificate:CE, FCC, RoHS,UKCA
Kit
Dimension: 420mm x 395mm x 305mm
Weight (With Package): 8.99kg
Package Contents: PoE Network Video Recorder x 1
Power adapter (51V 1.25A) x 1
Screw kit (NVR) x 1
Mouse x 1
PoE Camera x 8
Waterproof kit x 8
Camera bracket x 8
Screw kit (camera) x 8
Screwdriver x 1
HDMI cable x 1
Surveillance sticker x 1
1 m Ethernet cable x 1
18 m Ethernet cable x 4
30 m Ethernet cable x 4
User manual x 1
PoE HD Network Video Recorder
Video&Audio Input
IP Video Input:8-ch
IP Video Resolution: 4MP
Input Bandwidth: 60 Mbps
Audio Input: 1-ch, RCA (2.0 Vp-p, 10kΩ)
Video&Audio Output
HDMI Output: 1-ch, 4K (3840 × 2160 )/30Hz, 1920 × 1080/60 Hz, 1280 × 1024/60Hz, 1280 × 720/60 Hz
VGA Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, HDMI/VGA simultaneous output
Output Bandwidth: 60 Mbps
Audio Output: 1-ch, RCA (2.0 Vp-p, 10kΩ)
Video&Audio Decoding
Video Decoding Format: H.265, H.264
Audio Decoding Format: G.711A, G.711U
Recording Resolution: 4MP, 3MP, 1080P, 720P, D1
Decoding Capability: 4-ch@1080P (30 fps)
Stream Type: Video, Video & Audio
Recording Management
Record Mode: Normal, Alarm
Playback Mode: Instant, Channel, File, Tag
Sync Playback: Up to 8-ch
Backup Mode: USB device
Network Management
Ethernet Port: 1 x RJ45, 10Mbps/100Mbps auto-negotiation Ethernet port
Network Protocol: HTTP, HTTPS, WebSockets, TCP/IP, IPv4, RTSP, UDP, NTP, DHCP, DNS, DDNS
Mobile Client: Support iOS, Android
Web Browser: Plug-in free live view : Chrome, Edge, Opera, Safari
PoE
PoE Port: 8 x RJ45, 10Mbps/100Mbps auto-negotiation Ethernet ports
PoE Standard: IEEE 802.3af
PoE Power: ≤60W
HDD Storage
HDD Interface: 1 x SATA 3.0 interface
Capacity: Up to 10 TB capacity for each HDD
External Interfaces
USB Port: 2 x USB 2.0
Generals
Power: 51 VDC, 1.25 A
Dimension: 200 mm × 200 mm × 48 mm
Weight (Without HDD): 780 g (1.72lb)
Certificate: CCC, CE, FCC, RoHS,UKCA
PoE Security Camera
Camera
Image Sensor: 1/3” CMOS sensor
Max. Resolution: 2560 x 1440
Day and Night: Built-in IR-CUT Dual Filters
Digital Noise Reduction: 3D DNR
Night Vision Mode: Infrared Mode
Lens Specifications
Lens Type: 4 mm@F2.2
FOV: Horizontal FOV: 74.9°, Vertical FOV: 41.3°, Diagonal FOV: 88.2°
Video Specifications
Video Encoding Format: H.265, H.264
Main Stream: 25fps (2560 ×1440),30fps(2304 × 1296, 1920 × 1080)
Sub Stream: 25fps (640 × 360, 352 × 288, 320 × 240)
Audio Specifications
Audio Encoding Format: G.711A, G.711U
Audio Sampling Rate: 8 kHz
Network Managemant
Ethernet Port:1 x RJ45, 10Mbps/100Mbps auto-negotiation Ethernet port
General
Dimension: 85mm x 85mm x 166mm
Weight: 204g
Protection Level: IP67
Certificate:CE, FCC, RoHS,UKCA
Kit
Dimension: 420mm x 395mm x 305mm
Weight (With Package): 8.99kg
Package Contents: PoE Network Video Recorder x 1
Power adapter (51V 1.25A) x 1
Screw kit (NVR) x 1
Mouse x 1
PoE Camera x 8
Waterproof kit x 8
Camera bracket x 8
Screw kit (camera) x 8
Screwdriver x 1
HDMI cable x 1
Surveillance sticker x 1
1 m Ethernet cable x 1
18 m Ethernet cable x 4
30 m Ethernet cable x 4
User manual x 1
