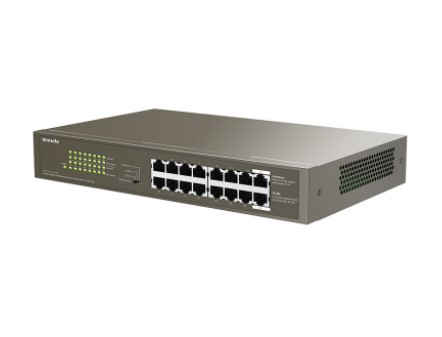

Tenda Switch 16port Gigabit TEG1116P-16-150W w/4port PoE
Нема на залиха
10.490,00 ден.
24 рати x 463,00 ден.
- 599871586
- 24 месеци
- Мрежа, алати, кабли и адаптери
TEG1116P-16-150W is a Tenda PoE Switch that offers 16 10/100/1000Mbps Base-TX RJ45 ports 1-16 comply with IEEE 802.3af standard (maximum PoE power output: 15.4 W) and 802.3at standard (maximum PoE power output: 30 W). The switch offers a maximum PoE power output of 135W and can supply power to and exchange data with APs, IP cameras and IP phones through CAT5 cables. It also provides simple management modes such as CCTV, VLAN and isolation to help reduce cabling costs of IP terminals like APs and IP cameras.
---------------
Standard&Protocol - IEEE 802.3/IEEE 802.3u/IEEE 802.3ab/IEEE 802.3x/IEEE 802.3af/IEEE 802.3at
Indicator - 16*Link/Act per device, 16*PoE per device, 1*Power per device
Interface - 16 10/100/1000Base-T ports(Data/Power)
Lightning Protection - 6KV
Store & Forward - Yes
exchange capacity - 32 Gbps
Packet Forwarding Rate - 23.6Mpps
RAM Data Buffer - 4Mb
MAC Address Table - 4K
PoE supply management - Port 1-16 support IEEE802.3at/af PoE standard
PoE through pin - 1 2 4 5 +
3 6 7 8 -
Input Voltage - AC： 100-240V～50/60Hz
Dimension - 294*178*44mm ( W x D x H )
Power Consumption - in full con guration:<150W
PoE Max Power Supply:135W
Port Features - Standard: the switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other.
CCTV: the port cache is optimized and PoE ports 1-8 have higher priorities over the other ports. All the ports of the switch can communicate with each other.
VLAN: ports 1 to 14 are isolated from each other, but can communicate with ports 15 and 16 (uplink ports) respectively.
Isolation: ports 1 to 8 and Ports 9 to 16 belong to two di erent VLAN.This mode can be used to isolate supervision network and wireless network to make them not interfere with each other.
Environment - Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
---------------
Standard&Protocol - IEEE 802.3/IEEE 802.3u/IEEE 802.3ab/IEEE 802.3x/IEEE 802.3af/IEEE 802.3at
Indicator - 16*Link/Act per device, 16*PoE per device, 1*Power per device
Interface - 16 10/100/1000Base-T ports(Data/Power)
Lightning Protection - 6KV
Store & Forward - Yes
exchange capacity - 32 Gbps
Packet Forwarding Rate - 23.6Mpps
RAM Data Buffer - 4Mb
MAC Address Table - 4K
PoE supply management - Port 1-16 support IEEE802.3at/af PoE standard
PoE through pin - 1 2 4 5 +
3 6 7 8 -
Input Voltage - AC： 100-240V～50/60Hz
Dimension - 294*178*44mm ( W x D x H )
Power Consumption - in full con guration:<150W
PoE Max Power Supply:135W
Port Features - Standard: the switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other.
CCTV: the port cache is optimized and PoE ports 1-8 have higher priorities over the other ports. All the ports of the switch can communicate with each other.
VLAN: ports 1 to 14 are isolated from each other, but can communicate with ports 15 and 16 (uplink ports) respectively.
Isolation: ports 1 to 8 and Ports 9 to 16 belong to two di erent VLAN.This mode can be used to isolate supervision network and wireless network to make them not interfere with each other.
Environment - Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
