OS3 1-pack/2-pack

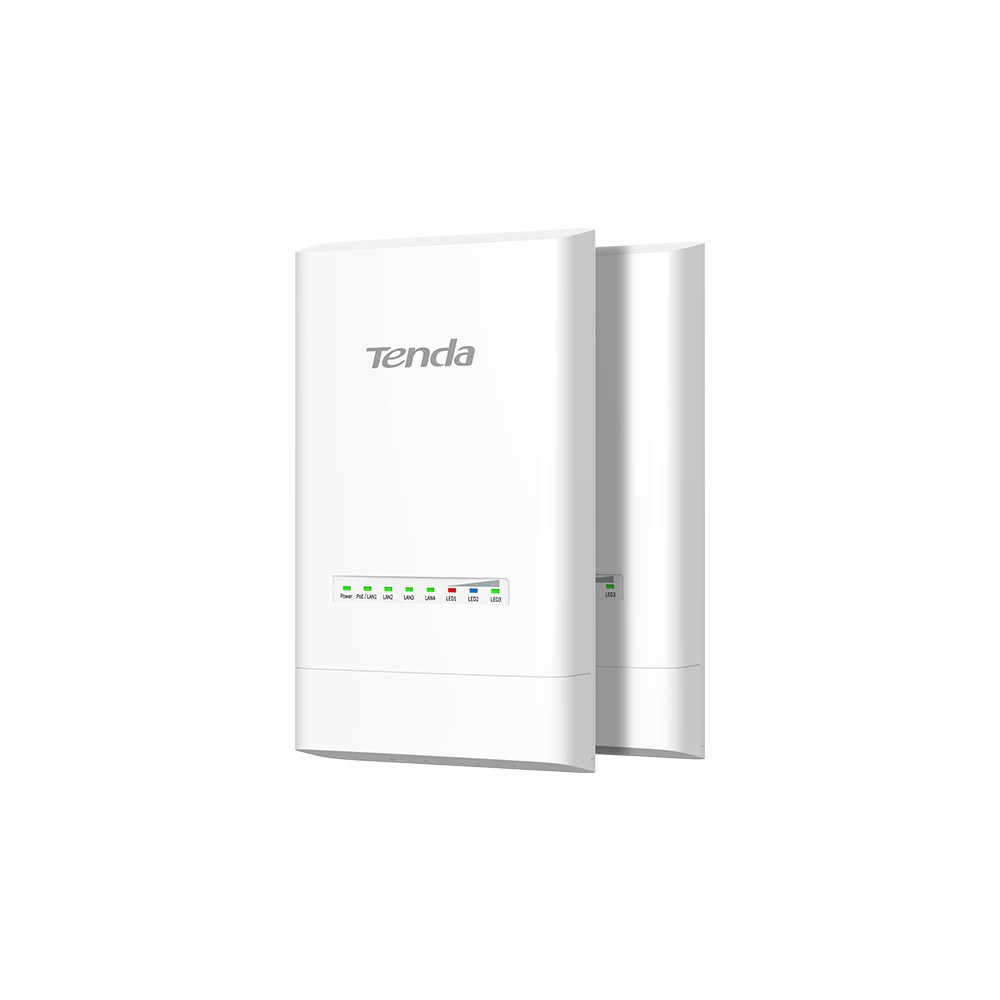

5GHz 12dBi 11AC 867Mbps Outdoor CPE
- 12V 1A DC/12V 1A Passive PoE supported
- 6000V Lightning Protection
- IP65 waterproof enclosure

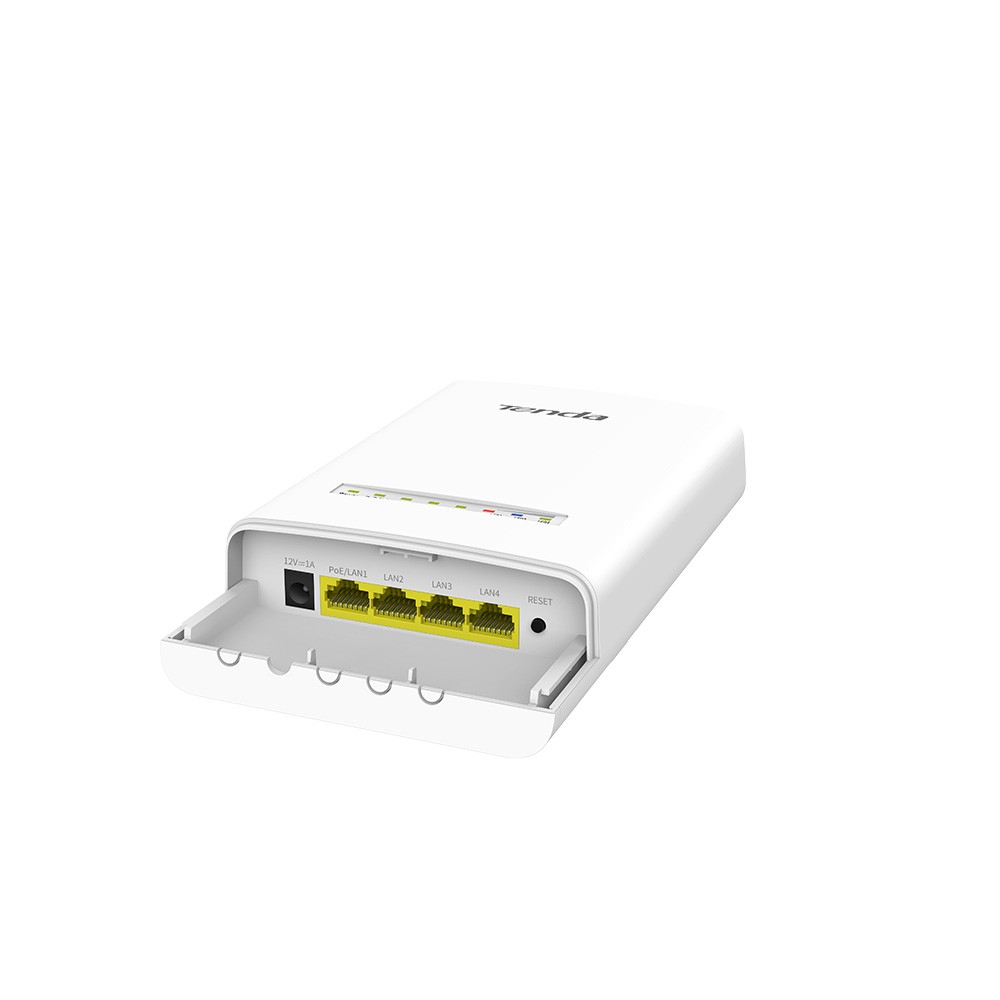

- Four fast ethernet Port
- 12dBi directional antenna
- 5GHz 11AC 867Mbps
Specification
Product Information
Model: OS3
Dimension: 193*109*61mm
Deployment: Pole/Wall Mount
Application Scenarios: PtP and PtMP wireless connection for Privated ISP access or CCTV Surveillance
Hardware
Frequency Range: 5GHz
Compliant Standards: IEEE 802.11a/n/ac
Private TDMA Protocol: TD-MAX
Maximum Wireless Rate: 867Mbps
Interfaces: 4*10/100 LAN Port
Antennas Gain: 12dbi
Antenna Beamwidth: Horizontal: 30° Vertical: 30° Elevation: 30°
Reset Button: 1
Power Consumption: 4.7W
Waterproof Level: IP65
LED Indicator: Power,PoE/LAN1,LAN2,LAN3,LAN4LED1,LED2,LED3
Power Method: 12V 1A Passive PoE; 12V 1A DC
Lightning Protection: 6000V
Passive PoE: Passive power over ethernet via PoE/LAN (+4,5pins -7,8pins ) up to 60 meters; Voltage range: 9-13V DC
Reception Sensitivity: 11a 6Mbps -90dBm±1.5dBm; 11n MCS0 HT20 -70dBm±1.5dBm; 11n MCS7 HT20 -70dBm±1.5dBm; 11ac MCS9 HT80 -59dBm±1.5dBm
Software
Operating mode: AP/Station/WISP/ Repeater/Router
Enable/Disable Wireless Radio: Support
SSID Hidden: Support
Wireless Client isolation: Support
SSID Isolation: Support
Channel Bandwidth: 20/40/80MHz
Client Limitation For SSID: Support
Wireless Access Control: Support
Weak Signal Client Limitation: Support
Transmission Power: Adjustable power by 1dBm
WMM Capable: Support
APSD Capable: Support
Wireless Security: WPA-PSK,WPA2-PSK,Mix WPA/WPA2-PSK
Transparent Bridge: Support
VLAN Tagging for SSID: Support
DHCP Server: Support
VPN Pass-Through: PPTP,L2TP
Remote Web access: Support
Schedule Reboot: Support
Page Timeout: Support
Ping Watchdog: Support
Dyndns: noip, dyndns.org
Network Diagnoses: Ping, Traceroute, Signal Scan
Time and Date Setting: Support
Firmware upgrade: Support
Backup/Restore Configuration: Support
Username Managerment: Support
System Logs: Support
Managed By Controller: PC Software -- CPE Assistant
Others
Package Contents: 1*5GHz 12dBi 11AC 867Mbps Outdoor CPE; 1*Power Adapter; 1*PoE Injector; 1*Quick Installation Guide
Operation Temperature: -30℃ ~ 60℃
Storage Temperature: -40℃ ~ 70℃
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 10%~90% non-condensing
Default login IP: 192.168.2.1/192.168.2.2
Default Login Username: admin
Default Login Password: admin
Certification: FCC/CE/RoHS
