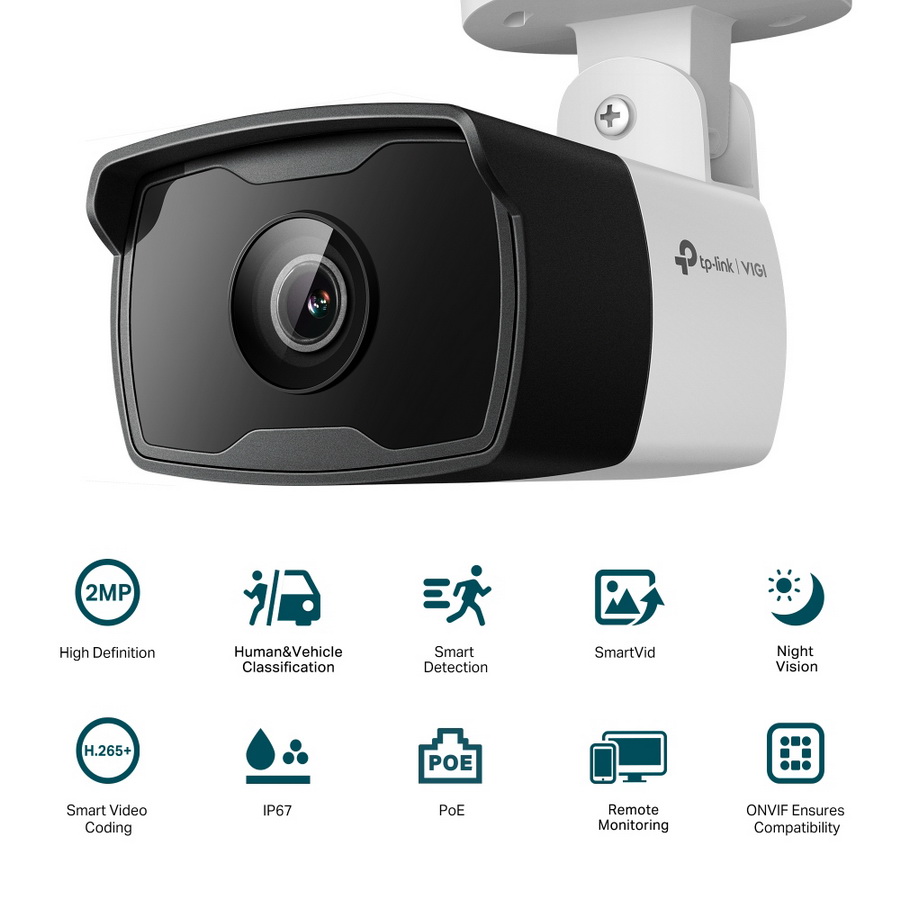

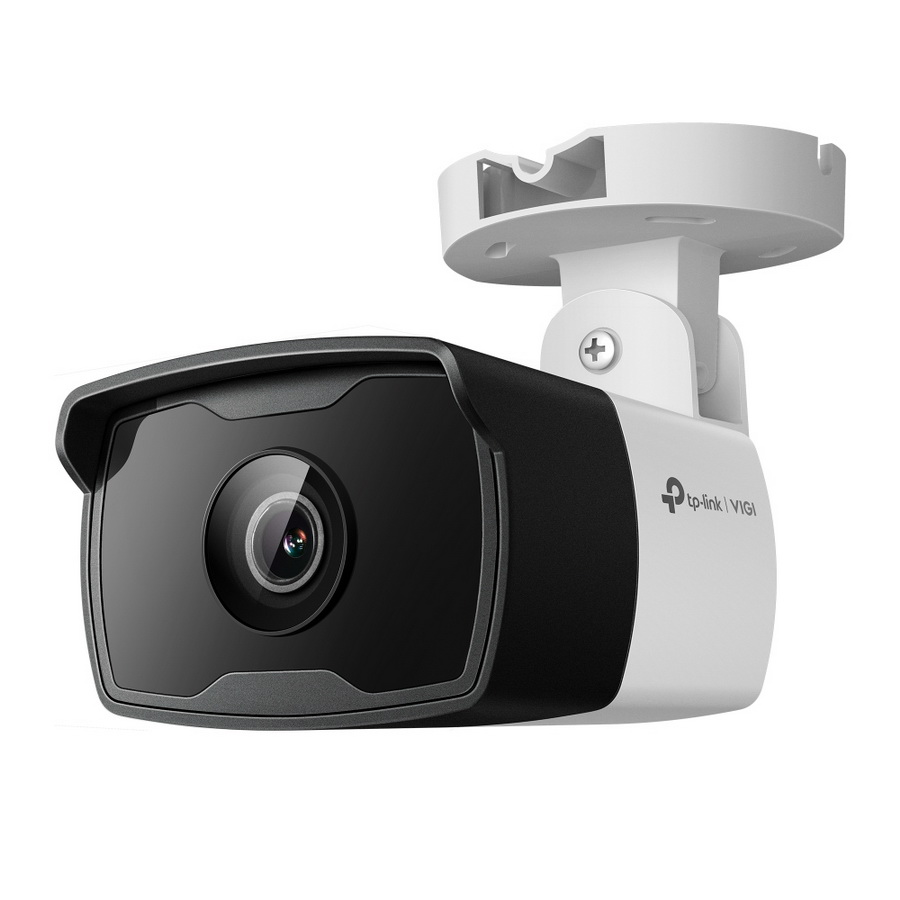

TP-Link Smart Home IP Network Outdoor Camera VIGI C320I
Нема на залиха
2.780,00 ден.
24 рати x 123,00 ден.
- 599883748
- 24 месеци
- Home, Business & Outdoor
• 2MP Full-High Definition and IR Night Vision
• Human & Vehicle Classification
• Smart Detection
• Smart Video Enhancement Technology
• Built-In Microphone
• IP67 Waterproof
• H.265+ Compression Technology
Specifications
CAMERA
Image Sensor: 1/3” Progressive Scan CMOS
Shutter Speed: 1/3 to 1/10000 s
Slow Shutter: Yes
Minimum Illumination: Color: 0.01 Lux; 0 Lux with IR
Day/Night Mechanism: IR Cut Filter
Day/Night Switch: Unified/ Scheduled/ Auto
LENS
Type: Fixed Focal Lens
Focal Length: 2.8 mm/4 mm/6 mm
Aperture:
• 2.8 mm: F2. 2
• 4 mm: F2.0
• 6 mm: F2.0
FOV:
• 2.8 mm: Horizontal FOV: 88.2°, Vertical FOV: 48.6°, Diagonal FOV: 106.5°
• 4 mm: Horizontal FOV: 75.2°, Vertical FOV: 40.8°, Diagonal FOV: 88.3°
• 6 mm: Horizontal FOV: 49.8°, Vertical FOV: 27.6°, Diagonal FOV: 57.7°
Lens Mount: M12
DORI Distance: • 2.8 mm:
Detect: 45 m (149 ft)
Observe:19 m (62 ft)
Recognize: 9 m (30 ft)
Identify: 5 m (15 ft)
• 4 mm: Detect: 60 m (198 ft); Observe: 25 m (83 ft); Recognize: 12 m (40 ft); Identify: 6 m (20 ft)
• 6 mm: Detect: 91 m (297 ft); Observe: 38 m (124 ft); Recognize: 18 m (59 ft); Identify: 9 m (30 ft)
Angle Adjustment (Manual)
Range:
• Pan: 0° to 360°
• Tilt: 0° to 90°
• Rotation: 0° to 360°
ILLUMINATOR
IR LED:
• Quantity: 2
• Range: 50m
• Wavelength: 850nm
White LED: N/A
Illuminator On/Off Control: Auto/Scheduled/Always on/Always off
VIDEO
Max. Resolution: 1920 × 1080
Main Stream:
• Frame Rate：50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps; 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Resolution: 1920x1080, 1280x960, 1280x720
Sub-Stream:
• Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps; 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Resolution: 704x576, 640x480, 352x288, 320x240
Bit Rate Control: CBR, VBR
Video Compression:
• Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264
H.264 Type: High Profile
H.264+: Main Stream Supported
H.265 Type: Main Profile
H.265+: Main Stream Supported
Video Bit Rate:
• Main Stream: 256 Kbps to 4 Mbps
• Sub-Stream: 64 Kbps to 512 Kbps
Image Settings:
• Mirror
• Brightness
• Contrast
• Saturation
• Sharpness
• Exposure
• WDR
• White Balance Adjustable by Client Software
• Rotation(90°/270°)
Image Enhancement: BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range: DWDR
SNR: ≥ 52 dB
Image Parameters Switch: Yes
Privacy Mask: Up to 4 Masks
ROI: 1 Region
OSD Setting: Yes
AUDIO
Audio Input: Yes (Built-in Microphone)
Audio Compression: Yes
Audio Sampling Rate: 8KHz
Environment Noise Filtering: Yes
Audio Bit Rate: 64 Kbps(G.711 alaw)
NETWORK
Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP, SMTP, SNMP, RTMP
ONVIF: Yes
API: Open Network Video Interface (Profile S/T)
Simultaneous Live View: 3 Main Streams & 3 Sub-Streams
Client: VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS, VIGI Config Tool, VIGI PC Client
Web Browser:
• Google Chrome® 57 and above
• Firefox® 52 and above
• Safari® 11 and above
• Microsoft® Edge 91 and above
Cloud: Yes
ALARM AND EVENT MANAGEMENT
Smart Event:
• Intrusion Detection
• Line-Crossing Detection
• Region Entering Detection
• Region Exiting Detection
• Object Abandoned/Removal Detection
• Abnormal Sound Detection
• People Detection
• Vehicle Detection
INTERFACES
Network Interface: 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Built-in Microphone: Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera
GENERAL
Package Content:
• VIGI Network Camera
• Quick Start Guide
• Waterproof Cable Attachments
• Mounting Accessories
Material: Plastic
Net Weight: 0.28 Kg
Power Supply: PoE: 802.3af/at, class 0, Max. 5.5 W
Protection: IP67 Waterproof
Product Dimensions (L x W x H): 3.1 × 7.4 × 2.9 in (78.50 × 188.03 × 71.55 mm)
