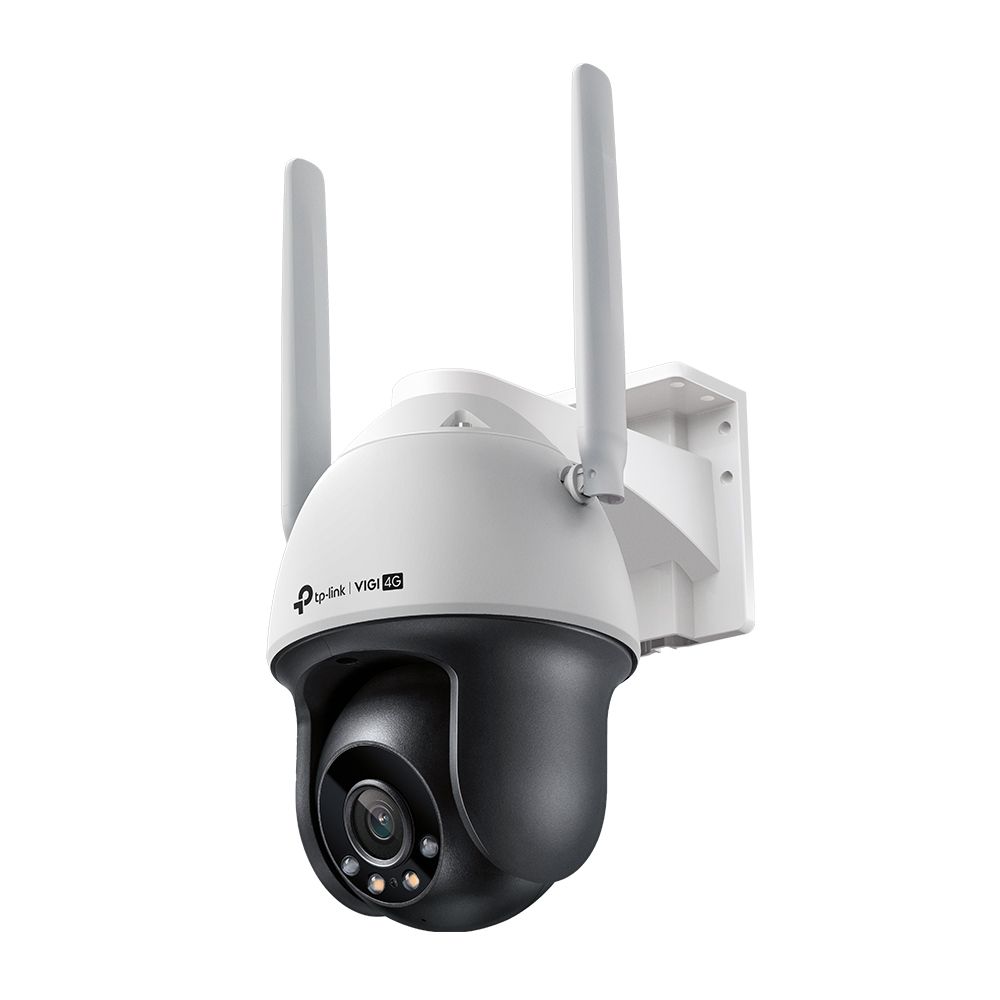

TP-Link Smart Home IP Network Outdoor Camera VIGI C540 4G 4mm
Нема на залиха
11.980,00 ден.
24 рати x 528,00 ден.
- 599883745
- 24 месеци
- Home, Business & Outdoor
• 4MP Super-High Definition and 24h Full-Color

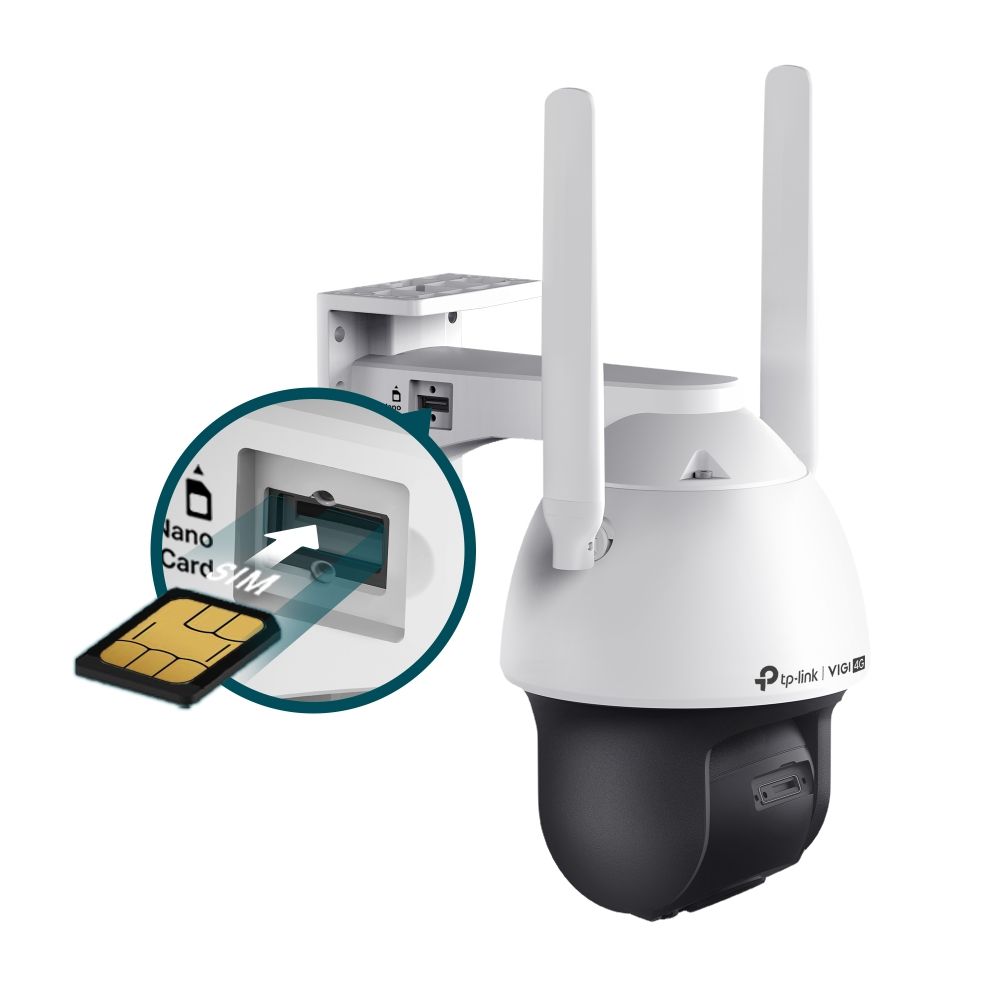

• 4G Mobile Networking
• 360° Monitoring and Auto Tracking
• 1 LAN Ports for Downstream Devices
• Human & Vehicle Classification
• Smart Detection
• Smart Video Enhancement Technology
• Active Defense and Two-Way Audio
• H.265+ Compression Technology
• IP66 Waterproof and Onboard Storage
Specifications
CAMERA
Image Sensor: 1/3.06” Progressive Scan CMOS
Shutter Speed: 1/3 to 1/10000 s
Slow Shutter: Yes
Minimum Illumination: 0.005 Lux; 0 Lux with IR/White Light
Day/Night Mechanism: IR Cut Filter
Day/Night Switch: Unified/ Scheduled/ Auto
LENS
Type: Fixed Focal Lens
Focal Length: 4 mm
Aperture: F1.6
FOV: Horizontal FOV: 80°, Vertical FOV: 43°, Diagonal FOV: 94°
Lens Mount: M12*0.5
DORI Distance: Detect: 80 m (262 ft); Observe: 33 m (109 ft); Recognize: 16 m (52 ft); Identify: 8 m (26 ft)
PTZ
Pan/tilt Range: Pan: 0° to 348°, Tilt: 0° to 120°
Pan/tilt Speed:
• Pan Speed: Configurable from 8° to 44°/s; Preset Speed: 44°/s
• Tilt Speed: Configurable from 8° to 44°/s, Preset Speed 44°/s
Manual Control Speed: Configurable from 8° to 35°/s
Presets: 300
Patrol Scan: 8 patrols, up to 8 presets for each patrol
Power-off Memory: Yes; Auto restore to previous PT and lens status after power failure
Park Action: Yes; Preset; Patrol Scan
3D Positioning: Yes
Angle Adjustment (Manual)
Range:
• Pan: 0° to 348°
• Tilt: 0° to 120°
ILLUMINATOR
IR LED:
• Quantity: 2
• Range: 30m
• Wavelength: 850nm
White LED:
• Quantity: 2
• Range: 30m
Illuminator On/Off Control: Auto/Scheduled/Always on/Always off
VIDEO
Max. Resolution: 2560 X 1440
Main Stream:
• Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps; 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720
Sub-Stream:
• Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps; 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Resolution: 736×416, 640x480, 640×360, 352x288, 320x240
Bit Rate Control: CBR, VBR
Video Compression:
• Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264
H.264 Type: High Profile
H.264+: Main Stream Supported
H.265 Type: Main Profile
H.265+: Main Stream Supported
Video Bit Rate:
• Main Stream: 256 Kbps to 3 Mbps
• Sub-Stream: 64 Kbps to 512 Kbps
Image Settings:
• Mirror
• Brightness
• Contrast
• Saturation
• Sharpness
• Exposure
• WDR
• White Balance
• Prevent Overexposure to Infrared Light
• HLC Adjustable by Client Software
• Rotation (90°/270°)
Image Enhancement: BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range: DWDR
SNR: ≥ 52 dB
Image Parameters Switch: Yes
Privacy Mask: Up to 4 Masks
ROI: 1 Region
OSD Setting: Yes
AUDIO
Audio Communication: Two-Way Audio
Audio Input: Yes (Built-in Microphone)
Audio Output: Yes (Built-in Speaker)
Audio Compression: Yes
Audio Sampling Rate: 8KHz
Environment Noise Filtering: Yes
Audio Bit Rate: 64 Kbps(G.711 alaw)
NETWORK
Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP, SMTP, RTMP
ONVIF: Yes
API: Open Network Video Interface (Profile S/T/G)
Simultaneous Live View: 2 Main Streams & 2 Sub-Streams
Client: VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS, VIGI Config Tool, VIGI PC Client
ALARM AND EVENT MANAGEMENT
Smart Event:
• Intrusion Detection
• Line-Crossing Detection
• Region Entering Detection
• Region Exiting Detection
• Object Abandoned Detection
• Object Removal Detection
• Abnormal Sound Detection
• People Detection
• Vehicle Detection
• Video Tampering Detection
• Exception (Illegal Login)
GENERAL
Package Content:
• VIGI Network Camera
• Quick Start Guide
• Waterproof Cable Attachments
• Mounting Accessories
• Power Adapter
Material: Plastic
Net Weight: 0.69 Kg
Protection: IP66 Weatherproof
