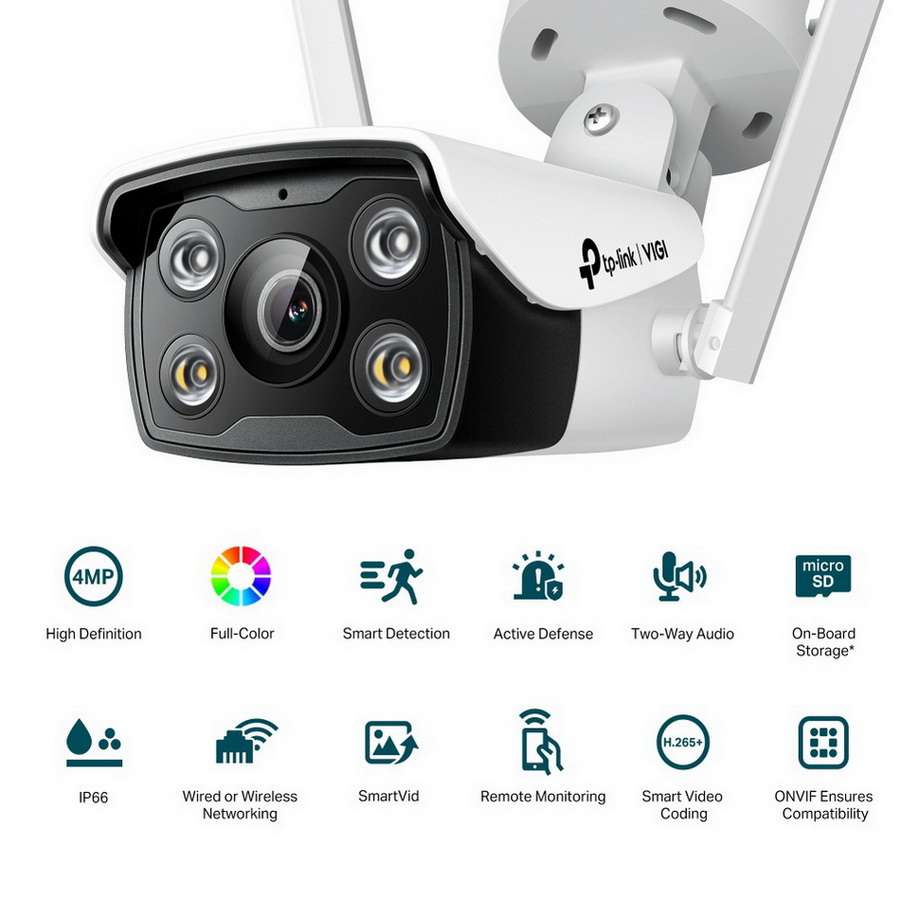

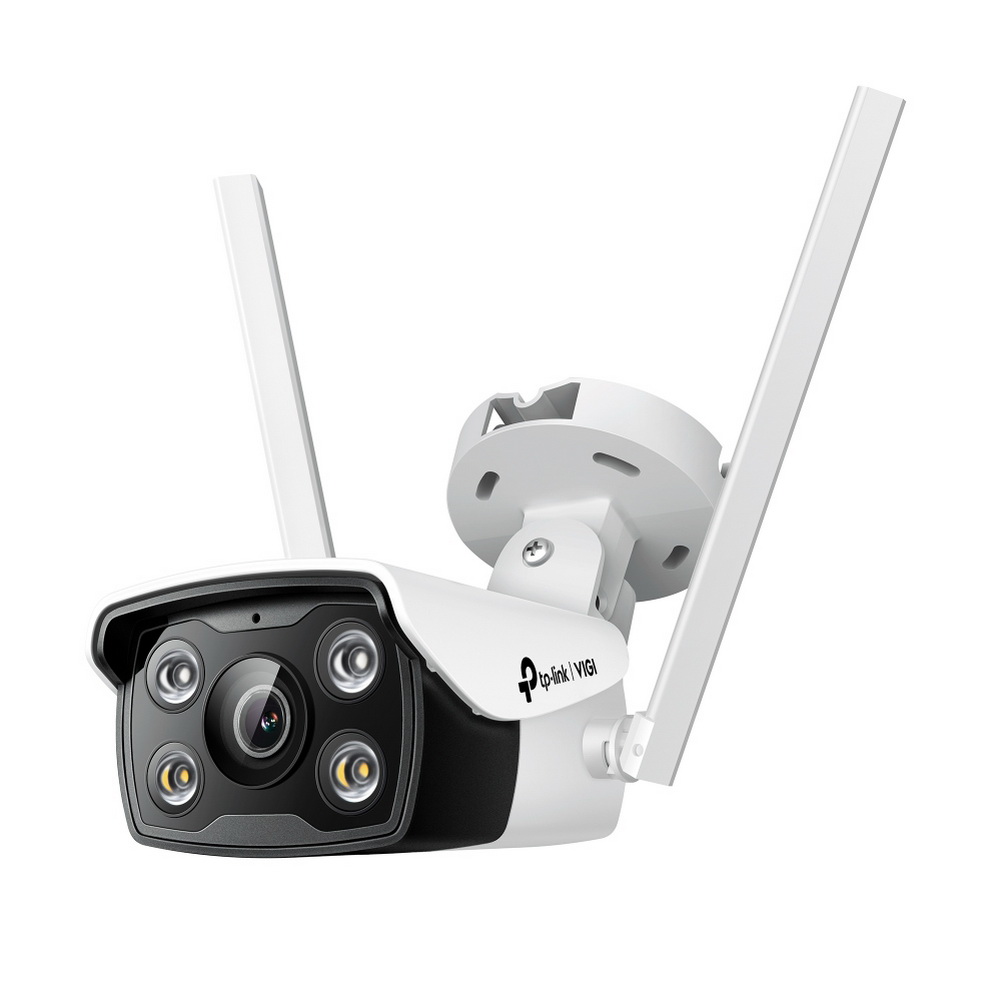

TP-Link Smart Home WiFi Outdoor Camera VIGI C340W
Нема на залиха
5.980,00 ден.
24 рати x 264,00 ден.
- 599883747
- 24 месеци
- Home, Business & Outdoor
• 4MP Super-High Definition and 24h Full-Color
• Wireless Outdoor Connection
• Human & Vehicle Classification
• Smart Detection
• Smart Video Enhancement Technology
• Active Defense and Two-Way Audio
• IP66 Waterproof
• H.265+ Compression Technology
Specifications
CAMERA
Image Sensor: 1/3” Progressive Scan CMOS
Shutter Speed: 1/3 to 1/10000 s
Slow Shutter: Yes
Minimum Illumination: 0.005 Lux; 0 Lux with IR/white light
Day/Night Mechanism: IR Cut Filter
Day/Night Switch: Unified/ Scheduled/ Auto
LENS
Type: Fixed Focal Lens
Focal Length: 4 mm
Aperture: F1.6
FOV: Horizontal FOV: 76.3°, Vertical FOV: 40.6°, Diagonal FOV: 90.2°
Lens Mount: M12
DORI Distance: Detect: 80 m (262 ft); Observe: 33 m (109 ft); Recognize: 16 m (52 ft); Identify: 8 m (26 ft)
Angle Adjustment (Manual)
Range:
• Pan: 0° to 360°
• Tilt: 0° to 90°
• Rotation: 0° to 360°
ILLUMINATOR
IR LED:
• Quantity: 2
• Range: 30m
• Wavelength: 850nm
White LED:
• Quantity: 2
• Range: 30m
Illuminator On/Off Control: Auto/Scheduled/Always on/Always off
VIDEO
Max. Resolution: 2560 X 1440
Main Stream:
• Frame Rate：50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps; 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720
Video Compression:
• Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264
H.264 Type: High Profile
H.264+: Main Stream Supported
H.265 Type: Main Profile
H.265+: Main Stream Supported
Image Settings:
• Mirror
• Brightness
• Contrast
• Saturation
• Sharpness, Exposure, WDR,
• White Balance
• Prevent Overexposure to Infrared Light
• HLC Adjustable by Client Software
• Rotation (90°/270°)
Image Enhancement: BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range: DWDR
SNR: ≥ 52 dB
Image Parameters Switch: Yes
Privacy Mask: Up to 4 Masks
AUDIO
Audio Communication: Two-Way Audio
Audio Input: Yes (Built-in Microphone)
Audio Output: Yes (Built-in Speaker)
Audio Compression: Yes
Audio Sampling Rate: 8KHz
Environment Noise Filtering: Yes
Audio Bit Rate: 64 Kbps(G.711 alaw)
NETWORK
Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP, SMTP, SNMP, RTMP
Simultaneous Live View: 3 Main Streams & 3 Sub-Streams
Client: VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS, VIGI Config Tool, VIGI PC Client
Web Browser:
• Google Chrome® 57 and above
• Firefox® 52 and above
• Safari® 11 and above
• Microsoft® Edge 91 and above
Cloud: Yes
WIRELESS
Standards and Protocols: IEEE 802.11b/g/n
Frequency: 2.4 GHz
Wireless Transmit Power: High
Wireless Rate:
• 11Mbps(802.11b)
• 54Mbps(802.11g)
• 150/300Mbps(802.11n)
Wireless Security: WPA-PSK/WPA2-PSK
Wireless Mode: AP, AP Client
ALARM AND EVENT MANAGEMENT
Smart Event:
• Intrusion Detection
• Line-Crossing Detection
• Region Entering Detection
• Region Exiting Detection
• Object Abandoned/Removal Detection
• Scene Change Detection
• Abnormal Sound Detection
• People Detection
• Vehicle Detection
• Loitering Detection
INTERFACES
Network Interface: 1 RJ45 10/100M Self-Adaptive Ethernet Port
Reset Button: Yes
Power: DC Power Port
On-board Storage: Built-In Memory Card Slot, Support MicroSD Card, Up to 512 GB
Built-in Microphone: Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera
Built-in Speaker: Yes
GENERAL
Package Content:
• VIGI Network Camera
• Quick Start Guide
• Waterproof Cable Attachments
• Power Adapter
• Mounting Accessories
Material: Plastic
Net Weight: 0.38 Kg
Power Supply: 9-12V DC/0.85-1.0A, 5.5mm Coaxial Power Plug
Antenna:
• Quantity: 2
• Type: 2.4GHz Welded Dipole Omni-Directional Antenna
• Gain: 2.0dBi
Protection: IP66 Waterproof
Product Dimensions (L x W x H): 3.1 × 7.4 × 3.7 in (78.5 × 188.0 × 161.89 mm)
Повеќе информации
• Wireless Outdoor Connection
• Human & Vehicle Classification
• Smart Detection
• Smart Video Enhancement Technology
• Active Defense and Two-Way Audio
• IP66 Waterproof
• H.265+ Compression Technology
Specifications
CAMERA
Image Sensor: 1/3” Progressive Scan CMOS
Shutter Speed: 1/3 to 1/10000 s
Slow Shutter: Yes
Minimum Illumination: 0.005 Lux; 0 Lux with IR/white light
Day/Night Mechanism: IR Cut Filter
Day/Night Switch: Unified/ Scheduled/ Auto
LENS
Type: Fixed Focal Lens
Focal Length: 4 mm
Aperture: F1.6
FOV: Horizontal FOV: 76.3°, Vertical FOV: 40.6°, Diagonal FOV: 90.2°
Lens Mount: M12
DORI Distance: Detect: 80 m (262 ft); Observe: 33 m (109 ft); Recognize: 16 m (52 ft); Identify: 8 m (26 ft)
Angle Adjustment (Manual)
Range:
• Pan: 0° to 360°
• Tilt: 0° to 90°
• Rotation: 0° to 360°
ILLUMINATOR
IR LED:
• Quantity: 2
• Range: 30m
• Wavelength: 850nm
White LED:
• Quantity: 2
• Range: 30m
Illuminator On/Off Control: Auto/Scheduled/Always on/Always off
VIDEO
Max. Resolution: 2560 X 1440
Main Stream:
• Frame Rate：50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps; 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720
Video Compression:
• Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264
H.264 Type: High Profile
H.264+: Main Stream Supported
H.265 Type: Main Profile
H.265+: Main Stream Supported
Image Settings:
• Mirror
• Brightness
• Contrast
• Saturation
• Sharpness, Exposure, WDR,
• White Balance
• Prevent Overexposure to Infrared Light
• HLC Adjustable by Client Software
• Rotation (90°/270°)
Image Enhancement: BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range: DWDR
SNR: ≥ 52 dB
Image Parameters Switch: Yes
Privacy Mask: Up to 4 Masks
AUDIO
Audio Communication: Two-Way Audio
Audio Input: Yes (Built-in Microphone)
Audio Output: Yes (Built-in Speaker)
Audio Compression: Yes
Audio Sampling Rate: 8KHz
Environment Noise Filtering: Yes
Audio Bit Rate: 64 Kbps(G.711 alaw)
NETWORK
Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP, SMTP, SNMP, RTMP
Simultaneous Live View: 3 Main Streams & 3 Sub-Streams
Client: VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS, VIGI Config Tool, VIGI PC Client
Web Browser:
• Google Chrome® 57 and above
• Firefox® 52 and above
• Safari® 11 and above
• Microsoft® Edge 91 and above
Cloud: Yes
WIRELESS
Standards and Protocols: IEEE 802.11b/g/n
Frequency: 2.4 GHz
Wireless Transmit Power: High
Wireless Rate:
• 11Mbps(802.11b)
• 54Mbps(802.11g)
• 150/300Mbps(802.11n)
Wireless Security: WPA-PSK/WPA2-PSK
Wireless Mode: AP, AP Client
ALARM AND EVENT MANAGEMENT
Smart Event:
• Intrusion Detection
• Line-Crossing Detection
• Region Entering Detection
• Region Exiting Detection
• Object Abandoned/Removal Detection
• Scene Change Detection
• Abnormal Sound Detection
• People Detection
• Vehicle Detection
• Loitering Detection
INTERFACES
Network Interface: 1 RJ45 10/100M Self-Adaptive Ethernet Port
Reset Button: Yes
Power: DC Power Port
On-board Storage: Built-In Memory Card Slot, Support MicroSD Card, Up to 512 GB
Built-in Microphone: Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera
Built-in Speaker: Yes
GENERAL
Package Content:
• VIGI Network Camera
• Quick Start Guide
• Waterproof Cable Attachments
• Power Adapter
• Mounting Accessories
Material: Plastic
Net Weight: 0.38 Kg
Power Supply: 9-12V DC/0.85-1.0A, 5.5mm Coaxial Power Plug
Antenna:
• Quantity: 2
• Type: 2.4GHz Welded Dipole Omni-Directional Antenna
• Gain: 2.0dBi
Protection: IP66 Waterproof
Product Dimensions (L x W x H): 3.1 × 7.4 × 3.7 in (78.5 × 188.0 × 161.89 mm)
