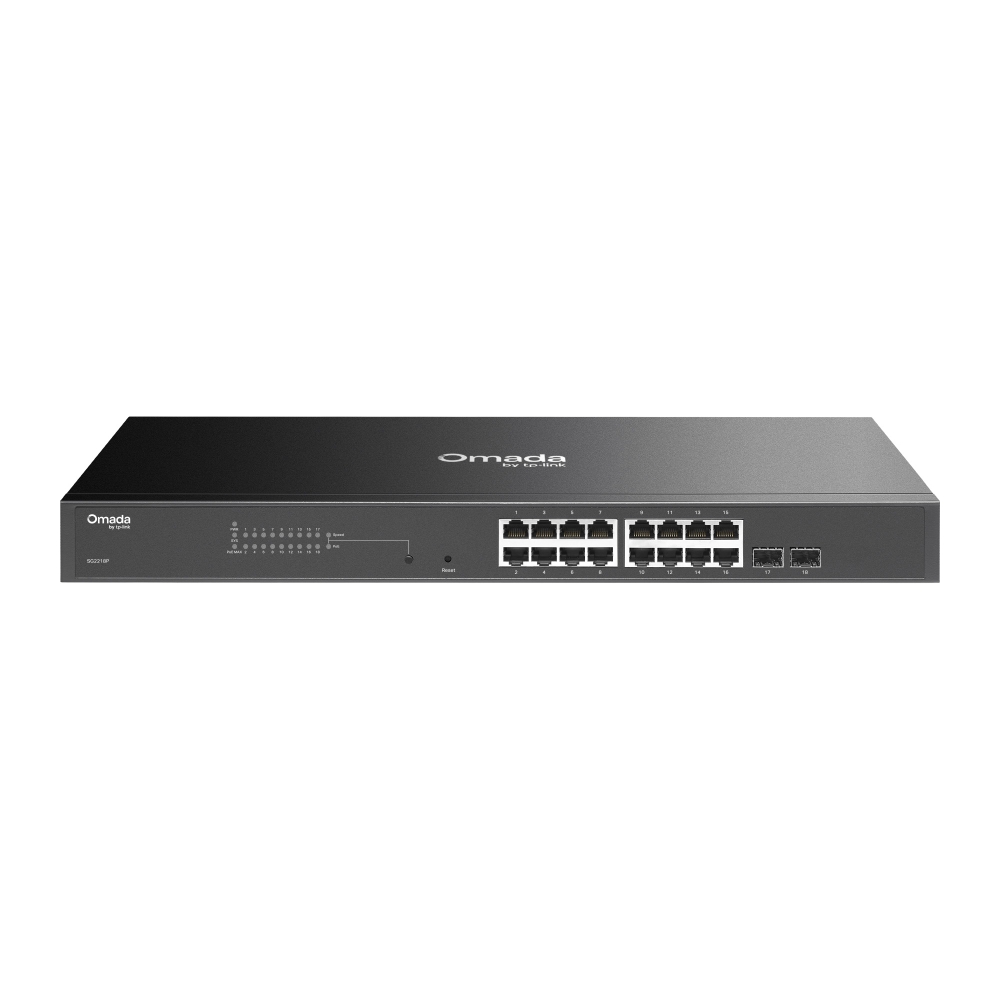

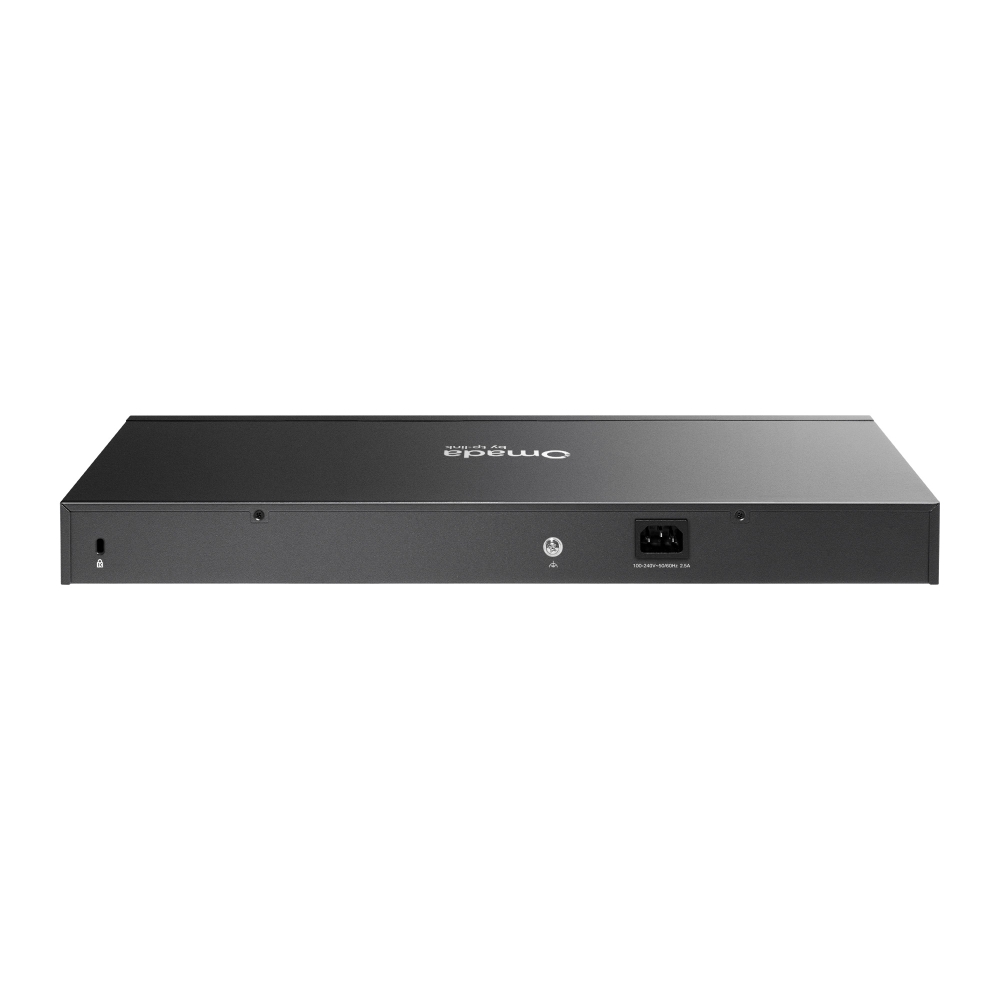

TP-Link Switch 18port 10/100/1000 TL-SG2218P Rack mountable w/2 SFP ports POE+
Нема на залиха
18.480,00 ден.
24 рати x 814,00 ден.
- 747069066
- 24 месеци
- Мрежа, алати, кабли и адаптери
• 16× Gigabit 802.3af/at PoE+ ports and 2× Gigabit SFP Slots
• 150 W total PoE budget with up to 30 W PoE output per port*
• Centralized cloud management via the web or the Omada app†
• Standalone management via web, CLI, SNMP, and RMON
• Static Routing helps route internal traffic for higher efficiency
• VLAN, ACL, QoS, and IGMP Snooping
• Fanless design for silent operation
• Durable metal casing and rackmountable design
Specifications
HARDWARE FEATURES
Interface:
• 16× 10/100/1000 Mbps PoE+ RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
• 2× Gigabit SFP Slots
Fan Quantity: Fanless Design
Physical Security Lock: Yes
Power Supply: 100-240V AC, 50/60Hz
PoE Ports (RJ45):
• Standard: 802.3at/af compliant
• PoE+ Ports: 16 Ports (up to 30 W PoE Output per Port)
• PoE Power Budget: 150 W*
• Fast PoE & Perpetual PoE
Dimensions ( W x D x H ): 17.3×7.1×1.7 in (440×180×44 mm)
Surge Protection: ±6 kV
Mounting: Rack Mountable
Max. Power Consumption:
• 172.9 W (220 V/50 Hz @ 25 °C) (with 150 W PD connected)
• 178.2 W (110 V/60 Hz @ 25 °C) (with 150 W PD connected)
Max Heat Dissipation:
• 588.00 BTU/hr (220 V/50 Hz @ 25 °C) (with 150 W PD connected)
• 605.81 BTU/hr (110 V/60 Hz @ 25 °C) (with 150 W PD connected)
PERFORMANCE
Packet Buffer Memory: 4.1 Mbit
Jumbo Frame: 9 KB
Switching Capacity: 36 Gbps
Packet Forwarding Rate: 26.78 Mpps
MAC Address Table: 8K
SOFTWARE FEATURES
Quality of Service:
• 802.1p CoS/DSCP priority
• 8 priority queues
• Priority Schedule Mode
• SP (Strict Priority)
• WRR (Weighted Round Robin)
• Queue Weight Config
• Bandwidth Control
• Port/Flow based Rating Limit
• Smoother Performance
• Storm Control
• Multiple Control Modes(kbps/ratio)
• Broadcast/Multicast/Unknown-Unicast Control
Advanced Features:
• Automatic Device Discovery†
• Batch Configuration†
• Batch Firmware Upgrading†
• Intelligent Network Monitoring†
• Abnormal Event Warnings†
• Unified Configuration†
• Reboot Schedule†
VLAN:
• VLAN Group
• Max. 4K VLAN Groups
• 802.1Q tag VLAN
• MAC VLAN: 12 Entries
• Protocol VLAN
• GVRP
• Voice VLAN
Access Control List:
• Support up to 230 entries
• Time-Range
• Time-based ACL
• MAC ACL
• IP ACL
• IPv6 ACL
• Combined ACL
• Rule Operation: Permit/Deny
• Policy Action
• Mirroring
• Redirect
• Rate Limit
• QoS Remark
• ACL Rules Binding
• Port Binding
• VLAN Binding
• Actions for flows
• Mirror (to supported interface)
• Redirect (to supported interface)
• Rate Limit
• QoS Remark
Management Features
Omada App: Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management:
• Omada Cloud-Based Controller (Requires built-in version 5.15.22 or later)
• Omada Hardware Controller (Requires built-in version 5.15.20 or later)
• Omada Software Controller (Requires built-in version 5.15.20 or later)
Cloud Access: Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller
Management Features:
• Web-based GUI
• Command Line Interface (CLI) through telnet
• SNMPv1/v2c/v3
• SNMP Trap/Inform
• RMON (1,2,3,9 groups)
• SDM Template
• DHCP/BOOTP Client
• Dual Image, Dual Configuration
• CPU Monitoring
• Cable Diagnostics
• EEE
• SNTP
• System Log
• Dying Gasp
• ONVIF
• Digital Diagnostic Monitoring (DDM)
OTHERS
Certification: CE, FCC, RoHS
Package Content:
• SG2218P
• Power Cord
• Installation Guide
• Mounting Brackets
• Screws
• Rubber Feet
System Requirements: Microsoft® Windows® XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
