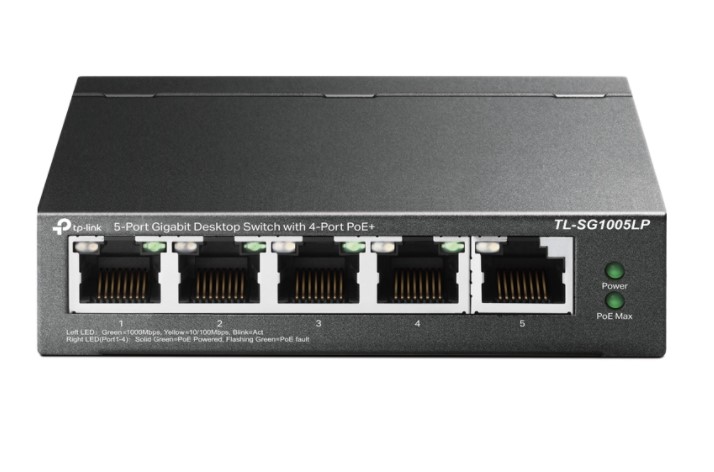

TP-Link Switch 5port Gigabit Desktop TL-SG1005LP w/4port POE
Нема на залиха
1.690,00 ден.
24 рати x 75,00 ден.
- 599872446
- 24 месеци
- Мрежа, алати, кабли и адаптери

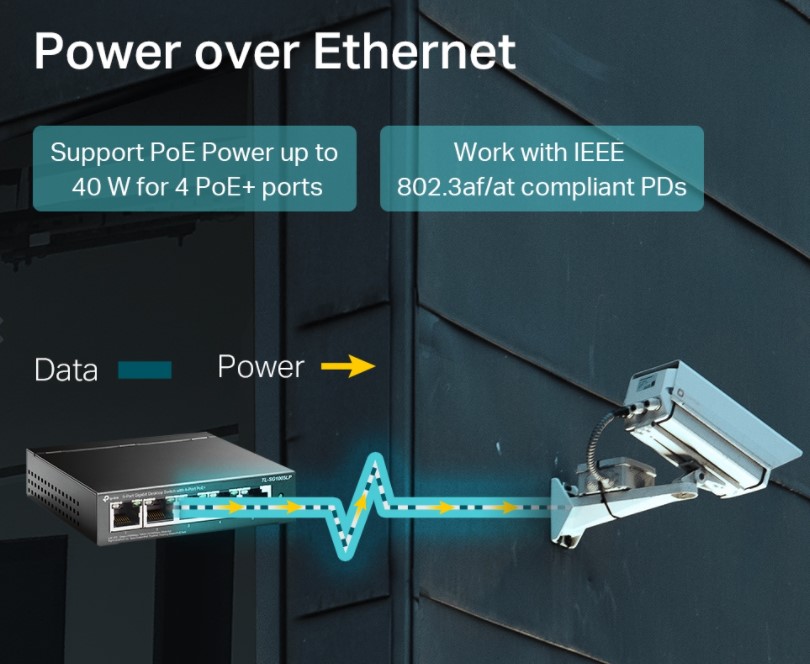

• 4× gigabit PoE+ ports with up to 30 W PoE output per port*
• 40 W total PoE budget*
• Up to 250m data and power transmitting range under Extend Mode**
• Automatically reboots your dropped or unresponsive PoE-powered devices.
• Simply plug and play for instant connectivity with no configuration required.
• Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses.
• Desktop / Wall-mounting
Specifications
HARDWARE FEATURES
Interface:
• 5× 10/100/1000Mbps RJ45 Ports
• AUTO Negotiation
• AUTO MDI/MDIX
Network Media:
• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity: Fanless
External Power Supply: External Power Adapter (Output: 53.5 VDC / 0.81 A)
Packet Forwarding Rate: 7.44 Mpps
PoE Ports (RJ45):
• Standard: 802.3 af/at compliant
• PoE Ports: Ports 1–4
• Power Supply: 40 W
Mac Address Table: 2K
Jumbo Frame: 16 KB
Switching Capacity: 10 Gbps
Dimensions ( W x D x H ): 3.9×3.9×1.0 in (99.8×98×25 mm)
Max. Power Consumption:
• 4.12 W (220/50 Hz. no PD connected)
• 47.5 W (220/50 Hz. with 40 W PD connected)
Max Heat Dissipation:
• 14.05 BTU/h (no PD connected)
• 161.98 BTU/h (with 40 W PD connected)
SOFTWARE FEATURES
Advanced Features:
• Extend Mode: Ports 1–2
• PoE Auto Recovery: Ports 1-4
• Compatible With IEEE 802.3af/at Compliant PDs
• Mac Address Auto-Learning And Auto-Aging
• IEEE 802.3x Flow Control
• 802.1p/DSCP QoS
• IGMP Snooping
Transmission Method: Store-And-Forward
OTHERS
Certification: FCC, CE, RoHS
Package Content:
• TL-SG1005LP
• Power Adapter
• Installation Guide
Environment:
• Operating Temperature: 0–40 ℃ (32–104 ℉);
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
