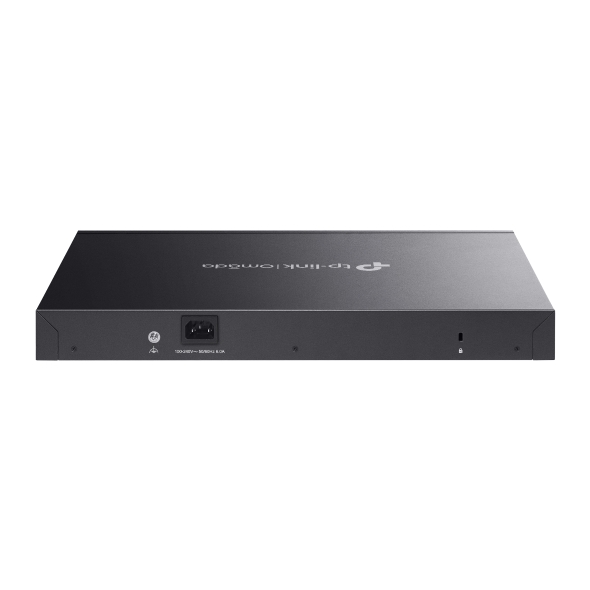

TP-Link Switch Omada 28-Port Gigabit L2+ Managed with 24-Port PoE+ TL-SG3428MP
Нема на залиха
23.980,00 ден.
24 рати x 1.057,00 ден.
- 747066228
- 24 месеци
- Мрежа, алати, кабли и адаптери
• 384 W PoE Budget: 24× 802.3at/af-compliant PoE+ ports with a total power supply of 384 W*.
• Full Gigabit Ports: 24× gigabit PoE+ ports and 4× gigabit SFP Slots provide high-speed connections.
• Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring..
• Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
• Static Routing: Helps route internal traffic for more efficient use of network resources.
• Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
• Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
• Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities.
Specifications
HARDWARE FEATURES
Interface:
• 24× 10/100/1000Mbps RJ45 Ports
• 4× Gigabit SFP Slots
• 1× RJ45 Console Port
• 1× Micro-USB Console Port
Fan Quantity: 2
Power Supply: 100-240 V AC~50/60 Hz
PoE Ports (RJ45):
• Standard: 802.3at/af compliant
• PoE+ Ports: 24 Ports, up to 30 W per port
• Power Budget: 384 W*
Dimensions ( W x D x H ): 17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm)
Mounting: Rack Mountable
Max. Power Consumption:
• V1: 463.8 W (110 V/60 Hz) (with 384 W PD connected); 31.0 W (110 V/60 Hz) (no PD connected)
• V2: 465.8 W (110 V/60 Hz) (with 384 W PD connected); 34.4 W (110 V/60 Hz) (no PD connected)
• V3: 442.1 W (220 V/50 Hz) (with 384 W PD connected)
• V4: 460.8 W (110 V/60 Hz) (with 384 W PD connected)
• V5: 456.4 W (110 V/60 Hz) (with 384 W PD connected)
Max Heat Dissipation:
• V1: 1582.49 BTU/h (110 V/60 Hz) (with 384 W PD connected); 105.78 BTU/h (110 V/60 Hz) (no PD connected)
• V2: 1589.31 BTU/hr (110 V/60 Hz) (with 384 W PD connected); 117.38 BTU/hr (110 V/60 Hz) (no PD connected)
• V3: 1508.67 BTU/hr (220 V/50 Hz) (with 384 W PD connected)
• V4: 1572.48 BTU/hr (110 V/60 Hz) (with 384 W PD connected)
• V5: 1557.47 BTU/hr (110 V/60 Hz) (with 384 W PD connected)
PERFORMANCE
Switching Capacity: 56 Gbps
Packet Forwarding Rate: 41.66 Mpps
MAC Address Table:
• V1: 8K
• V2 and above: 16K
Packet Buffer Memory: 4.1 Mbit
Jumbo Frame: 9 KB
SOFTWARE FEATURES
Quality of Service:
• 8 priority queues
• 802.1p CoS/DSCP priority
• Queue scheduling
• SP (Strict Priority)
• WRR (Weighted Round Robin)
• SP+WRR
• Bandwidth Control
• Port/Flow based Rating Limiting
• Smoother Performance
• Action for Flows
• Mirror (to supported interface)
• Redirect (to supported interface)
• Rate Limit
• QoS Remark
L3 Features:
• 32 IPv4/IPv6 Interfaces (v1); 128 IPv4/IPv6 Interfaces (v2~v6)
• Static Routing
• 48 static routes
• Static ARP
• 128 static entries
• 316 ARP Entries (512 ARP Entries for TL-SG3428 V2.0 & TL-SG3428MP V2.0)
• Proxy ARP
• Gratuitous ARP
• DHCP Server
• DHCP Relay
• DHCP interface relay
• DHCP VLAN relay
• DHCP L2 Relay
Advanced Features:
• Automatic Device Discovery
• Batch Configuration
• Batch Firmware Upgrading
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
Management Features
Omada App: Yes, through
• Omada Cloud-Based Controller
• OC300
• OC200
• Omada Software Controller
OTHERS
Certification: CE, FCC, RoHS
Package Content:
• TL-SG3428MP Switch
• Power Cord
• Quick Installation Guide
• Rackmount Kit
• Rubber Feet
System Requirements: Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Environment:
• Operating Temperature: 0–45 ℃ (32–113 ℉);
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
