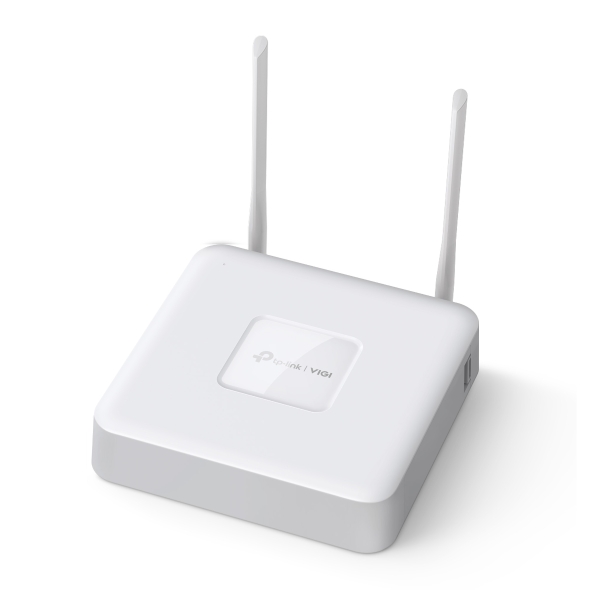

TP-Link Video Recorder 8 Channel WiFi VIGI NVR1108H-W
Нема на залиха
9.980,00 ден.
24 рати x 440,00 ден.
- 747066241
- 24 месеци
- Home, Business & Outdoor
• 8-Channel Live View and 4K HDMI Video Output
• Built-in Routering Module and Support Wireless Pairing
• Up to 8-ch @ 2MP (25fps) / 4-ch @ 4MP (25fps) Decoding Capability
• 8-Channel Synchronous Playback
• 80 Mbps Incoming Bandwidth and 60 Mbps Outgoing Bandwidth
• 1 SATA Interface (up to 10 TB)
• H.265+ Compression Technology
• HDMI and VGA Simultaneous Output
• Remote Monitoring
Specifications
Video and Audio
IP Video Input: 8-Channel
Incoming Bandwidth: 80 Mbps
Outgoing Bandwidth: 60 Mbps
HDMI Output Resolution: 1 Channel, Resolution: 3840 ×2160/30Hz, 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
VGA Output Resolution: 1 Channel, Resolution: 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
Video Output Mode: HDMI/VGA Simultaneous Output
Multi-View Display: 1/4/6/8
DECODING
Audio Compression: G.711A/G.711U/G.726
Video Compression: H.265+/H.265/ H.264+/H.264
Record Resolution: 8 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
Synchronous Playback: 8-Channel
Capability:
• 25fps: 2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP
• 30fps: 4-ch @ 3MP, 2-ch @ 5MP
Record Management
Record Mode:
• Manual Recording
• Scheduling Recording
• Motion Detection Recording
Playback Mode:
• Instant Playback
• Regular Playback
• Tag Playback
• Event Playback
Backup Mode:
• Regular Backup
• Video Clip Backup
Playback Function:
• Play
• Pause
• Stop
• Fast Forward
• Fast Backward
• Play By Frame
• Video Clip
• Export Clip
• Lock Recording
• Audio On/Off
NETWORK
Protocol: UPnP (Plug and Play), NTP (Network Timing), SMTP, DNS, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP
Mobile Phone Access: Android, iOS
Web Browser: Chrome (57+), Firefox (52+), Edge (91+)
Interoperability: ONVIF Profile S/T, CGI
WIRELESS
Standards and Protocols: IEEE 802.11b/g/n
WiFi Channels:
• UN: 1-13
• US: 1-11
Wireless Name:
• SSID Configuration
• Radio
Network Switch: Yes
Frequency: 2.4 GHz
Radio Bandwidth:
• Auto: Yes
• 20M: Yes
• 40M: Yes
Wireless Rate: 300Mbps(802.11n), 2 × 2 MIMO
Wireless Security: WPA-PSK/WPA2-PSK

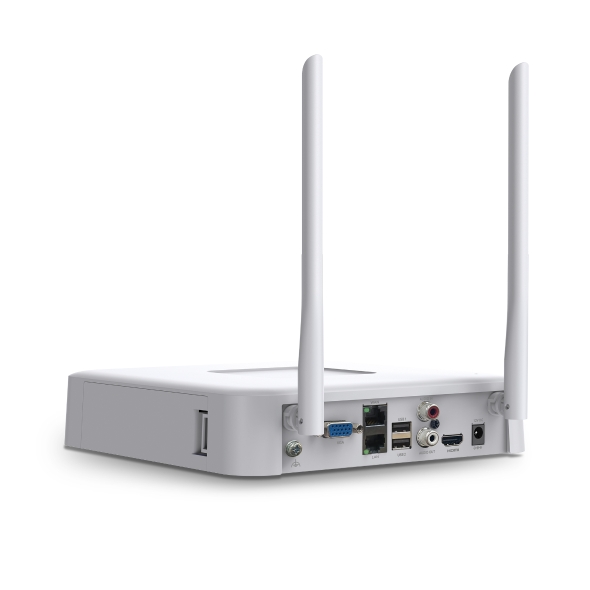

External Interface
Network Interface:
• 1× RJ-45 10/100 Mbps Self-Adaptive WAN/LAN Ethernet Interface
• 1× RJ-45 10/100 Mbps Self-Adaptive LAN Ethernet Interface
USB Interface: 2× USB 2.0
Audio Interface: 1-ch RCA Input; 1-ch RCA Output
Alarm In/Out: N/A
Serial Interface: N/A
Power: 1× DC Jack
Reset Button: 1
Speaker: 1; Real-time Audio Output without Needing Peripherals.
eSATA: N/A
HDMI: 1
VGA: 1
HARD DISK
SATA: 1 SATA Interface
Capacity: Up to 10 TB Capacity for Each HDD
Alarm
General Alarm:
• Motion Detection
• Video Tampering
• Scene Change Detection
• Line-Crossing Detection
• Intrusion Detection
• Region Entering Detection
• Region Exiting Detection
• Loitering Detection
• Object Abandoned/Removal Detection
• Vehicle Detection
• Human Detection
• Abnormal Sound Detection
• Smart Frame
Anomaly Alarm:
• Video Loss
• Offline and IP Conflict
• Disk Exception
• Login Exception
Alarm Linkage:
• Recording
• White Light Alarm
• Log
• Audible Alarm
GENERAL
Package Content:
• VIGI Network Video Recorder
• Power Adapter
• HDD Screws
• Mouse
• Rubber Feet
• Quick Installation Guide
Working Temperature:
• NVR: -10 ℃ to 55 °C (14 ℉ to 131 ℉）
• Power Adapter: 0 ℃ to 40 °C (32 ℉ to 104 ℉)
Working Humidity: 10%~90% RH Non-Condensing
Dimensions( W X D X H ): Excluding Antennas: 7.9 × 7.9 × 1.7 in (200.3 × 200.3 × 43 mm)
Max. Power Consumption:
• 5.7 W (Without Disk)
• 16.3 W (Without Disk)
Antenna:
• Quantity: 2
• Type: 2.4GHz Welded Non-detachable Antenna
• Gain: 5.3dBi
• Radio Frequency Transmit Power: 16dBm
• Length: 198.8 mm for Long Side and 189 mm for Short Side
