• Cutting-edge 4G network – share internet access with up to 64 Wi-Fi devices and enjoy download speeds of up to 150 Mbps
• AC1200 Wi-Fi – creates simultaneous dual band Wi-Fi networks, with maximum speeds of up to 300 Mbps on the 2.4 GHz band and 867 Mbps on the 5 GHz band
• Plug a SIM card and play – no configurations needed, compatibility for SIM cards in 100+ countries are assured by years of field tests
• Two detachable advanced LTE antennas – enjoy stable and efficient connections to every device thanks to the two external antennas

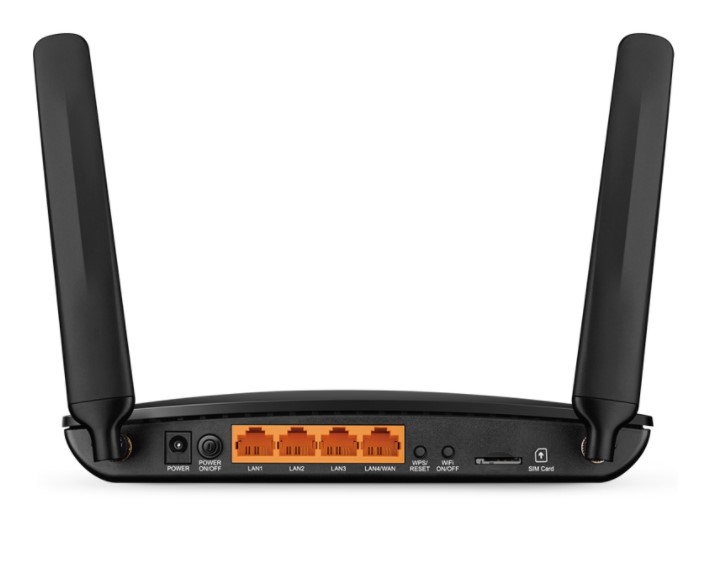

• Wi-Fi router mode – plug an Ethernet cable into the LAN/WAN port for flexible access if you can't get a 4G connection
Specifications
HARDWARE FEATURES
Interface:
• 3× 10/100Mbps LAN Ports
• 1× 10/100Mbps LAN/WAN Port
• 1× Micro SIM Card Slot
• 2× External SMA-F Antenna Interface
Button: WPS/RESET Button, Wi-Fi ON/OFF Button
External Power Supply: 12V/1A
Dimensions ( W x D x H ): 6.85 × 4.9 × 1.32 in (174 × 124.5 × 33.5 mm)
Antenna: 2× Detachable External 4G LTE Antennas
WIRELESS FEATURES
Wireless Standards: IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz
Frequency: 2.4 GHz and 5 GHz
Signal Rate: 300Mbps at 2.4GHz, 867Mbps at 5GHz
Reception Sensitivity:
5 GHz:
• 11a 54M: -77 dBm
• 11ac VHT20 MCS0: -95.5 dBm 11ac VHT20 MCS8: -73 dBm
• 11ac VHT40 MCS0: -93 dBm 11ac VHT20 MCS9: -68 dBm
• 11ac VHT80 MCS0: -90 dBm 11ac VHT20 MCS9: -65 dBm
2.4 GHz:
• 11g 54M: -74.5 dBm
• 11n HT20 MCS0: -92 dBm 11n HT20 MCS7: -73 dBm
• 11n HT40 MCS0: -89 dBm 11n HT40 MCS7: -70 dBm
Wireless Functions: Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics
WAN Failover: Yes
Wireless Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
Transmission Power: < 20 dBm (2.4 GHz), < 23 dBm (5 GHz)
Network Type:
• 4G: FDD-LTE B1/B3/B7/B8/B20 (2100/1800/2600/900/800 MHz)
• TDD-LTE B38/B40/B41 (2600/2300/2500 MHz)
• 3G: DC-HSPA+/HSPA+/HSPA/UMTS B1/B8 (2100/900 MHz)
SOFTWARE FEATURES
Quality of Service: Prioritizes network traffic by device or application
Operating Modes: 3G/4G Router, Wireless Router
WAN Type: Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)
Management Features: Access Control, Local Management, Remote Management reboot schedule
DHCP: Server, Client, DHCP Client List, Address Reservation
Port Forwarding: Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS: DynDns, NO-IP
VPN: PPTP VPN, OpenVPN
Access Control: Parental Control, Local Management Control
Firewall Security: DoS, SPI Firewall, IP Address Filter/Domain Filter, IP and MAC Address Binding
Protocols: Supports IPv4 and IPv6
Guest Network: 2.4GHz guest network x 1, 5GHz guest network x 1
OTHERS
Certification: CE, RoHS
Package Content:
• AC1200 Wireless Dual Band 4G LTE Router, Archer MR400
• RJ45 Ethernet Cable
• 1.5m Power Adapter
• Quick Installation Guide
System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 browsers or higher, or other Java-enabled browsers
Micro SIM Card
Environment:
• Operating Temperature: 0℃~40℃ (32℉ ~104℉)
• Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
