• High Speed WiFi– Up to 600Mbps speeds with 200Mbps on 2.4GHz and 433 Mbps on 5GHz, upgrades your devices to higher AC WiFi speeds.
• Dual Band Wireless – 2.4GHz and 5GHz band for flexible connectivity, upgrades your devices to work with the latest dual-band WiFi router for faster speed and extended range.

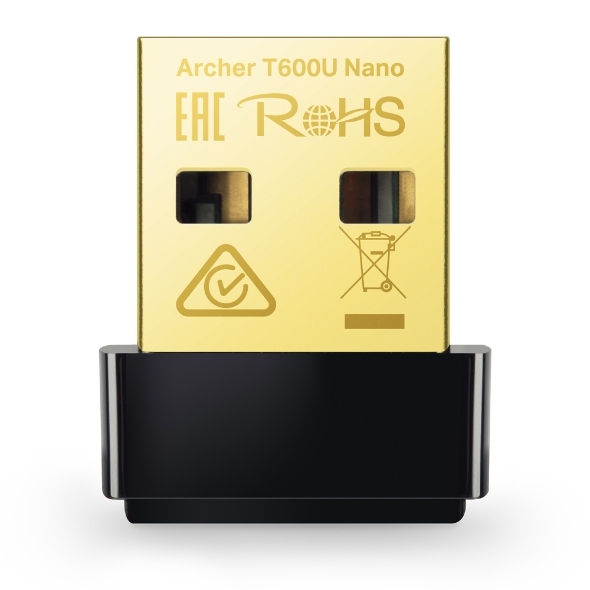

• Nano design – Small, unobtrusive design allows you to plug it in and forget it is even there
• Operating System – Supports Windows 11/10/8.1/8/7/XP, Mac OS X
• Advanced Security –Supports 64/128-bit WEP, WPA/WPA2, and WPA-PSK/WPA2-PSK encryption standards
Specifications
HARDWARE FEATURES
Interface: USB 2.0
Dimensions ( W x D x H ): 15*7.1*18.6mm
Antenna: Omni Directional
WIRELESS FEATURES
Wireless Standards: IEEE 802.11ac, IEEE 802.11a,
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency: 5GHz; 2.4GHz
Signal Rate:
5GHz
• 11ac: Up to 433Mbps(dynamic)
• 11n: Up to 150Mbps(dynamic)
• 11a: Up to 54Mbps(dynamic)
2.4GHz
• 11n: Up to 200Mbps(dynamic)
• 11g: Up to 54Mbps(dynamic)
• 11b: Up to 11Mbps(dynamic)
Reception Sensitivity:
5GHz:
• 11a 6Mbps: -90dBm
• 11a 54Mbps: -73dBm
• 11n HT20 MCS0: -89dBm
• 11n HT20 MCS7: -70dBm
• 11n HT40 MCS0: -86dBm
• 11n HT40 MCS7: -67dBm
• 11ac VHT80 MCS0: -82dBm
• 11ac VHT80 MCS9: -56dBm
2.4GHz:
• 11b 1Mbps: -96dBm
• 11b 11Mbps: -88dBm
• 11g 6Mbps: -89dBm
• 11g 54Mbps: -74dBm
• 11n HT20 MCS0: -89dBm
• 11n HT20 MCS7: -72dBm
• 11n HT40 MCS0: -86dBm
• 11n HT40 MCS7: -66dBm
Wireless Modes: Ad-Hoc / Infrastructure mode
Wireless Security: Support 64/128 bit WEP, WPA-PSK/WPA2-PSK, 802.1x
Modulation Technology: DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM
Transmission Power: <20dBm (EIRP)
OTHERS
Certification: CE, FCC, RoHS
Package Content:
• AC600 Nano Wireless USB Adapter Archer T2U Nano
• Resource CD
• Quick Installation Guide
System Requirements: Windows 11/10/8.1/8/7/XP (32/64bits), Mac OS X 10.9-10.13
Environment:
• Operating Temperature: 0℃~40℃ (32℉~104℉)
• Storage Temperature: -40℃~70℃ (-40℉~158℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
