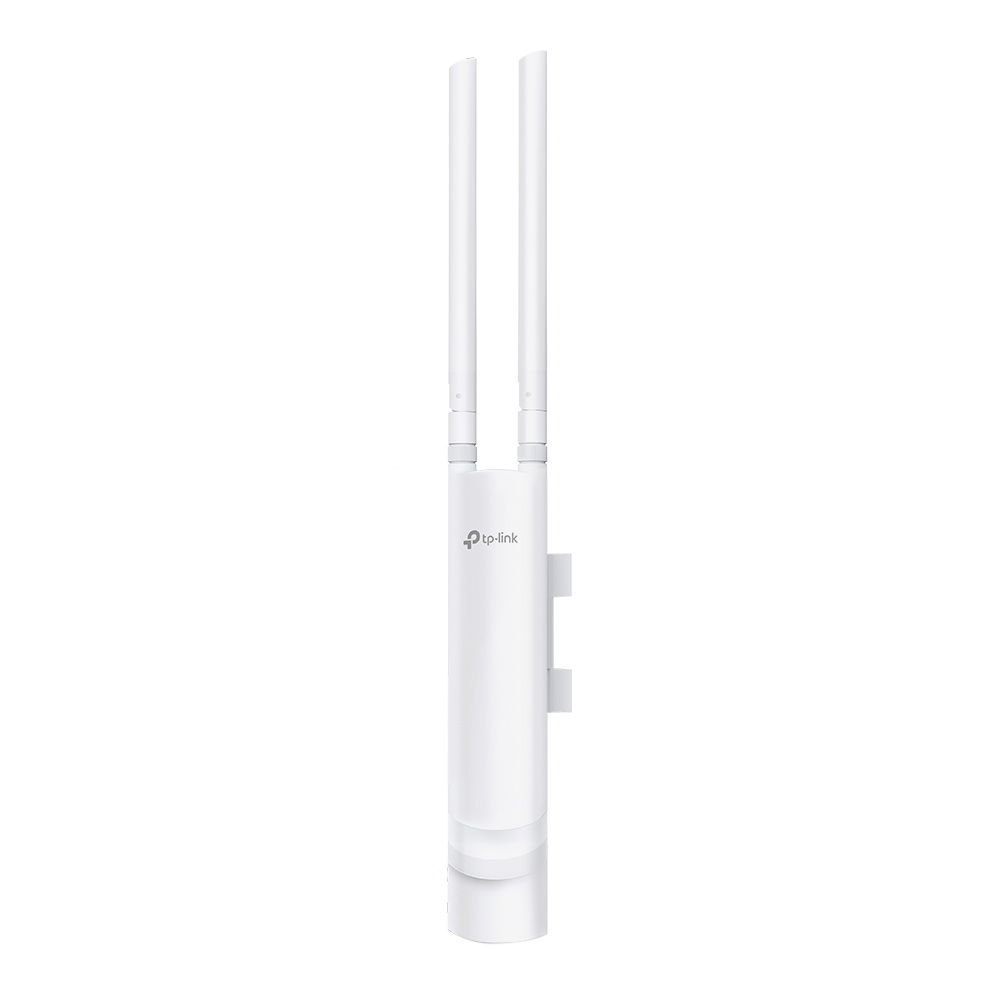

TP-Link Wireless AC1200 Indoor/Outdoor MI-MIMO Access Point EAP225-OUTDOOR
Нема на залиха
5.280,00 ден.
24 рати x 233,00 ден.
- 599883738
- 24 месеци
- Мрежа, алати, кабли и адаптери
• Seamless 1.2 Gbps Wi-Fi Speeds: 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz.†
• Dual-Band Omnidirectional Coverage: Up to 300 m (984 ft) long-range coverage.§
• PoE Support: Support both standard 802.3af and Passive PoE (PoE adapter included) for flexible installations.
• Ideal for Outdoor Environments: IP65 weatherproof, 6 kV lightning protection, and a reliable operating range of -40 °C to +70 °C.△
• Easy and Quick Setup: Wall/pole mounting; Omada SDN for one-click setup.
• Advanced Features: Omada Mesh, Seamless Roaming, and Centralized Cloud Management.*
Specifications
HARDWARE FEATURES

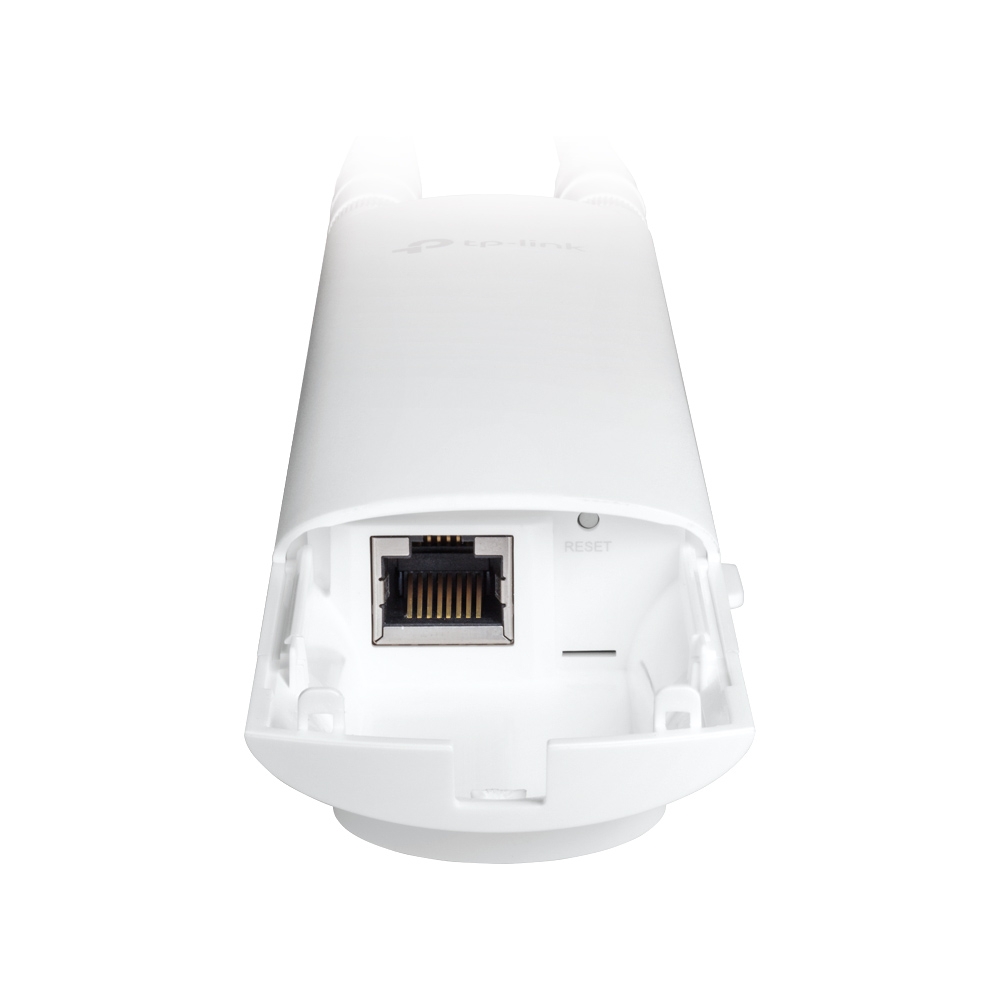

Interface: 1× Gigabit Ethernet (RJ-45) Port (Support 802.3af/at PoE (Alternative A) and Passive PoE)
Button: Reset
Power Supply:
• 802.3af PoE
• 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included - For Dry Indoor Use Only)
Max. Power Consumption: 10.5W
Dimensions ( W x D x H ): 1.8 × 1.1 × 8.5 in (46 × 26.7 × 214.9 mm) (without antenna & mounting kit)
Antenna:
• 2 Dual-Band Omni Antennas (External Detachable)
• 2.4 GHz: 2× 3 dBi
• 5 GHz: 2× 5 dBi
Weatherproof Enclosure: IP65
Mounting: Pole/Wall Mounting (Kits included)
WIRELESS FEATURES
Wireless Standards: IEEE 802.11a/b/g/n/ac
Frequency: 2.4GHz, 5GHz
Signal Rate:
15:38 19.12.2025• 802.11ac: 6.5 Mbps to 867 Mbps(MCS0-MCS9,NSS = 1 to 2 VHT20/40/80)
• 802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, HT 20/40)
• 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11b: 1, 2, 5.5, 11Mbps
• 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Wireless Functions:
• Multiple SSIDs（Up to 16 SSIDs, 8 for each band）
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control （Adjust Transmit Power on dBm）
• QoS(WMM)
• MU-MIMO
• Seamless Roaming(802.11k/v/r)*
• Omada Mesh*
• Airtime Fairness
• Beamforming
• Band Steering
• Load Balance
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client
Wireless Security:
• Captive Portal Authentication*
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
Transmission Power:
• CE: <20 dBm (2.4 GHz, EIRP), <27 dBm(5 GHz, EIRP)
• FCC: <23 dBm (2.4 GHz), <22 dBm(5 GHz)
Management Features
Omada App: Yes
Centralized Management:
• Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller
Cloud Access: Yes. Require the use of an Omada controller.
Email Alerts: Yes
Management MAC Access Control: Yes
SNMP: v1, v2c, v3
System Logging Local/Remote Syslog: Yes
SSH: Yes
Web-based Management: Yes
L3 Management: Yes
Multi-site Management: Yes
Management VLAN: Yes
Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller.
OTHERS
Certification: CE, FCC, RoHS
Package Content: • Access Point EAP225-Outdoor
• Passive PoE Adapter
• Power Cord
• Mounting Kits
• Installation Guide
• Waterproof Ruber Insert
• Waterproof Antenna
System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Environment:
• Operating Temperature: -30–70 ℃ (-22–158 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
