• Up to 1.5 Gbps Dual Band Wi-Fi: Separates 5 GHz (1201 Mbps) and 2.4 GHz (300 Mbps) WiFi bands for faster speeds and greater capacity with the WiFi 6 technology.†
• Smart Roaming: Walk from room to room and stay connected with the fastest possible speeds.§
• EasyMesh-Compatible: Flexibly creates a Mesh network by connecting to an EasyMesh-compatible router for seamless whole-home coverage.◇
• Gigabit Ethernet Port: Provides faster wired connections to smart TVs, computers and gaming consoles.
• AP Mode: Create a new WiFi access point through the Gigabit Ethernet port to enhance your wired network with WiFi capability.
• Easy Setup: Plug in and then easily set up via a press of the WPS button or via the Tether App.
• Ultimate Compatibility: Extends the range of any Wi-Fi router or wireless access point.
Specifications
HARDWARE FEATURES
Interface: 1 Gigabit Ethernet Port
Button: WPS Button, Reset Button
Input Power: 100-240V~50/60Hz
Max. Power Consumption: 10W
Dimensions ( W x D x H ): 3.1×1.4×5.9 in. (78×36×149 mm)
Antenna: 2 Internal Antennas
WIRELESS FEATURES
Wireless Standards: IEEE 802.11a/n/ac/ax 5GHz, IEEE 802.11b/g/n 2.4GHz
Frequency: 2.4GHz and 5GHz
Signal Rate: 300 Mbps at 2.4GHz, 1200 Mbps at 5GHz
Working Modes: Range Extender/Access Point
Reception Sensitivity:
5GHz:
• 11a 6Mbps:-95dBm
• 11ax HE20 MCS11:-65dBm
• 11ax HE40 MCS11:-62dBm
• 11ax HE80 MCS11:-60dBm
• 11ax HE20 MCS0:-94dBm
• 11ax HE40 MCS0:-92dBm
• 11ax HE80 MCS0:-89dBm
2.4GHz:
• 11b 1Mbps:-99dBm
• 11n HT20 MCS0:-95dBm
• 11n HT20 MCS7:-77dBm
• 11n HT40 MCS0:-92dBm
• 11n HT40 MCS7:-73dBm
Wireless Functions:
• Enable/Disable Wireless Radio
• DFS (the latest firmware and hardware version is required)
• Access Control
• LED Control
• Power Schedule
• Wi-Fi Coverage
Wireless Security:
• 64/128-bit WEP
• WPA/WPA2-PSK encryptions
• WPA3 encryptions
Transmission Power: CE (EU): 2.4 GHz ≤15dBm, 5 GHz ≤23dBm
Mesh Technology: EasyMesh-Compatible
OTHER
Network Services Enabled by Default:
Web Server
Manage and configure device through web (HTTP/HTTPS)
• Port: 80/443 Protocol: TCP
DHCP Server
IP address assignment (DHCP)
• Port: 67 Protocol: UDP
App management
Manage and configure device through app
• Port: 20001 Protocol: TCP
• Port: 20002 Protocol: UDP
OTHERS
Certification: FCC, RoHS
Package Content:

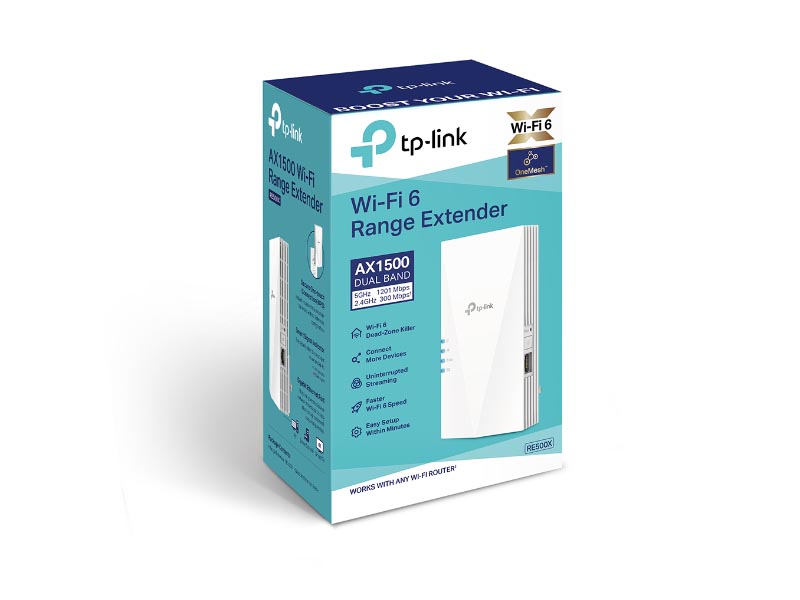

• Wi-Fi Range Extender RE500X
• Quick Installation Guide
System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
Environment:
• Operating Temperature: 0℃~40℃ (32℉ ~104℉)
• Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
