• Super-fast 1.8 Gbps Wi-Fi – Enjoy smooth 4K streaming and file downloads with super-fast Wi-Fi speeds of 1.8 Gbps.
• Connect more devices – Communicates with more devices using OFDMA while reducing latency.
• Wider Coverage – Improved algorithm, Beamforming and high-performance antennas improve Wi-Fi coverage performance.
• Next-generation platform – A high-performance next-generation chipset delivers fast and stable Wi-Fi while saving power.
• Parental Controls – Enjoy the most flexible yet free parental control features among all routers, including URL blocking, profile management, internet pausing, and more.
• Works with most ISPs – Compatible with most ISPs with additional L2TP/PPTP support. IPTV support works with your existing internet TV contract.
• OneMesh – Use with OneMesh range extenders to get whole-home coverage and enjoy seamless roaming between signals.
• Easy Setup – Set up your router in minutes with the powerful TP-Link Tether app.
• Backward Compatibility – Supports all previous 802.11 Wi-Fi devices.
Specifications
WIRELESS FEATURES
Standards and Protocols:
Wi-Fi 6:
• IEEE 802.11ax/ac/n/a 5 GHz
• IEEE 802.11ax/n/b/g 2.4 GHz
WiFi Speeds:
AX1800:
• 5 GHz: 1201 Mbps (802.11ax)
• 2.4 GHz: 574 Mbps (802.11ax)
WiFi Range:
2-3 bedroom houses:
• 4× fixed high-performance antennas
• Multiple antennas form a signal-boosting array to cover more directions and larger areas
Beamforming: Concentrates wireless signal strength to client devices to extend Wi-Fi range
WiFi Capacity:
High:
• Dual-band performance
• Allocate devices to different bands for optimal performance
Airtime Fairness: Improves network efficiency by limiting over-consumption
4 streams: Connect your devices to greater bandwidth
Working Modes: Router Mode; Access Point Mode
HARDWARE
Processor: Dual-core CPU

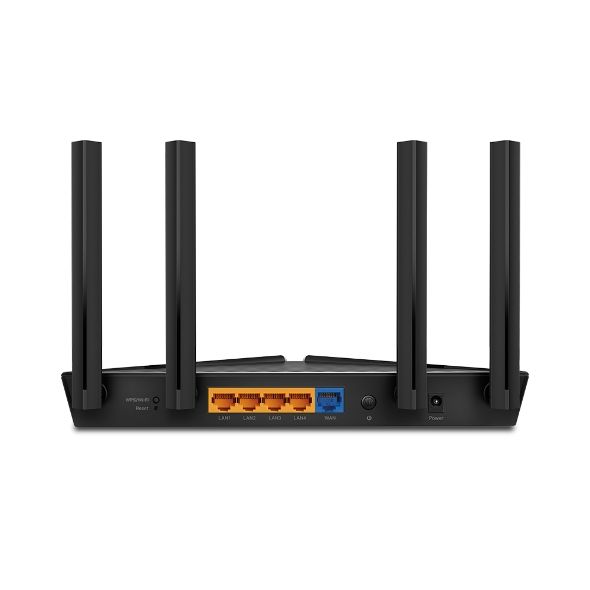

Ethernet Ports:
• 1× Gigabit WAN port
• 4× Gigabit LAN port
Buttons:
• WPS/Wi-Fi Button
• Power On/Off Button
• Reset Button
Power: 12V ⎓ 1A
SOFTWARE
Protocols: IPv4; IPv6
OneMesh™: OneMesh™ Support
EasyMesh: Mesh networking creates smooth, fast, stable roaming. ArcherAX1800 can build an EasyMesh network with devices that use EasyMesh technology. It also works with other TP-Link products to create a OneMesh network. Eliminate Wi-Fi dead zones, expand your network, and fill your entire home with high-speed Wi-Fi.
Parental Controls: URL filtering; Time controls
WAN Types: Dynamic IP; Static IP; PPPoE; PPTP; L2TP
Quality of Service: QoS by device
Cloud Service: Automatic firmware update; Wireless firmware update; TP-Link ID; DDNS
NAT Forwarding: Port Forwarding; Port Triggering; DMZ; UPnP
IPTV: IGMP Proxy; IGMP Snooping; Bridge; Tagged VLAN
DHCP: Address Reservation; DHCP Client List; Server
DDNS: TP-Link; NO-IP; DynDNS
Management Features: Tether App; Web Page
OTHER
Network Services Enabled by Default:
Web Server:
Manage and configure device through web (HTTP/HTTPS)
• Port: 80/443 Protocol: TCP
DNS
DNS
• Port: 53 Protocol: TCP & UDP
DHCP Server
IP address assignment (DHCP)
• Port: 67 Protocol: UDP
App management
Manage and configure device through app
• Port: 20001 Protocol: TCP
• Port: 30001 Protocol: TCP
• Port: 20002 Protocol: UDP
System Requirements: Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or another browser with JavaScript support
Cable or DSL modem (if required)
Internet service provider subscription (for internet access)
Certifications: FCC, CE, RoHS
