• Share with friends internet access for up to 10 devices simultaneously
• 2100 mAh battery for 8 hours of usage
• Supports 4G FDD/TDD-LTE, compatible with the network of most countries and regions
• Easy management with the tpMiFi App
Specifications
Network Type:
4G:
• FDD-LTE B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/750 MHz)
• TDD-LTE B38/B40/B41 (2600/2300/2500 MHz)
3G:
• DC-HSPA+/HSPA+/HSPA/UMTS B1/B5/B8 (2100/850/900 MHz)
Speed: Download Speed:150 Mbps
Upload Speed: 50 Mbps
HARDWARE FEATURES
Interface:
• 1 USB-C port for power supply

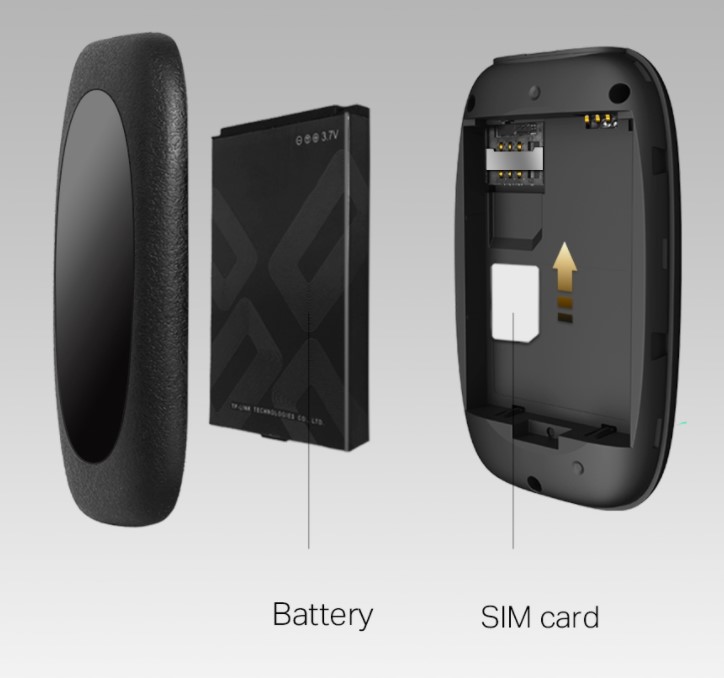

• 1 Nano SIM card slot
Button: Power Button, Reset Button
Power Supply: Internal 2100 mAh Rechargeable Battery (TBL-65A2150)
External 5V/1A
Dimensions ( W x D x H ): 3.7×2.2×0.8 in. (94×56.7×19.8 mm)
Antenna: Internal Antennas
LED Display: Wi-Fi status, Internet connection status, Battery status
WIRELESS FEATURES
Wireless Standards: IEEE 802.11b/g/n
Wireless Speeds: Up to 300 Mbps
Frequency: 2.4 GHz
Reception Sensitivity:
• 11b 11Mbps: -87.5dBm;
• 11g 54Mbps: -74dBm;
• 11n HT20 MCS7: -70dBm;
• 11n HT40 MCS7: -68dBm;
Wireless Security: Support WPA-PSK/WPA2-PSK,Wireless MAC Filtering, Enable/Disable SSID Broadcast
DHCP: Server, Client, DHCP Client List
Transmission Power: <20dBm
OTHERS
Network Services Enabled by Default:
Web Server
Manage and configure device through web or app
• Port: 80/443 Protocol: HTTP/HTTPS
DNS
DNS
• Port: 53; Protocol: UDP
DHCP/DHCPv6
IP address assignment
• Port: 67/547; Protocol: UDP
RNDIS Support: Yes
System Requirement: Windows XP/7/8/10/11
Package Content: Mobile Wi-Fi M7000
0.4m USB-C Cable
2100 mAh Battery
Quick Installation Guide
System Requirements: Windows 11/10/8/7/vista/XP, Mac OS, Android, iOS, Windows Phone
Certifications: CE, RoHS
Environment:
• Operating Temperature: 0℃~35℃ (32℉ ~95℉)
• Storage Temperature: -20℃~60℃ (-4℉ ~140℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
