• 300 Mbps Wi-Fi speed is ideal for daily tasks including browsing, emailing, and video streaming
• IPTV supports IGMP Proxy/Snooping, Bridge and Tag VLAN to optimize IPTV streaming
• Guest Network provides separate access for guests while securing the host network
• Parental Controls manage when and how connected devices can access the internet
• SPI firewall and wireless encryption protect your home network
• Compatible with IPv6 (Internet Protocol version 6)
Specifications
WIRELESS
Standards and Protocols: Wi-Fi 4
IEEE 802.11n/b/g 2.4 GHz
WiFi Speeds: N300
2.4 GHz: 300 Mbps (802.11n)
WiFi Range:
• 2 Bedroom Houses
• 2× Fixed Antennas
WiFi Capacity: Legacy
Working Modes: Router Mode; Access Point Mode; Range Extender Mode; WISP Mode
SECURITY
Network Security: SPI Firewall; Access Control; IP & MAC Binding; Application Layer Gateway
Guest Network: 1× 2.4 GHz Guest Network
WiFi Encryption: WPA; WPA2; WPA3; WPA/WPA2-Enterprise (802.1x)
HARDWARE
Processor: Single-Core CPU

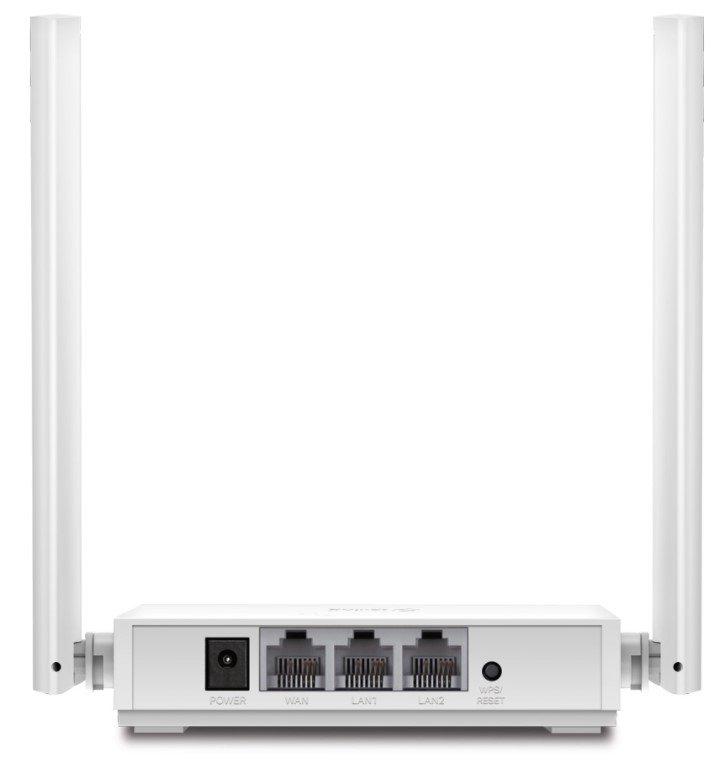

Ethernet Ports:
• 1× 10/100 Mbps WAN Port
• 2× 10/100 Mbps LAN Ports
Buttons: Reset Button
Power: 5 V ⎓ 0.6 A
SOFTWARE
Protocols: IPv4; IPv6
Parental Controls: URL Filtering; Time Controls
WAN Types: Dynamic IP; Static IP; PPPoE; PPTP; L2TP
Quality of Service: QoS by Device
NAT Forwarding: Port Forwarding; Port Triggering; DMZ; UPnP
IPTV: IGMP Proxy; IGMP Snooping; Bridge; Tag VLAN
DHCP: Address Reservation; DHCP Client List; Server
DDNS: NO-IP; DynDNS
Management Features: Tether App; Webpage
OTHER
Network Services Enabled by Default:
Web Server
Manage and configure device through web (HTTP/HTTPS)
• Port: 80/443 Protocol: TCP
DHCP Server
IP address assignment (DHCP)
• Port: 67 Protocol: UDP
App management
Manage and configure device through app
• Port: 20002 Protocol: UDP
System Requirements: Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Cable or DSL Modem (if needed)
Subscription with an internet service provider (for internet access)
Certifications: FCC, CE, RoHS
Environment:
• Operating Temperature: 0℃~40℃ (32℉ ~104℉)
• Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
PHYSICAL
Dimensions (W×D×H): 4.5 × 4.2 × 1.0 in (115 × 106.7 × 24.3 mm)
Package Content:

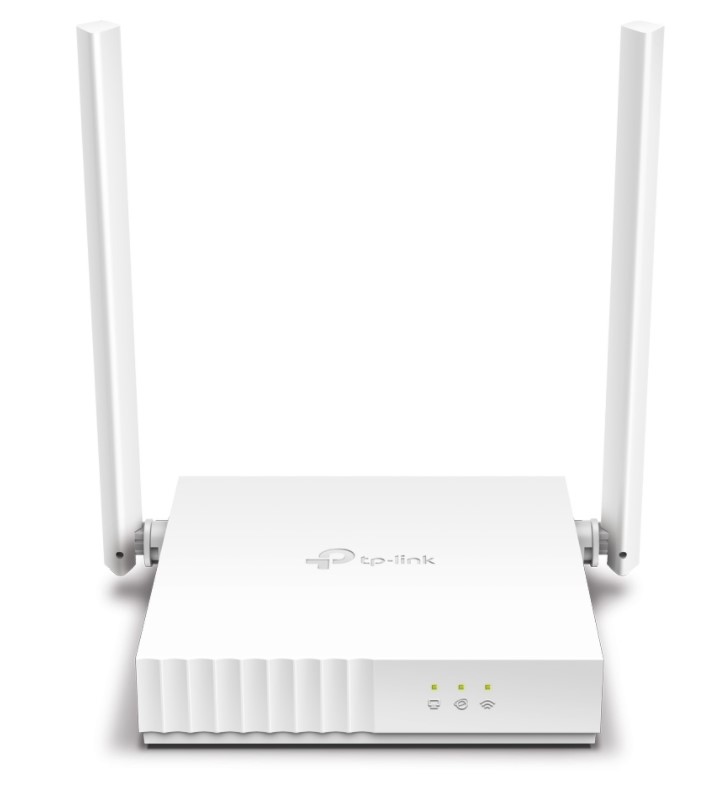

• Wi-Fi Router TL-WR820N
• Power Adapter
• RJ45 Ethernet Cable
• Quick Installation Guide
