• High-Speed Wi-Fi - 300 Mbps wireless transmission rate is ideal for both bandwidth sensitive tasks and basic work.
• Boosted Coverage - Two omnidirectional antennas and 2×2 MIMO deliver strong Wi-Fi signal and reliable connections.
• Multi-Mode 4 in 1 - Supports Router, Access Point, Range Extender, and WISP modes to meet any network need.
• Parental Controls - Manages when and how connected devices can access the internet.
• Guest Network - Provides separate access for guests while securing the host network.
• Smooth HD Streaming - Supports IGMP Proxy/Snooping, Bridge and Tag VLAN to optimize IPTV streaming.
• IPv6 Supported - Compatible with the IPv6 (the latest Internet Protocol version 6).
Specifications
WIRELESS
Standards and Protocols:
Wi-Fi 4: IEEE 802.11n/b/g 2.4 GHz
WiFi Speeds: N300
• 2.4 GHz: 300 Mbps (802.11n)
WiFi Range:
• 2 Bedroom Houses
• 2× Fixed Antennas
WiFi Capacity: Legacy
Working Modes: Router Mode; Access Point Mode; Range Extender Mode; WISP Mode
SECURITY
Network Security: SPI Firewall; Access Control; IP & MAC Binding; Application Layer Gateway
Guest Network: 1× 2.4 GHz Guest Network
WiFi Encryption: WPA; WPA2; WPA3; WPA/WPA2-Enterprise (802.1x)
HARDWARE
Processor: Single-Core CPU

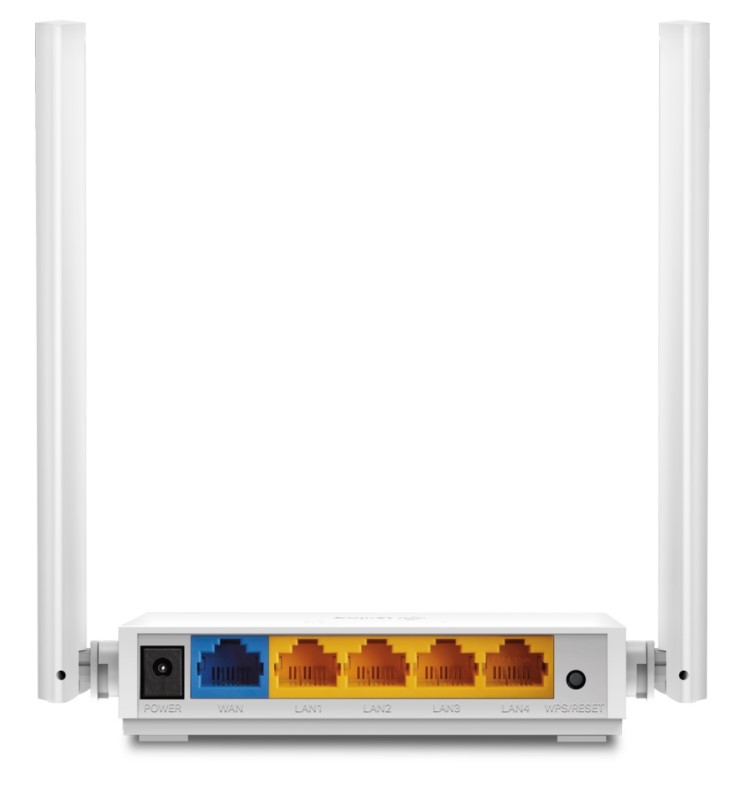

Ethernet Ports:
• 1× 10/100 Mbps WAN Port
• 4× 10/100 Mbps LAN Ports
Buttons: Reset Button
Power: 5 V ⎓ 0.6 A
SOFTWARE
Protocols: IPv4; IPv6
Parental Controls: URL Filtering; Time Controls
WAN Types: Dynamic IP; Static IP; PPPoE; PPTP; L2TP
Quality of Service: QoS by Device
NAT Forwarding: Port Forwarding; Port Triggering; DMZ; UPnP
IPTV: IGMP Proxy; IGMP Snooping; Bridge; Tag VLAN
DHCP: Address Reservation; DHCP Client List; Server
DDNS: NO-IP; DynDNS
Management Features: Tether App; Webpage
OTHER
Network Services Enabled by Default:
Web Server
Manage and configure device through web (HTTP/HTTPS)
• Port: 80/443 Protocol: TCP
DHCP Server
IP address assignment (DHCP)
• Port: 67 Protocol: UDP
App management
Manage and configure device through app
• Port: 20002 Protocol: UDP
System Requirements: Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Cable or DSL Modem (if needed)
Subscription with an internet service provider (for internet access)
Certifications: FCC, CE, RoHS
Environment:
• Operating Temperature: 0℃~40℃ (32℉ ~104℉)
• Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
PHYSICAL
Dimensions (W×D×H): 4.5 × 4.2 × 1.0 in (115 × 106.7 × 24.3 mm)
Package Content:

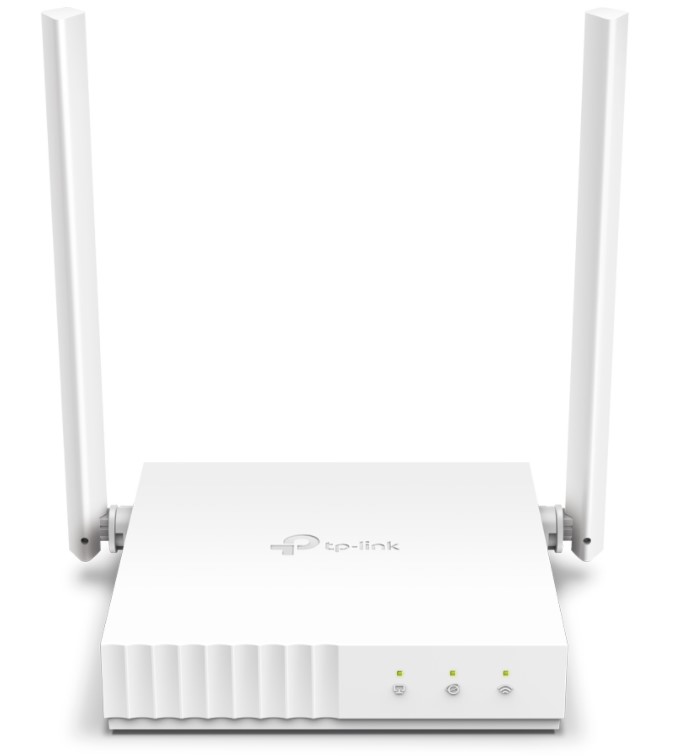

• Wi-Fi Router TL-WR844N
• Power Adapter
• RJ45 Ethernet Cable
• Quick Installation Guide
