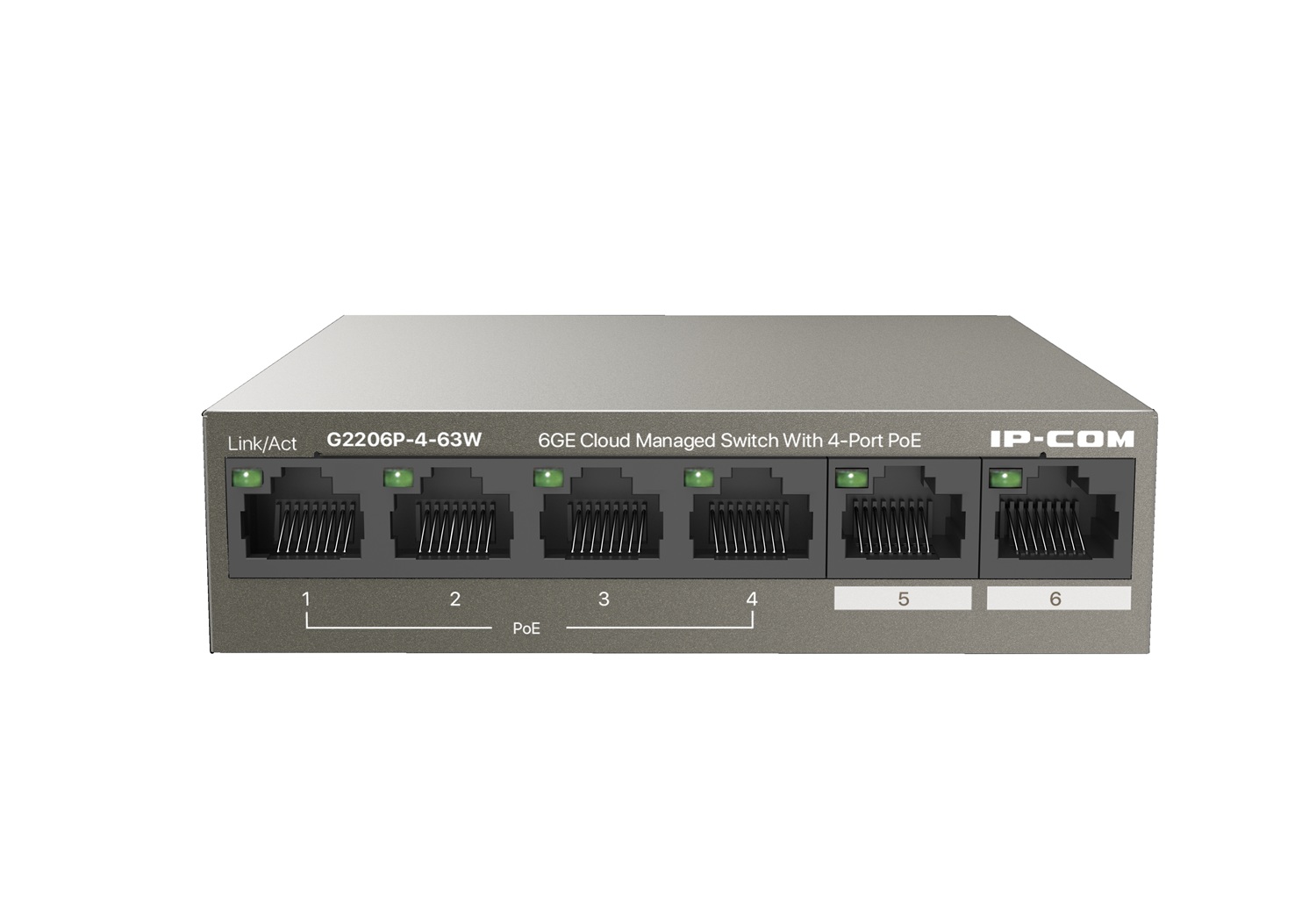

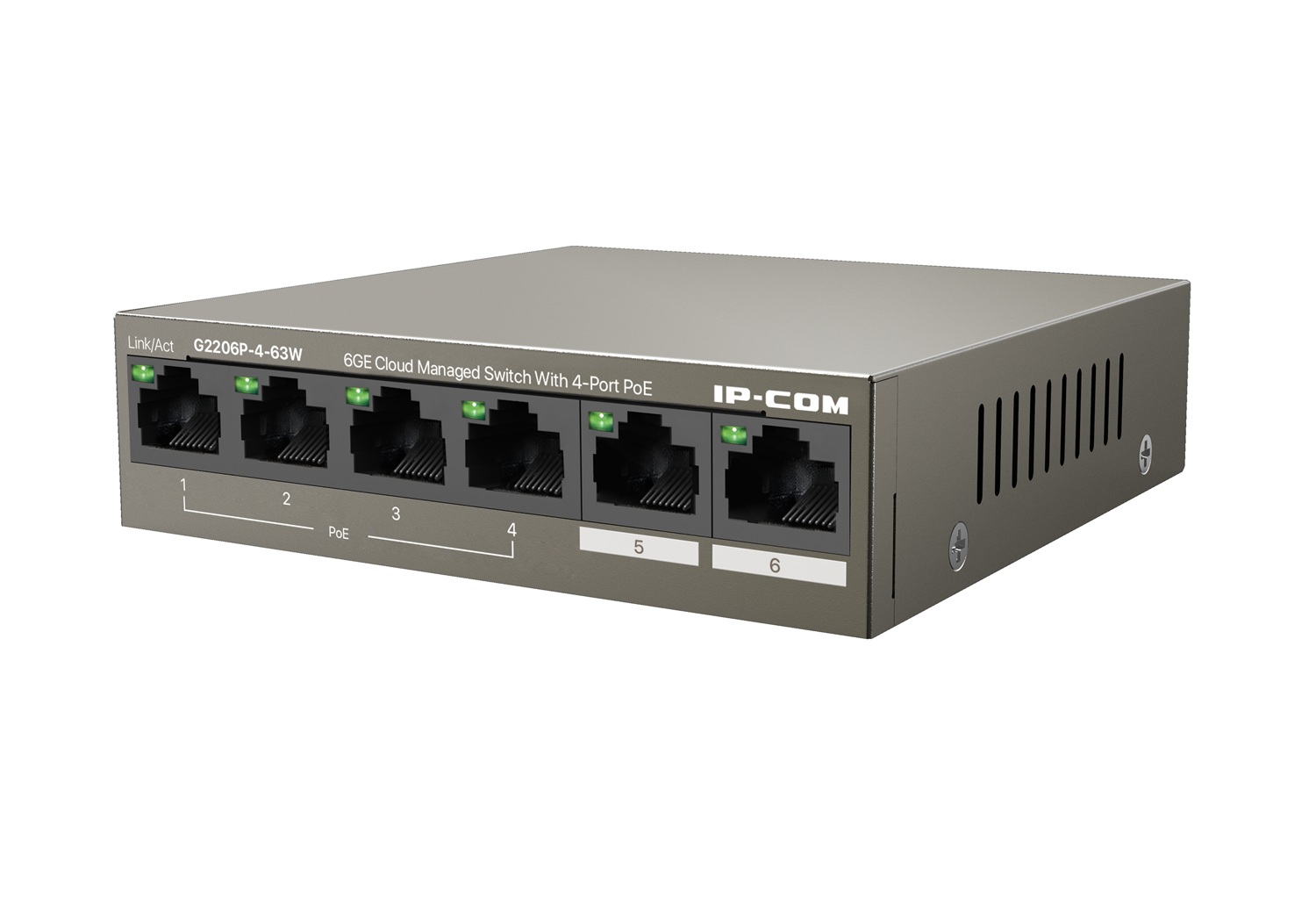

G2206P-4-63W v2.0
6GE Cloud Managed Switch With 4-Port PoE
G2206P-4-63W is a smart cloud-managed PoE switch independently designed by IP-COM. The switch provides 4 gigabit standard PoE ports with a maximum PoE power output of 58 W. Besides, the switch can be managed through both the IP-COM ProFi Cloud web UI and ProFi App, realizing easy and efficient network maintenance at a lower cost.
• Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z, IEEE 802.3af/at, IEEE 802.1q standards
• 4 × 10/100/1000 Base-T Ethernet ports (PoE & Data), 2 × 10/100/1000 Base-T uplink ports (Data)
• 2 K MAC address table and MAC address auto learning
• IEEE 802.3x full-duplex flow control and half-duplex backpressure flow control
• 12 Gbps switching fabric for non-blocking line-speed forwarding
• Maximum PoE output of a single port: 30 W, Total PoE output of the switch: 58 W
• ProFi Cloud web UI and App management
• 250 m network extension, PoE management, QVLAN, VLAN transparent transmission, traffic statistics, loop guard, DHCP Snooping and MAC address binding
Specification
Hardware specifications
Network standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z, IEEE 802.1q, IEEE802.3af, IEEE802.3at
LED indicators: One Link/Act LED indicator for each port; One PWR LED indicator for each device; One SYS LED indicator for each device
Fixed ports: 4 × 10/100/1000 Base-T Ethernet ports (PoE & Data); 2 × 100/1000 Base-T Ethernet port (Data)
Lightning protection: Port: 6 kV; Power supply: 6 kV
Forwarding mode: Store-and-forward
Switching capacity: 12 Gbps
Packet forwarding rate: 8.9 Mpps
Switching buffer: NA
MAC address table: 2 K
PoE Power Supply: IEEE 802.3af/at standards PoE power supply on ports 1-4; Voltage of cores 1, 2, 4, 5 is +, and cores 3, 6, 7, 8 is -
Input voltage: 100 - 240V AC 50/60Hz
Dimensions (L x W x H): 100 mm × 100 mm × 26 mm
Total Power Consumption: Total power consumption: <63 W; Maximum PoE output: 58 W
Environment: Operating temperature: 0°C - 45°C; Storage temperature: -40°C - 70°C; Operating humidity: (10% - 90%) RH, non-condensing; Storage humidity: (5% - 90%) RH, non-condensing
Certificates: FCC, CE, RoHS
Software features
PoE Management: Support dynamic display of PoE consumption power and PoE remaining power; Support PoE ports on and off
Security Features: Support whitelist binding of MAC addresses, ports and VLAN; Support port isolation
VLAN: Support VLAN transparent transmission; Support IEEE 802.1q VLAN
DHCP: Support DHCP Client; Support DHCP Snooping
Port Properties: Support port flow control; Support port isolation; Support N:1 port mirroring; Support port statistics of received and transmitted packets, conflict packets and CRC error packets
Rate Limit: Support ingress and egress rate limits on ports
Loop Guard: Support loop detection and guard on each port
Storm Control: Support storm control on ports
Upgrade, Import and Export: Support HTTP upgrade; Support configuration import and export
Management and Maintenance: Support ProFi App management; Support ProFi Cloud web UI management; Support local web UI management; Support ping test
