• Blazing-Fast 3.6 Gbps Dual-Band Speeds: Enables your devices to run at full speed. Enjoy fluent 4K/8K streaming, immersive AR/VR gaming, and blazing-fast downloads.
• ewest WiFi 7: Armed with the 4K-QAM, MLO, Multi-RUs, and other features that WiFi 7 offers, your network will arrive with a jaw-dropping performance.
• Seamless Roaming for a Smooth Network Experience: No more sudden signal drops or lagging WiFi when you're walking around the house.
• Multi-Link Operation (MLO): Increases throughput, reduces latency, and improves reliability for emerging applications.
• Multi-Gigabit Port: 1× 2.5 Gbps WAN/LAN and 2× 1 Gbps auto-sensing ports break through the 1G bottleneck, driving your devices to peak performance.
• Whole Home Multi-Gigabit Coverage: Halo mesh units work as a unified network to fill your home up to 7,000 ft2/650 m2 (ideal for 4-7 bedroom houses).
• Easy Setup and Use: Network management has never been easier with the MERCUSYS app.
Wireless
Wireless Standards:
• 5 GHz: IEEE 802.11a/n/ac/ax/be mixed
• 2.4 GHz: IEEE 802.11b/g/n/ax/be mixed
WiFi Speeds:
• 2880 Mbps at 5 GHz
• 688 Mbps at 2.4 GHz
Reception Sensitivity:
• 2.4G: -97dBm
• 5G: -98.5dBm
Transmission Power:
• 5G band1 band2 < 23dBm
• 5G band3 < 30dBm
• 2.4G band < 20dBm
Wireless Security: WPA-PSK/WPA2-PSK/WPA3-SAE
Mesh protocol: 802.11k/v/r
Hardware
Dimensions: 5 × 3.2 × 3.3 in (128 × 81.3 × 83.7 mm))

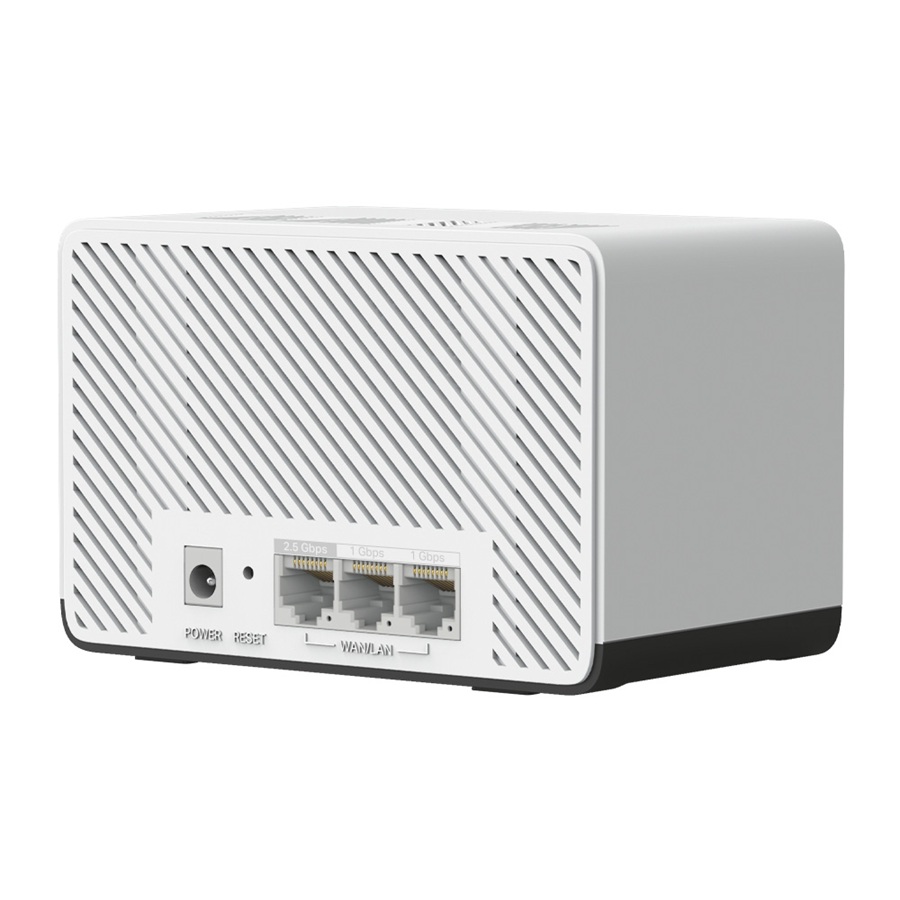

Interfaces: 1× 2.5 Gbps Port + 2× 1 Gbps Ports (WAN/LAN auto-sensing)
Button: Reset button
Software
Operation Mode: Router, Access Point
Quality of Service: WMM
WAN Type: Dynamic IP/Static IP/PPPoE/L2TP/PPTP
Management: Local Management, Remote Management, Multi-Managers
Firewall Security: SPI Firewall
Protocols: Supports IPv4 and IPv6
Guest Network: 2.4 GHz Guest Network, 5 GHz Guest Network
DHCP: Server, Client
Others
Network Services Enabled by Default:
Web Server
Manage and configure device through web (HTTP/HTTPS)
• Port: 80/443; Protocol: TCP
DHCP Server
IP address assignment (DHCP)
• Port: 67; Protocol: UD
DNS
• Port: 53; Protocol: TCP & UDP
App management
Manage and configure device through app
• Port: 20001; Protocol: TCP
• Port: 20002; Protocol: UDP
Package Contents:

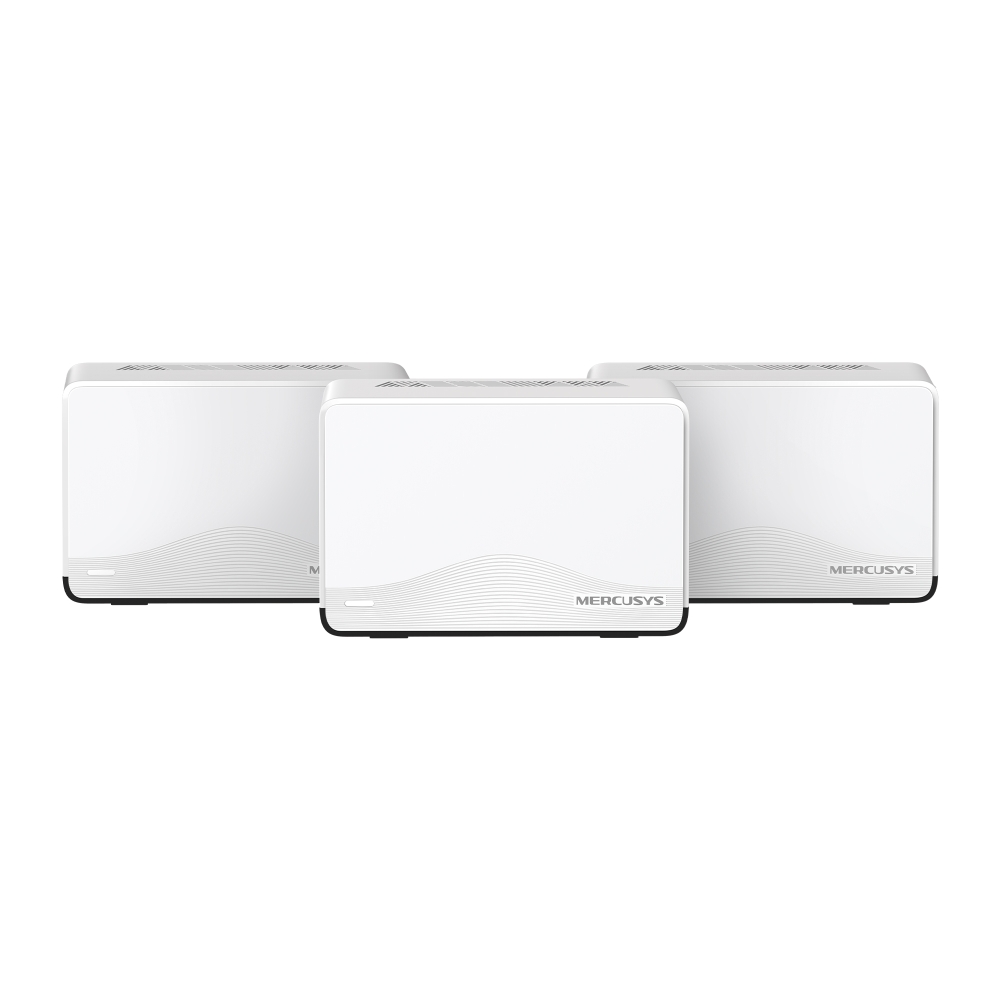

• 3× Halo H27BE Units
• 1× RJ45 Ethernet Cable
• 3× Power Adapters
• Quick Installation Guide
Environment:
• Operating Temperature: 0°C~40°C (32°F~104°F)
• Operating Humidity: 10%~90% Non-Condensing
• Storage Humidity: 5%~90% Non-Condensing
