PSU 750W Genesis Nihon 750NM 80 Plus Bronze, Cybenetics Silver, PCIe Gen 5.1, ATX 3.1, White
На залиха
5.380,00 ден.
24 рати x 237,00 ден.
- 747069816
- 12 месеци
- Компјутерски компоненти
Cybenetics Silver and 80 PLUS Bronze certifications - high efficiency and culture of operation

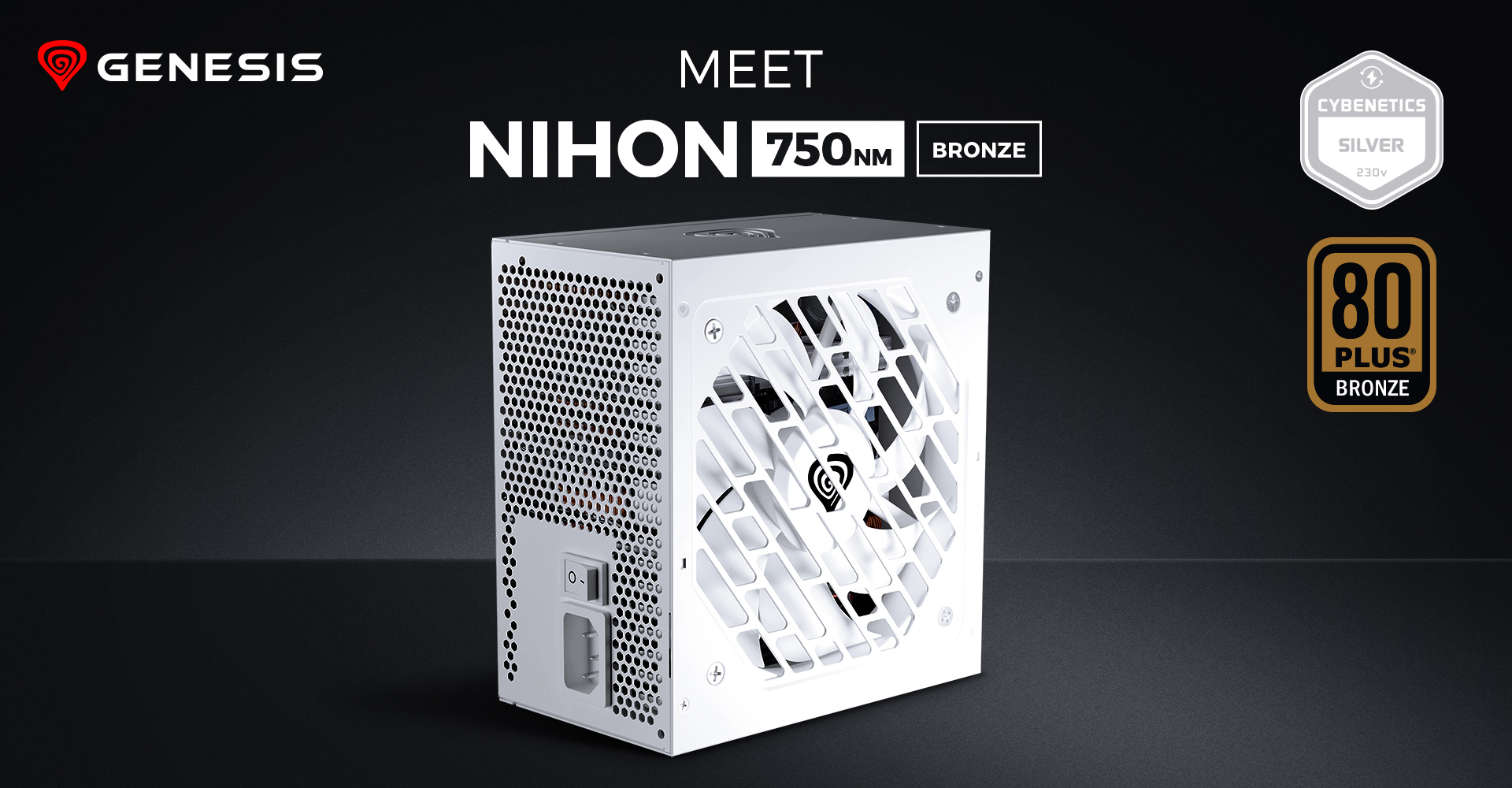

Nihon 750 W is a power supply that combines high energy efficiency with quiet and stable operation. This is confirmed by the 80 PLUS Bronze and Cybenetics Silver certifications. That means an average efficiency of more than 88% at 230V translates into lower energy losses and less heating of components even under heavy load, keeping your computer safe. In addition, the Cybenetics LAMBDA Standard++ rating indicates good operating culture and low noise levels.
Stable and future-ready with ATX 3.1 standard and powerful 12-volt line
The Nihon 750 is designed in accordance with the ATX 3.1 standard, so it can easily cope with the demands of modern components, including high-performance graphics cards. Support for momentarypower excursions, reaching up to 200% of the GPU's nominal demand, allows the computer to maintain stable operation even during dynamic load changes. A powerful 12-volt line, the quality of which was confirmed in the aforementioned Cybenetics tests, is responsible for stable power supply of key components - the power supply showed very good voltage regulation and low ripple levels.
12V-2x6 connector compliant with PCIe 5.1 standard
Nihon 750 is equipped with a state-of-the-art 12V-2x6 connector, which is the successor to the earlier 12VHPWR standard and complies with the PCIe 5.1 specification. Its improved design improves connection security and reduces the risk of incomplete cable plugging problems. In turn, the included 12+4 pin PCIe 12V-2x6 cable is made of Tinned Copper, which allows it to handle up to 600 watts of power, making the unit ready to power the most efficient compatible graphics cards using a single connector.
Premium cooling thanks to FDB fan
A Fluid Dynamic Bearing(FDB) fan is being used in the Nihon 750, designed for quiet and long-lasting operation.
Maximum security
Nihon 750 offers an extensive set of protections: OCP, OPP, OTP, OVP, SCP, SIP, UVP and NLO, which support the protection of the unit and other computer components in typical emergency situations.

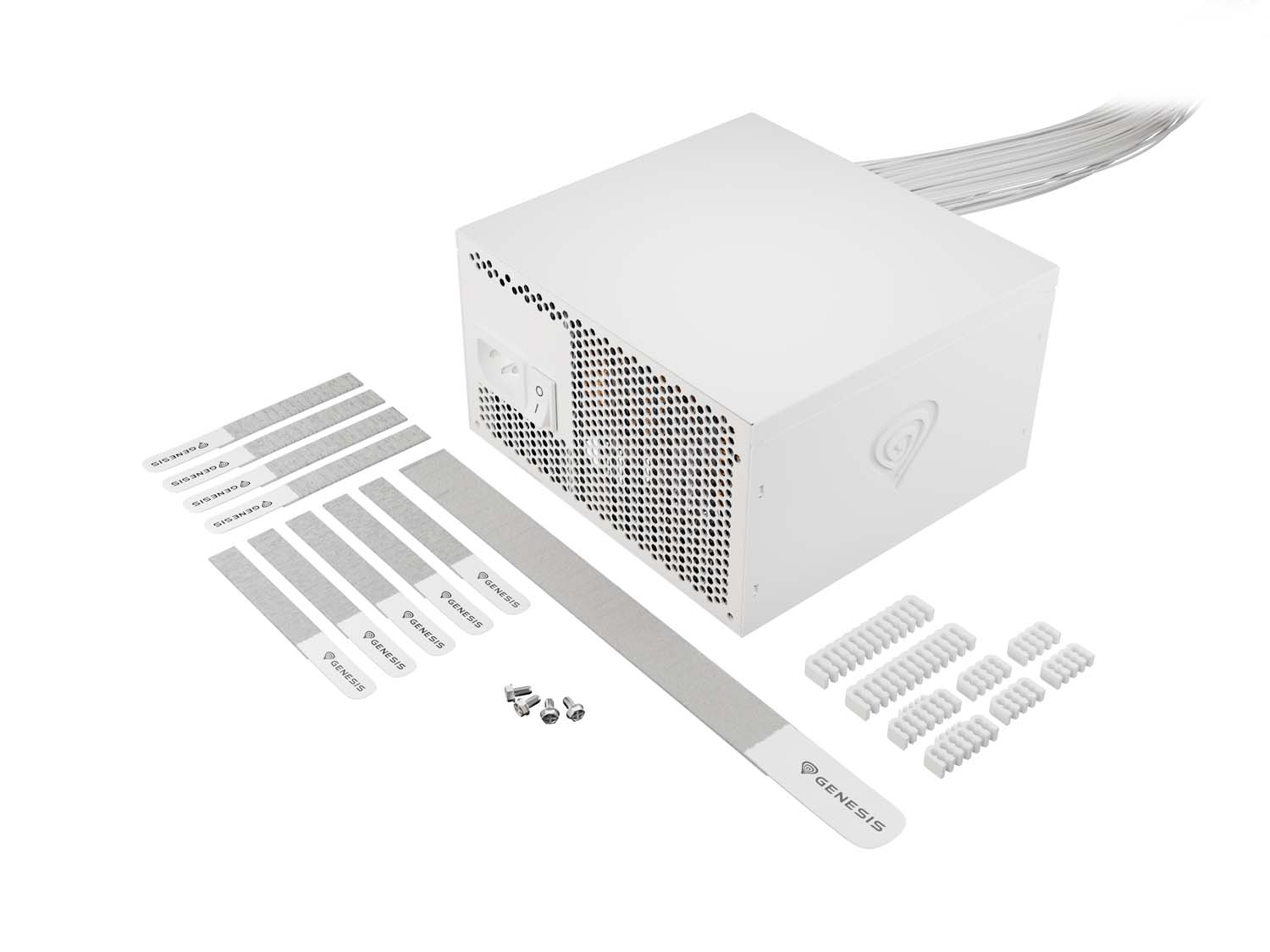

Aesthetic wiring and accessories for arrangement
We've used knurled, round braid-like cables in Nihon power supplies that combine flexibility, durability and easy routing inside the case. The included cable combs and Velcro make it easy for you to arrange your cabling aesthetically and help keep your finished setup neat and tidy.
Specification:
Standard: ATX 12V v3.1
Power: 750 W
Efficiency certificate: 80 Plus Bronze, Cybenetics Silver
Efficiency: 88 %
Cabling type: Non-modular
Protections: NLO, OCP, OPP, OTP, OVP, SCP, SIP, UVP
Fan diameter: 120 mm
Maximum fan speed +/- 10%: 2000 RPM
Fan noise level: 24.7 dB
Bearing type: FDB (Fluid Dynamic Bearing)
Fan lifetime: 80000 h
Input voltage range: 100 - 240 V
Input current range: 9-4.5 A
Current at +12V: 62.5 A
Current at +5V: 20 A
Current at +3.3V: 20 A
Current at +5Vsb: 3 A
Current at -12V: 0.3 A
Max +12V line load: 750 W
Max +3.3V and +5V line load: 100 W
Main power connector: ATX 24-pin
Number of EPS (CPU): 2
Number of PCI-E connectors: 3
Number of SATA connectors: 8
Number of Molex connectors: 2
Other connectors: 12V-2x6
Illumination: No
PFC type: Active
Environment temperature: 0 - 40 °C
Colour: White
Length: 140 mm
Width: 150 mm
Height: 86 mm
Weight: 2.13 kg
Included Accessories: User guide, Power cord, Set of assembly elements, Velcro bands, Cable combs
Maximum fan airflow: 63 CFM
Maximum static pressure of the fan: 3 mmH2O
