5.280,00 ден.
24 рати x 233,00 ден.
- 747068035
- 12 месеци
- Компјутерски компоненти

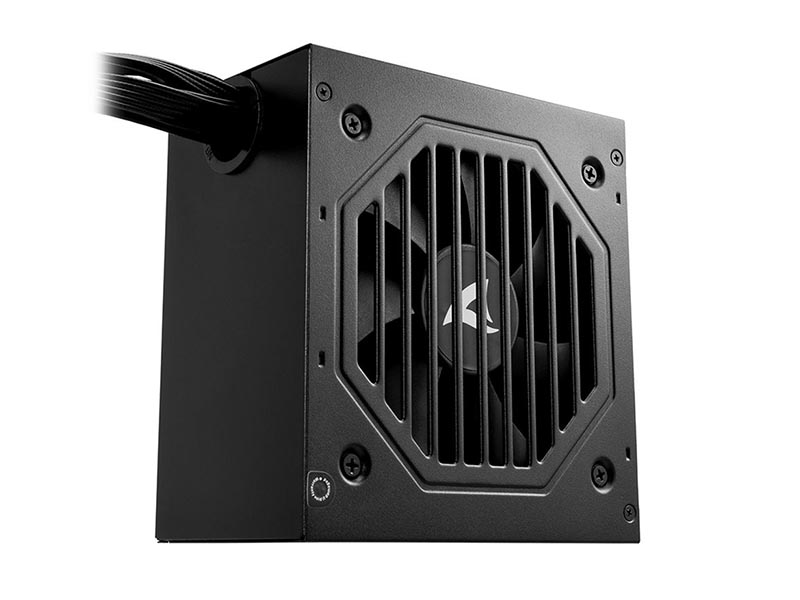

The Sharkoon Rebel P15 is a modern ATX 3.1 power supply unit that boasts the Gold efficiency rating from Cybenetics and is equipped with a 12V 2×6 connector for the latest gaming graphics cards. It also offers reliable cooling for demanding systems thanks to its quiet and durable 120 mm fan with a hybrid magnetic bearing. And, of course, the PSU comes with a full range of electrical protections.
General
Certification: Cybenetics Gold
Form Factor: ATX 3.1
Continuous Power: 750 W
ErP Compliant: Yes
Technology: DC/DC
Japanese Primary Capacitors: Yes
MTBF: Min. 100,000 Hours
Operating Temperature: 0 to +40 °C
Standby Power Consumption: Max. 0.25 W
Weight incl. Fixed Cables: 1.887 kg
Dimensions (L x W x H): 140 x 150 x 86 mm
Housing Color: Black
Input
Voltage: 100 - 240 VAC
Frequency: 50 - 60 Hz
Input Current (110/230 V): 9 A / 4.5 A
Output
12 V Rail(s): 1
Load 3.3 V: 18 A
Load 5 V: 18 A
Max. Combined Power 3.3 V + 5 V: 100 W
Load 12 V1: 62.5 A
Max. Combined Power 12 V: 750 W
Load 5 VSB: 3 A
Load −12 V: 0.3 A
Load 12V-2x6: 600 W

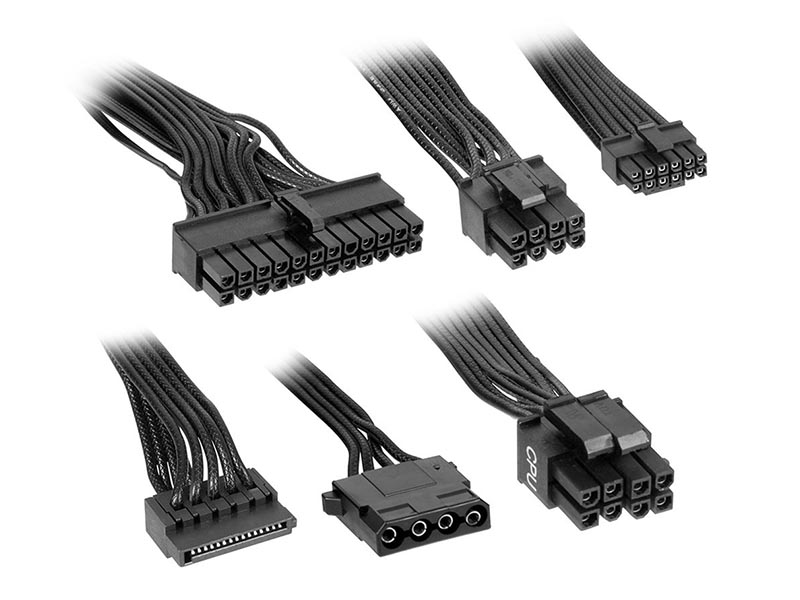

Cable and Connectors
Cable Configuration: Fixed
Flat Cables: Yes
Maximum Cable Length: 100 cm
Length of Motherboard Cable: 55 cm
Length of CPU Cable: 65 + 15 cm
Length of 12VHPWR Cable: 60 cm
Length of PCIe Cable: 50 cm + 15 cm
Cable Length to First Peripheral: 50 cm
24-Pin Motherboard Connector: 1
4+4-Pin CPU Connector: 1
8-Pin CPU Connector: 1
6+2-Pin PCIe Connector: 4
12V-2x6 Connector: 1
SATA Connector: 6
IDE Connector: 2
Fan
Fan Size: 120 mm
Bearing Type: Hybrid Magnetic Bearing
Protections
OCP (Over-Current Protection)
OVP (Over-Voltage Protection)
UVP (Under-Voltage Protection)
SCP (Short-Circuit Protection)
OTP (Over-Temperature Protection)
OPP (Over-Power Protection)
Safety Certifications
CE, FCC, CB
Package Contents:
Rebel P15 750
Power Cord
Mounting Screws
Повеќе информации
General
Certification: Cybenetics Gold
Form Factor: ATX 3.1
Continuous Power: 750 W
ErP Compliant: Yes
Technology: DC/DC
Japanese Primary Capacitors: Yes
MTBF: Min. 100,000 Hours
Operating Temperature: 0 to +40 °C
Standby Power Consumption: Max. 0.25 W
Weight incl. Fixed Cables: 1.887 kg
Dimensions (L x W x H): 140 x 150 x 86 mm
Housing Color: Black
Input
Voltage: 100 - 240 VAC
Frequency: 50 - 60 Hz
Input Current (110/230 V): 9 A / 4.5 A
Output
12 V Rail(s): 1
Load 3.3 V: 18 A
Load 5 V: 18 A
Max. Combined Power 3.3 V + 5 V: 100 W
Load 12 V1: 62.5 A
Max. Combined Power 12 V: 750 W
Load 5 VSB: 3 A
Load −12 V: 0.3 A
Load 12V-2x6: 600 W
Cable and Connectors
Cable Configuration: Fixed
Flat Cables: Yes
Maximum Cable Length: 100 cm
Length of Motherboard Cable: 55 cm
Length of CPU Cable: 65 + 15 cm
Length of 12VHPWR Cable: 60 cm
Length of PCIe Cable: 50 cm + 15 cm
Cable Length to First Peripheral: 50 cm
24-Pin Motherboard Connector: 1
4+4-Pin CPU Connector: 1
8-Pin CPU Connector: 1
6+2-Pin PCIe Connector: 4
12V-2x6 Connector: 1
SATA Connector: 6
IDE Connector: 2
Fan
Fan Size: 120 mm
Bearing Type: Hybrid Magnetic Bearing
Protections
OCP (Over-Current Protection)
OVP (Over-Voltage Protection)
UVP (Under-Voltage Protection)
SCP (Short-Circuit Protection)
OTP (Over-Temperature Protection)
OPP (Over-Power Protection)
Safety Certifications
CE, FCC, CB
Package Contents:
Rebel P15 750
Power Cord
Mounting Screws
Повеќе информации
