9.980,00 ден.
24 рати x 440,00 ден.
- 747067845
- 24 месеци
- Мрежа, алати, кабли и адаптери

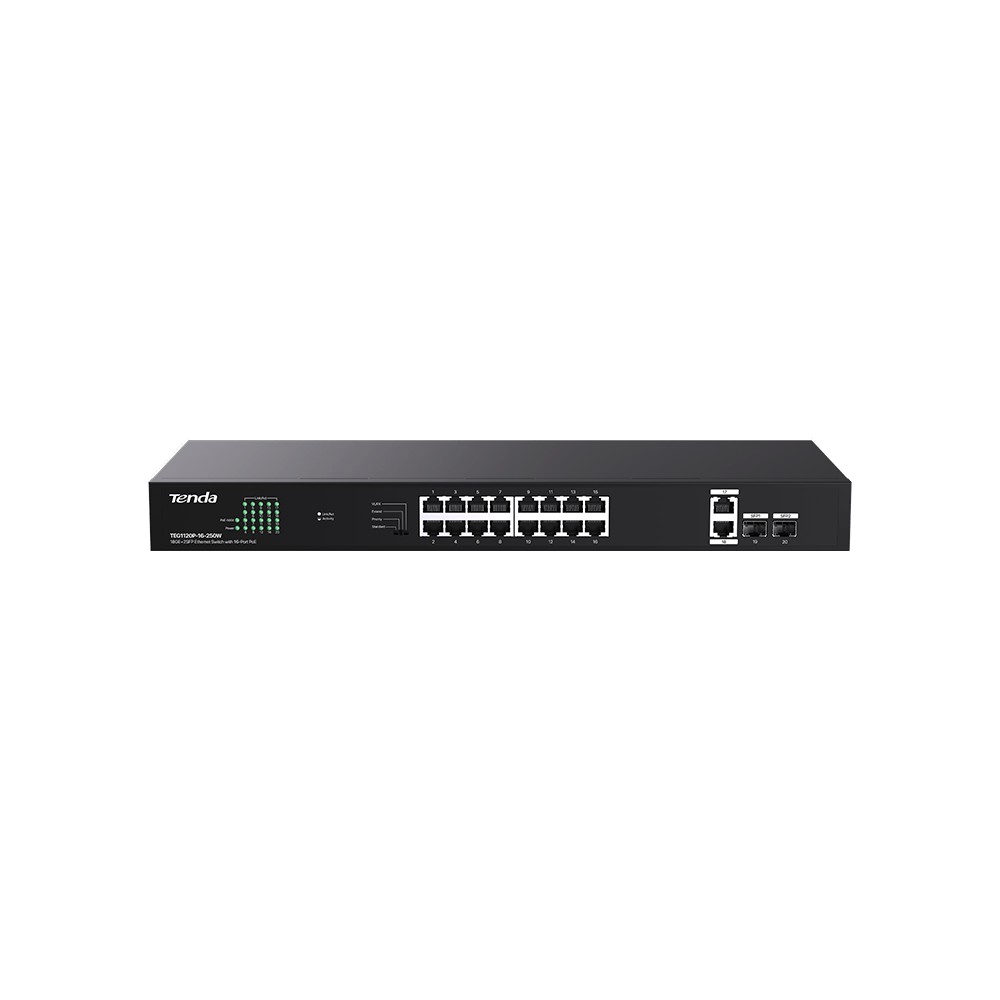

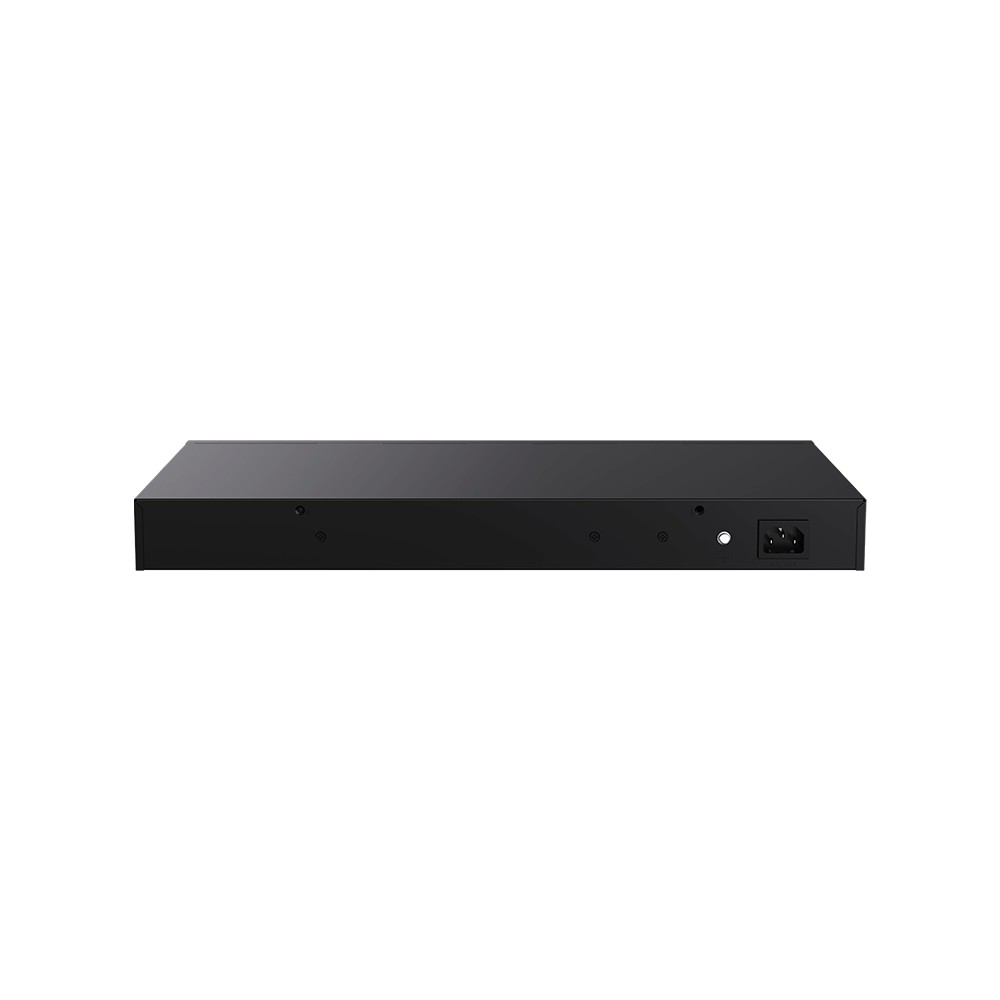

TEG1120P-16-250W
18GE+2SFP Ethernet Switch With 16-Port PoE
- Standard 1U height, rack mounted switch
- Support four modes of Standard, Priority, Extend and VLAN
- Single port output power 30W, maximum output power 230W
- 16×Gigabit PoE+ RJ45 ports,2×Gigabit RJ45 ports,and 2×SFP slots
TEG1120P-16-250W is a gigabit Unmanaged Ethernet PoE switch designed by Tenda. The switch provides 16 gigabit PoE ports, 2 uplink gigabit RJ45 ports and 2 SFP ports. It supports the IEEE 802.3af/at standard and can automatically detect PDs and supply power. The maximum output power of a single port is 30W, and the power of the whole switch is 250W. It supports rack mounting, one-toggle settings, plug and play, and simple networking. It is an ideal choice for SMBs, hotels, schools, and parks with video surveillance and wireless networking requirements.
Specification
Hardware
Network standards: IEEE 802.3; IEEE 802.3u; IEEE 802.3ab; IEEE 802.3x; IEEE 802.3af; IEEE 802.3at
LED Indicator: Power; Link/Act; PoE MAX
Interfaces: (18) 1GE RJ45 ports; (2) 1GE SFP ports
Transmission media: Recommended: CAT5/5e UTP or better
Fan quantity: 1
Dimension: 440mm*178mm*44mm
Level of protection: Port: 6 KV; Power：6 KV
Forwarding mode: Store-and-forward
Switch capacity: 40Gbps
Packet forwarding rate: 29.8Mpps
Buffer: 4Mb
MAC address table: 8K
PoE budget: Single port: AF: 15.4W, AT: 30W; Whole device: 230W
Power consumption: 250W
Input voltage: 100-240V AC，50 / 60Hz
Mounting: Rack mounting : support; Desktop mounting: support; Wall mounting: support
Environment: Operating Temperature: 0℃~45℃; Storage Temperature: -40℃~70℃; Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing
Certification: FCC, CE, RoHS
Software
Funtions: One-key to change network mode:
1.Standard: All ports can communicate with each other. It can be used as a common non-management PoE switch.
2.Priority: Ports 1 to 8 are high-priority ports, which greatly reduce packet loss and congestion when the network is congested.
3.Extend: The maximum transmission distance of the 9-16 ports of the switch can reach 250 meters, and all ports can communicate with each other.
4.VLAN: Ports 1 to 16 cannot communicate with each other, but can communicate with ports 17, 18, SFP1 (19), and SFP2 (20), which can be used to isolate broadcast storms and DHCP conflicts.
