• 8-Channel Live View and 4K HDMI Video Output
• 8× 10/100 Mbps PoE+ Ports with 53 W PoE Budget
• Up to 8-ch @ 2MP (25fps) / 4-ch @ 4MP (25fps) Decoding Capability
• 8-Channel Synchronous Playback
• 80 Mbps Incoming Bandwidth and 60 Mbps Outgoing Bandwidth
• 1 SATA Interface (up to 16 TB)
• H.265+ Compression Technology
• HDMI and VGA Simultaneous Output
• Remote Monitoring
Video and Audio
IP Video Input: 8-Channel
Incoming Bandwidth: 80 Mbps
Outgoing Bandwidth: 60 Mbps
HDMI Output Resolution: 1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
VGA Output Resolution: 1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
Video Output Mode: HDMI/VGA Simultaneous Output
Multi-View Display: 1/4/6/8
DECODING
Audio Compression: G.711A/G.711U/G.726
Video Compression: H.265+/H.265/ H.264+/H.264
Record Resolution: 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback: 8-Channel†
Capability:
• 25fps:
2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP
• 30fps:
4-ch @ 3MP, 2-ch @ 5MP
Record Management
Record Mode: Manual Recording, Scheduling Recording, Motion Detection Recording
Playback Mode: Instant Playback, Regular Playback, Tag Playback, Event Playback
Backup Mode: Regular Backup, Video Clip Backup
Playback Function: Play, Pause, Stop, Fast Forward, Fast Backward, Play By Frame, Full
Screen, Video Clip, Export Clip, Digital Zoom, Lock Recording, Audio On/Off
NETWORK
Protocol: UPnP (Plug and Play), NTP (Network Timing)
Mobile Phone Access: Android, iOS
Web Browser: Chrome (57+), Firefox (52+), Edge (91+)
Interoperability: ONVIF Profile S/T, CGI

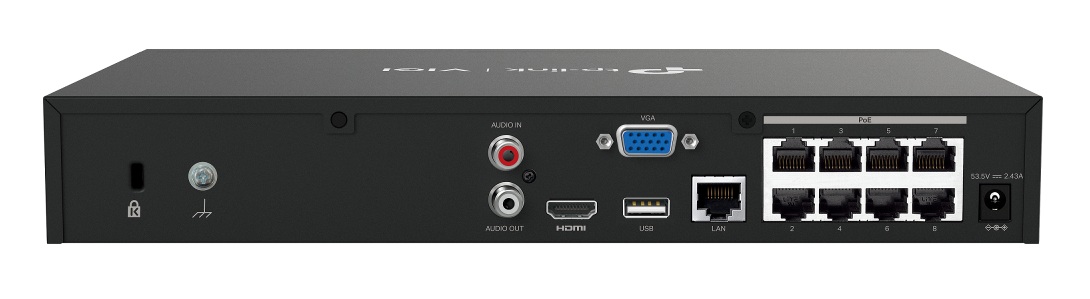

External Interface
Network Interface: 1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
USB Interface: 2× USB 2.0
Audio Interface: 1-ch RCA Input; 1-ch RCA Output
Alarm In/Out: N/A
Serial Interface: N/A
Power: 1× DC Jack
Reset Button: 1
Speaker: N/A
eSATA: N/A
HDMI: 1
VGA: 1
HARD DISK
SATA: 1 SATA Interface
Capacity: Up to 16 TB Capacity for Each HDD*
PoE
Standard: 802.3at/af Compliant
Interface: 1- 8, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
PoE Budget: 53 W△ Available for All PoE+ Ports, 30 W Max per Port
Alarm
General Alarm:
• Motion Detection
• Video Tampering
• Scene Change Detection
• Line-Crossing Detection
• Intrusion Detection
• Region Entering Detection
• Region Exiting Detection
• Loitering Detection
• Object Abandoned/Removal Detection
• Vehicle Detection
• Human Detection
• Abnormal Sound Detection
• Smart Frame
Note: The alarm function requires the use of a camera.
Anomaly Alarm:
• Video Loss
• Offline and IP Conflict
• Disk Exception
• Login Exception
Note: The alarm function requires the use of a camera.
Alarm Linkage:
• Recording
• White Light Alarm
• Buzzer
• Log
• Audible Alarm
Note: The alarm function requires the use of a camera.
GENERAL
Storage Temperature: -40–70 °C
Storage Humidity: 10%~90% RH Non-Condensing
Package Content:
• VIGI Network Video Recorder
• Power Adapter
• HDD Screws
• Mouse
• Mounting Brackets & Rubber Feet
• Quick Installation Guide
Working Temperature: NVR: -10–55 °C
Power Adapter: 0–40 °C
Working Humidity: 10%~90% RH Non-Condensing
Dimensions( W X D X H ): 294 × 180 × 44 mm
Net Weight: 1.12 Kg
Gross Weight: 2.06 Kg
Power Supply: 53.5V DC/1.31A
Max. Power Consumption: 2.38 W (without disk)
12.94 W (with disk)
Certifications: CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI
