• HomePlug AV2 Standard - Provides fast powerline transfer speeds of up to 600 Mbps
• 300Mbps Wi-Fi - Extend 300 Mbps wireless connections to previously hard-to-reach areas of your home and office
• Plug and Play - Set up your powerline network and start enjoying fast, seamless wired/wireless connections in minutes
• 2 Ethernet Ports - The TL-WPA4220 (Wi-Fi extender) provides reliable high-speed wired connection for game consoles, smart TVs and more
• One-Touch Wi-Fi Configuration - One press of the Wi-Fi button copies the network name and password from your router. Any setting changes will be automatically applied to the entire Powerline network
• Wi-Fi Auto-Sync - Add additional extenders to your powerline network by pair button, uniformly sync settings such as SSID, password, Wi-Fi Schedule and LED Schedule for all network devices
• Easy Management - Gives you easy control of your network through a powerful web interface, the user-friendly tpPLC Utility and the intuitive tpPLC mobile app
HARDWARE FEATURES
Transmission Speeds:
• Powerline: up to 600 Mbps
• Ethernet: 10/100 Mbps
Standards and Protocols: HomePlug AV2, IEEE 1901, IEEE 802.3, IEEE 802.3u, IEEE 802.11b/g/n
Compatibility: Compatible with all HomePlug AV & AV2 standard powerline adapters
Plug Type: EU
Interface:
• TL-WPA4220: 2 Ethernet Ports
• TL-PA4010: 1 Ethernet Port
Button: Pair, Reset, Wi-Fi Clone
Max. Power Consumption:
• TL-WPA4220: Maximum: 5.6W, Typical: 5.2W
• TL-PA4010: Maximum: 2.6W, Typical: 2.3W
LED: Power, Powerline, Ethernet, Wi-Fi
Dimensions ( W x D x H ):
• TL-WPA4220: 2.1 x 1.6 x 3.7 in (54 × 40 × 94 mm)
• TL-PA4010: 2.0 × 1.1 × 2.6 in (52 × 28.5 × 65 mm)
Range: Up to 300 meters/1000 feet over existing electrical wiring
SOFTWARE FEATURES
Management Features:
• TP-Link tpPLC App
• Or download new tpPLC Utility on PCs: www.tp-link.com/support/download.
Modulation Technology: OFDM (PLC)
Encryption:
• Powerline Security
• 128-bit AES Encryption
• Wireless Security:
• WPA-PSK / WPA2-PSK, WEP Encryptions
OTHER
Network Services Enabled by Default: Web Server
Manage and configure device through web (HTTP/HTTPS)
• Port: 80/443 Protocol: TCP
DHCP Server
IP address assignment (DHCP)
• Port: 67 Protocol: UDP
Onemesh management
Onemesh Configuration (Synchronization & Communication)
• Port: 20001 Protocol: TCP
• Port: 20002 Protocol: UDP
App management
Manage and configure device through app
• Port: 1040 Protocol: UDP
OTHERS
Certification: CE, RoHS
Package Content:

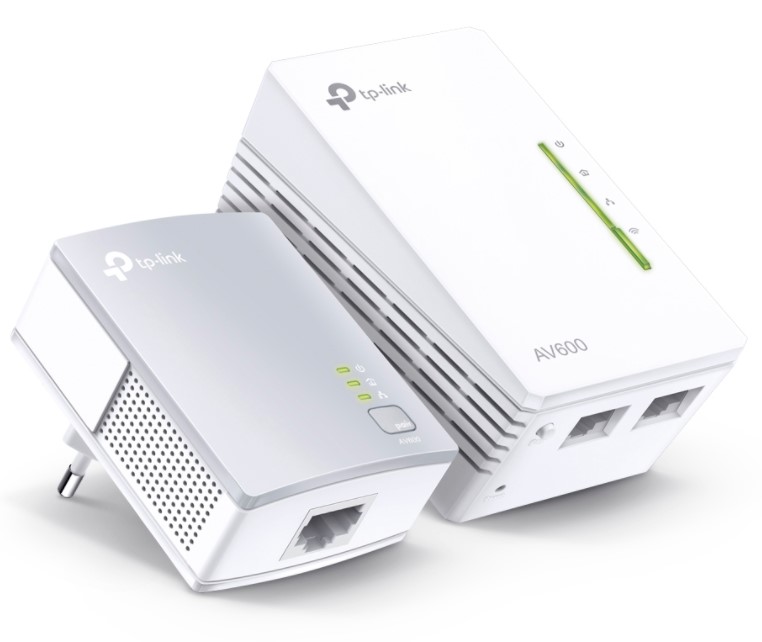

• AV600 Powerline Wi-Fi Kit: TL-WPA4220 & TL-PA4010
• 2× Ethernet Cables
• 1× Quick Installation Guide
System Requirements: Windows 10/8.1/8/7/Vista/XP, Mac OS, Linux
Environment:
• Operating Temperature: 0°C~40°C (32°F~104°F)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
