2.780,00 ден.
24 рати x 123,00 ден.
- 599877157
- 24 месеци
- Мрежа, алати, кабли и адаптери

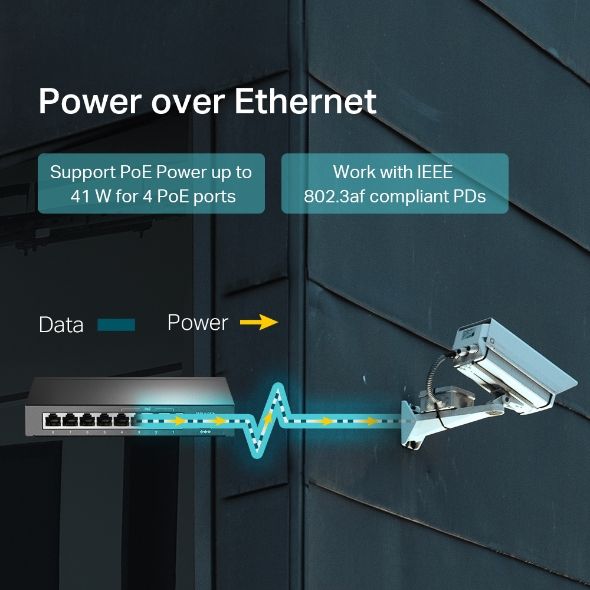

• 4× 10/100 Mbps PoE+ ports with up to 30 W PoE output per port*
• 41 W total PoE budget*
• Up to 250m data and power transmitting range under Extend Mode**
• Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application.
• Automatically reboots your dropped or unresponsive PoE-powered devices.
• Simply plug and play for instant connectivity with no configuration required.
• Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses.
• Desktop / Wall-mounting
Specifications
HARDWARE FEATURES
Interface:
• 8× 10/100 Mbps RJ45 Ports (Ports 1–4 support 802.3af/at PoE)
• AUTO Negotiation
• AUTO MDI/MDIX
Network Media:
• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity: Fanless
Physical Security Lock: Yes
External Power Supply: External Power Adapter (Output: 53.5 V DC / 0.81 A)
Packet Forwarding Rate: 1.1904 Mpps
PoE Ports (RJ45):
• Standard: 802.3 af/at compliant
• PoE Ports: Ports 1–4
• Power Supply: 41 W
Mac Address Table: 2K
Jumbo Frame: 2 KB
Switching Capacity: 1.6 Gbps
Dimensions ( W x D x H ): 6.7 × 3.9 × 1.1 in (171 × 98 × 27 mm)
Max. Power Consumption:
• 2.2 W (220 V/ 50 Hz. no PD connected)
• 47.1 W (220 V/ 50 Hz. with 41 W PD connected)
Max Heat Dissipation:
• 7.5 BTU/h(no PD connected)
• 160.61 BTU/h(with 41 W PD connected)
SOFTWARE FEATURES
Advanced Features:
• Extend Mode: Ports 1–4
• Priority Mode: Ports 1–2
• PoE Auto Recovery: Ports 1-4
• Compatible With IEEE 802.3af Compliant PDs
• Mac Address Auto-Learning and Auto-Aging
• IEEE802.3x Flow Control for Full-Duplex Mode and Backpressure for Half-Duplex Mode
Transmission Method: Store-And-Forward
OTHERS
Certification: FCC, CE, RoHS
Package Content:
• TL-SF1008LP
• Power Adapter
• Installation Guide
Environment:
• Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
Повеќе информации
• 41 W total PoE budget*
• Up to 250m data and power transmitting range under Extend Mode**
• Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application.
• Automatically reboots your dropped or unresponsive PoE-powered devices.
• Simply plug and play for instant connectivity with no configuration required.
• Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses.
• Desktop / Wall-mounting
Specifications
HARDWARE FEATURES
Interface:
• 8× 10/100 Mbps RJ45 Ports (Ports 1–4 support 802.3af/at PoE)
• AUTO Negotiation
• AUTO MDI/MDIX
Network Media:
• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity: Fanless
Physical Security Lock: Yes
External Power Supply: External Power Adapter (Output: 53.5 V DC / 0.81 A)
Packet Forwarding Rate: 1.1904 Mpps
PoE Ports (RJ45):
• Standard: 802.3 af/at compliant
• PoE Ports: Ports 1–4
• Power Supply: 41 W
Mac Address Table: 2K
Jumbo Frame: 2 KB
Switching Capacity: 1.6 Gbps
Dimensions ( W x D x H ): 6.7 × 3.9 × 1.1 in (171 × 98 × 27 mm)
Max. Power Consumption:
• 2.2 W (220 V/ 50 Hz. no PD connected)
• 47.1 W (220 V/ 50 Hz. with 41 W PD connected)
Max Heat Dissipation:
• 7.5 BTU/h(no PD connected)
• 160.61 BTU/h(with 41 W PD connected)
SOFTWARE FEATURES
Advanced Features:
• Extend Mode: Ports 1–4
• Priority Mode: Ports 1–2
• PoE Auto Recovery: Ports 1-4
• Compatible With IEEE 802.3af Compliant PDs
• Mac Address Auto-Learning and Auto-Aging
• IEEE802.3x Flow Control for Full-Duplex Mode and Backpressure for Half-Duplex Mode
Transmission Method: Store-And-Forward
OTHERS
Certification: FCC, CE, RoHS
Package Content:
• TL-SF1008LP
• Power Adapter
• Installation Guide
Environment:
• Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
Повеќе информации
