3.980,00 ден.
24 рати x 176,00 ден.
- 599883744
- 24 месеци
- Мрежа, алати, кабли и адаптери
• 8× 10/100/1000 Mbps RJ45 ports.
• 4× PoE+ ports transfer data and power on individual cables.
• Works with IEEE 802.3af/at compliant PDs.
• Plug and Play, no configuration and installation required.
• 802.1p/DSCP QoS enable smooth latency-sensitive traffic.
• Supports PoE power up to 30 W for each PoE port.
• Supports PoE power up to 64 W for all PoE ports.
• Up to 250m data and power transmitting range under Extend Mode
• PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
Specifications
HARDWARE FEATURES
Interface:

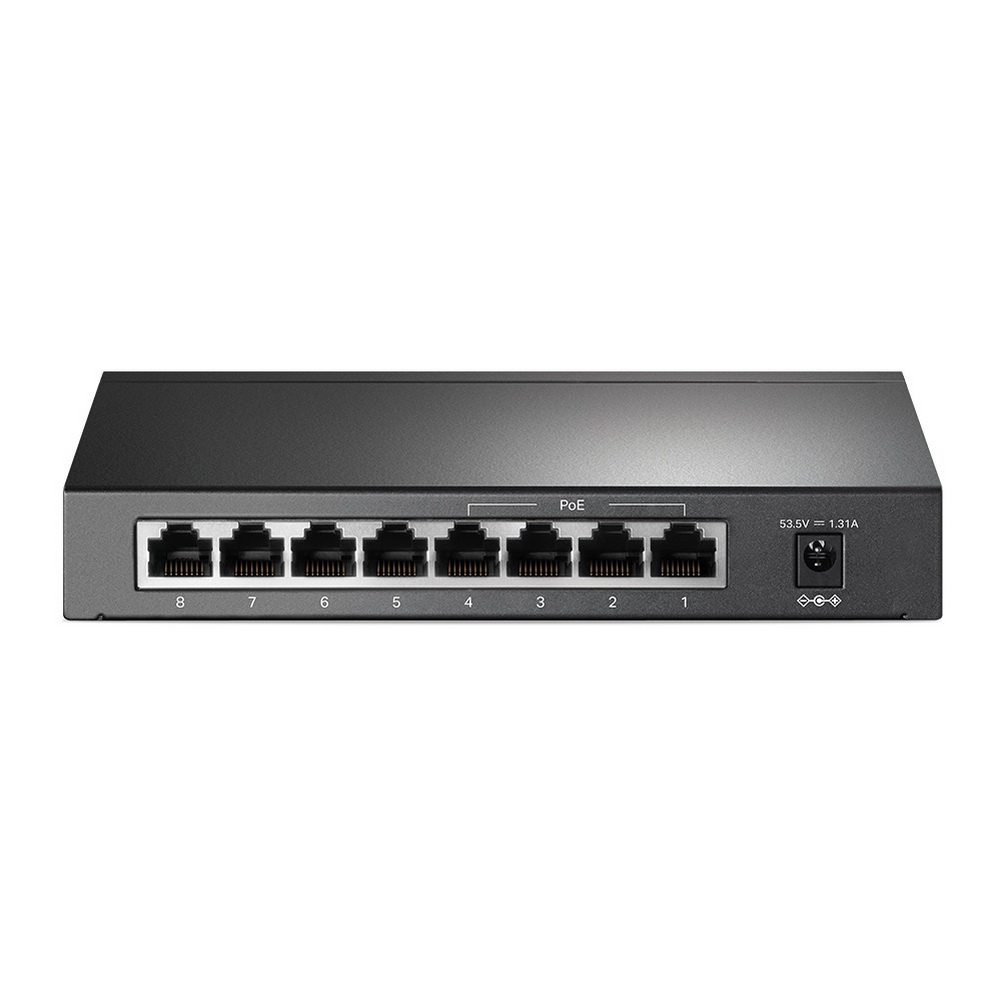

• 8× 10/100/1000 Mbps RJ45 Ports
• AUTO Negotiation
• AUTO MDI/MDIX
Network Media:
• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity: Fanless
Physical Security Lock: Yes
External Power Supply: External Power Adapter(Output: 53.5VDC / 1.31A)
Packet Forwarding Rate: 11.904 Mpps
PoE Ports (RJ45):
• Standard: 802.3 af/at compliant
• PoE Ports: Ports 1–4
• Power Supply: 64 W
Mac Address Table: 4K
Jumbo Frame: 16 KB
Switching Capacity: 16 Gbps
Dimensions ( W x D x H ): 6.7×3.9×1.1 in (171×98×27 mm)
Max. Power Consumption:
• 4.7 W (220/50 Hz no PD connected)
• 74.39 W (220/50 Hz with 64 W PD connected)
Max Heat Dissipation:
• 16.03 BTU/h (no PD connected)
• 253.67 BTU/h (with 64 W PD connected)
SOFTWARE FEATURES
Advanced Features:
• Compatible With IEEE 802.3af/at Compliant PDs
• IGMP Snooping
• Mac Address Auto-Learning And Auto-Aging
• IEEE802.3x Flow Control
• 802.1p/DSCP QoS
• Extend Mode Button (Ports 1–2, Up to 250 m PoE power supply and data transmission)
• PoE Auto Recovery (Ports 1-4)
Transmission Method: Store-And-Forward
OTHERS
Certification: CE, FCC, RoHS
Package Content:
• TL-SG1008P
• Power Adapter
• Installation Guide
Environment:
• Operating Temperature: 0–40 ℃ (32–104 ℉);
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
